Mushroom Type Extract Oil Tank

Mushroom Type Extract Oil Tank thumbnail-1
Mushroom Type Extract Oil Tank photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
WANYUAN
Contact Supplier Request Quote Chat Now
Wenzhou Longwan Wan Yuan Food Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name WANYUAN
Model Number ZTQA series
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Details about cone type extracting tank:



Usage:

  1. Cone type extracting tank is used widely in leaching extractiong in pharmaceutical and chemical industries,as well as in food processing industry;
  2. It is a kind of mulitiple-use equipment,designed for boiling and extraction working procedure.In this procedure the equipment can extract,recover alcohol,separate naphtha.

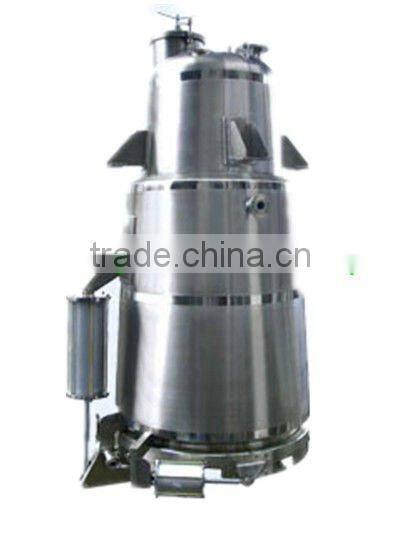

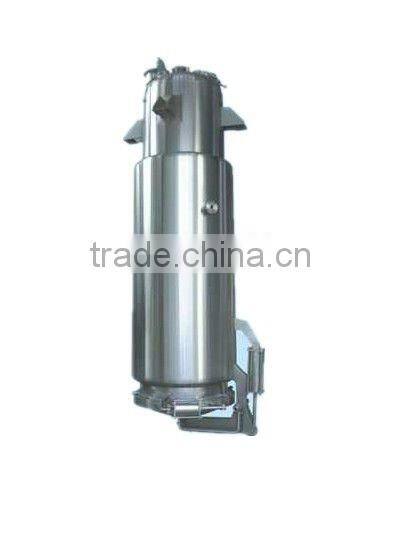

  3. Four types----mushroom-type extractor,oblique-cone-type extractor,straight-type extrator,straight-cone-type extractor.

Merits:

  1. Made of sanitary stainless steel,non-corrosive,anti-acid,anti-alka;
  2. With CIP cleaning system,conforming to GMP standard;
  3. High efficiency,convenient to operate,easy to install,long useful life,energy-saving,sanitary standard.

Main technical parameters:

Model ZTQA-1 ZTQA-2 ZTQA-3 ZTQA-6 ZTQA-8 ZTQA-10
Volume (L) 1200 2300 3200 6300 8500 11000
Pressure in tank (MPa) 0.09 0.09 0.09 0.09 0.09 0.09
Interlayer pressure (MPa) 0.3

0.3

 0.3 0.3 0.3 0.3
Charging hole diameter (mm) 400 400 400 500 500 500
Heating area (m²) 3 4.7 6.8 10 12 15
Condensation area (m²) 4 5.5 8 10 15 18
Cooling area (m²) 1 1 1 2.2 2.2 2.2
Filtration area (m²) 0.25 0.25 0.25 0.30 0.30 0.36
Run-off feeder diameter (mm) 800 800 800 1000 1000 1000
Steam consumption (kg/h) 285 346 570 718 903 1140
Water consumption (T/h) 2.1 2.5 4.2 4.5 6.7 8.3
Weight (kg) 1800 2050 2400 3025 4030 6500
Hot steam pipe (mm) DN-50 DN-50 DN-60 DN-60 DN-80 DN-80
Second steam pipe (mm) DN-80 DN-80 DN-100 DN-100 DN-100 DN-100
Motor power (kw) 2 3 4 5.5 7.5 7.5
Agitator rate (ppm/min) 21 21 32 32 32 32







Mushroom Type Extract Oil Tank

Mushroom Type Extract Oil TankMushroom Type Extract Oil TankMushroom Type Extract Oil TankMushroom Type Extract Oil Tank
