PLC control water spray type retort sterlization manufacture from China
How to use wanyuan sterilizer retort autoclave
1. WATER FILLING
Prior to the start of the process, the retort is filled with a small volume of process water (approx. 27 gallons/basket) such that the water level is below the bottom of the baskets. This water can be used for successive cycles if desired, as it is sterilized with each cycle.
2. HEATING
Once the cycle is begins, the steam valve opens and the circulation pump is switched on. retort autoclave steriliztion equipment for glass botles he mixture of steam and water spraying from the top and the sides of the retort vessel creates highly turbulent convection currents that rapidly homogenizes the temperature at every point in the retort and between the containers.
3. STERILIZATION
Once the programmed sterilization temperature has been reached, it is held for the programmed time within +/- 1º F. wenzhou wanyuan offer meat can retort steam spray retort autoclave Similarly, the pressure is kept within +/- 1 psi by adding and venting compressed air as needed.
4. COOLING
At the end of the sterilization step, the retort switches into cooling mode. As the process water continues to be circulated through the system, a portion of it is diverted through one side of a plate heat exchanger. wenzhou wanyuan offer fresh milk retort sterilzer, At the same time, cold water passes through the other side of the plate heat exchanger. This
results in the process water inside the retort chamber being cooled in a controlled fashion.
5. END OF CYCLE
Once the retort is cooled to the programmed temperature setpoint, the cold water inlet valve on the heat exchanger closes and the pressure inside the retort is automatically relieved. wenzhou wanyuan offer best price sterilizer retort for glass jar a pouch The water level is lowered from the maximum down to the medium level. The door is equipped with a safety
locking device which prevents the opening of the door in the case of residual pressure or high water level.
sterilizer retort steam spray

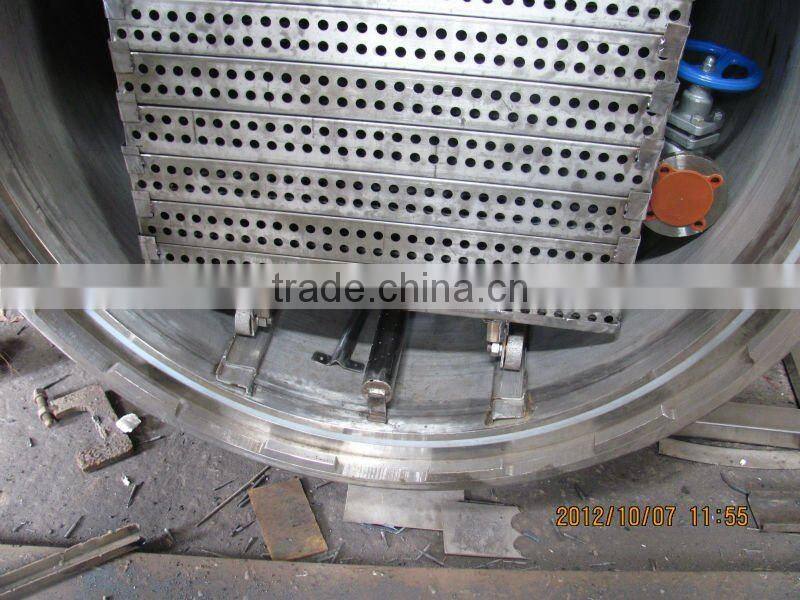

sterilization baskets and trolley all made of stainless steel

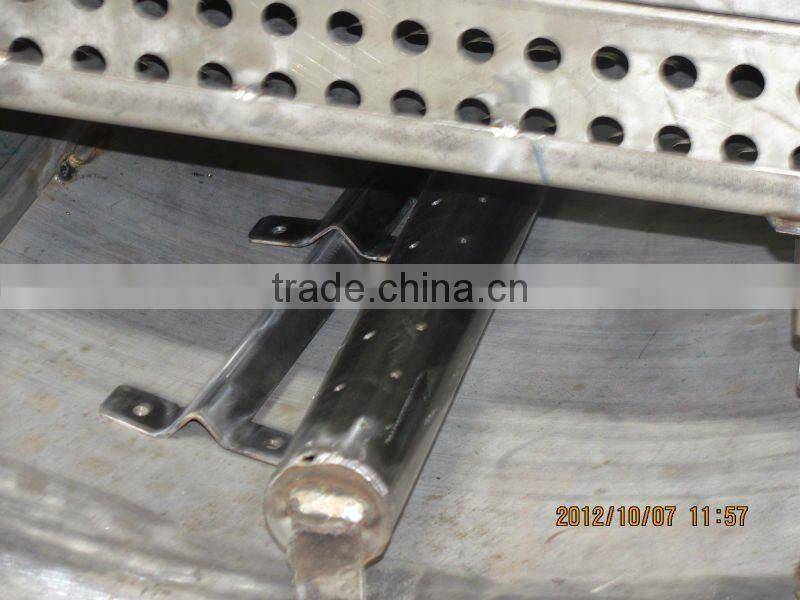

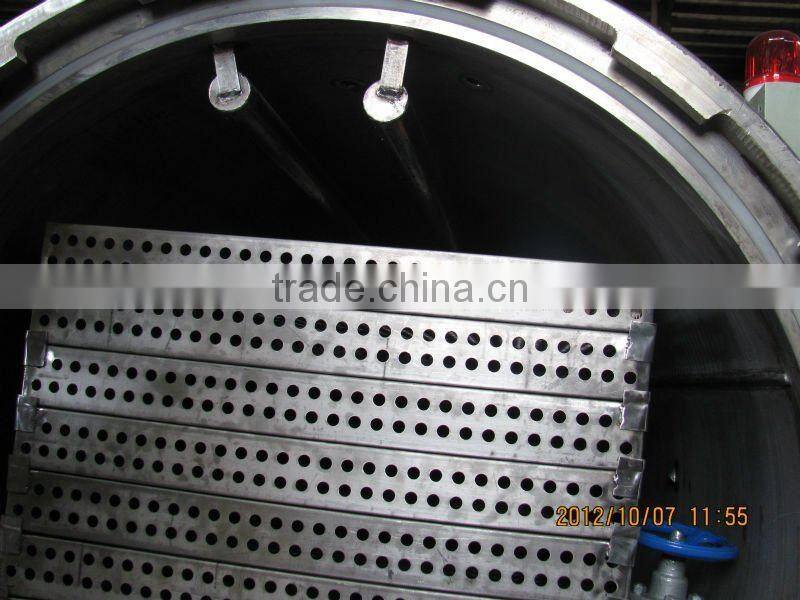

the inner side of the retort autoclave -- the sterilization baskets

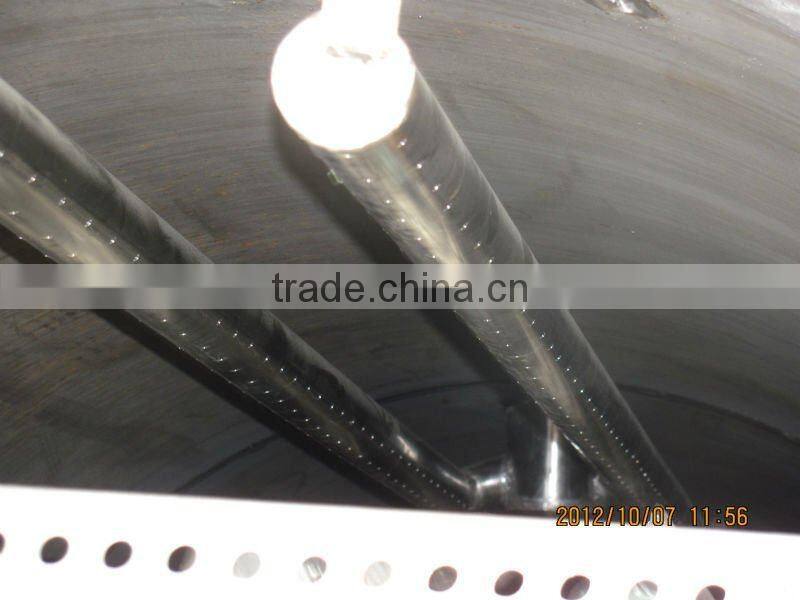

upper side of the inner equipment retort
for more detil information about out cheaest RETORT STERILIZER AUTOCLAVE,
please contact usfeely

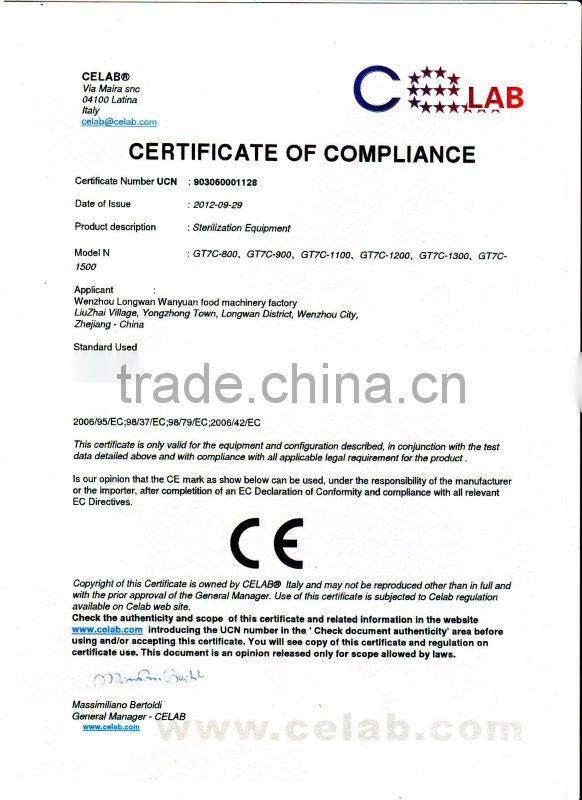

our certificate CE ISO
