Help CenterElectric Heating Sterilizer Retort for Meat in Tin Can Autoclave Sterilizer
Related Products
-
Water Spray Sterilizer Retort for Glass JarsUS$ 4,800 - 12,000MOQ: 1 Set -
Water Spray Sterilizer Retort for Tin Can Retort SterilizerUS$ 4,800 - 12,000MOQ: 1 Set
-
Retort Sterilizer / Sterilizer Retort Autoclave Counter Pressure SterilizerUS$ 4,000 - 19,000MOQ: 1 Set
-
Small Size Sterilizer Lower Cost Sterilizer Canned Fish SterilizerUS$ 4,800 - 9,800MOQ: 1 Set
-
Canned Food Sterilizer RetortUS$ 4,800 - 9,800MOQ: 1 Set
food sterilizer retort for meat in glass jar sterilizer and tin can retort
tin can retort tin can sterilizer retort sterilizer
glass jar sterilization equipment
mean in tin can sterilizer machine
food sterilizer retort for meat in glass jarsterilizer and tin can retort
tin can retort tin can sterilizer retort sterilizer
glass jar sterilization equipment
mean in tin can sterilizer machine
automatic sterilizer stea heating or hot water heating , used to sterilization of meat in glass bottle and glass jar
food sterilizer retort for meat in glass jarsterilizer and tin can retort
tin can retort tin can sterilizer retort sterilizer
glass jar sterilization equipment
mean in tin can sterilizer machine

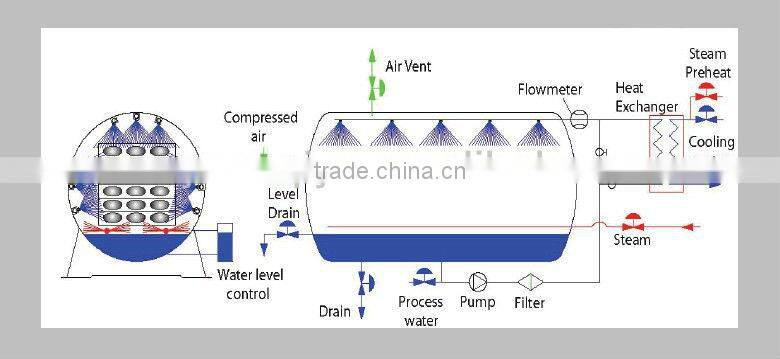

WATER SPRAY sterilizer autoclave WORKING PRINCIPLE
FEATURES
• sterilizer retort Excellent temperature distribution
• sterilizer retort Continuous process water
recirculation
• autoclave sterilizer retort Powerful steam and waterspray
heating
• sterilizer retort Efficient cooling
• sterilizer retort Top spray for cans or glass jars
• Side spray for trays or pouches
• sterilizer retort Continuous water level control and flow monitoring
• Programmable air-overpressure control
• Steam and water consumption minimal
how does the sterilizer retort autoclave work?
1. WATER FILLING sterilizer retortautoclave
Prior to the start of the process, the retort is filled with a small volume of
process water (approx. 27 gallons/basket) such that the water level is below
the bottom of the baskets. This water can be used for successive cycles if
desired, as it is sterilized with each cycle.
2. HEATING sterilizer retortautoclave
Once the cycle is begins, the steam valve opens and the circulation pump is
switched on. The mixture of steam and water spraying from the top and the
sides of the retort vessel creates highly turbulent convection currents that
rapidly homogenizes the temperature at every point in the retort and
between the containers.
3 STERILIZATION sterilizer retortautoclave
Once the programmed sterilization temperature has been reached, it is held
for the programmed time within +/- 1º F. Similarly, the pressure is kept
within +/- 1 psi by adding and venting compressed air as needed.
4. COOLING sterilizer retortautoclave
At the end of the sterilization step, the retort switches into cooling mode. As
the process water continues to be circulated through the system, a portion of
it is diverted through one side of a plate heat exchanger. At the same time,
cold water passes through the other side of the plate heat exchanger. This
results in the process water inside the retort chamber being cooled in a
controlled fashion.
5. END OF CYCLE sterilizer retortautoclave
Once the retort is cooled to the programmed temperature setpoint, the cold
water inlet valve on the heat exchanger closes and the pressure inside the
retort is automatically relieved. The water level is lowered from the
maximum down to the medium level. The door is equipped with a safety
locking device which prevents the opening of the door in the case of residual
pressure or high water level.
PLC control type automatic sterilizer retort autoclave with CE certificate
buy best price sterilizer retor from manufacture in China
best price sterilizer sterilization equipment on sell manufacture of sterilizer
sterilizer retorta utoclave manufacture
