vertical pouch packing machine,packaging system
Features
1. High precision structure for simple and easy operation and repairing.
2. Single-chip CPU,step-motor,easy and accurate to set the bag length.
3 .Own simple circuitry and outstanding function.
4 .Be able to complete the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.
5 .Selecte device: bag-linking device.
Specification of different models
| Model | ZV-420 | ZV-520 | ZV-720 |
| Film width | max.420mm | max.520mm | max.720mm |
| Bag length | 80-300mm | 80-350mm | 100-500mm |
| Bag width | 60-200mm | 100-250mm | 180-350mm |
| Weighing range | 10-3000g | 10-3000g | 10-3000g |
| Measuring range | 150-1500ml | 2000ml | 4000ml |
| Packaging speed | 5-60bags/min | 5-60bags/min | 5-55bags/min |
| Power | 220V 2KW | 220V 3KW | 220V 3KW |
| Machine size | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm |
| Machine weight | 650kg | 680kg | 750kg |
Machine device
Application
Can be applied in grain and puffy food like:bean,sugar,salt,spice,tea,peanuts,rice,tea,snack,potato chips,dumplings,small candy,detergent powder,dry agent,etc.

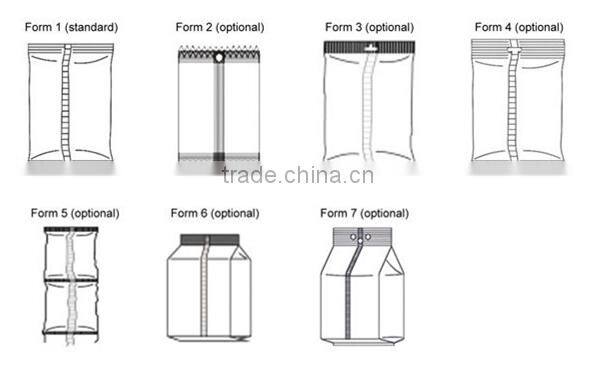

Bag type
Optinal spare parts
1.Air compressor
2.Finished product conveyor
3.Checkweigher
4.Metal detector
5.Nitrogen-making machine
Optional function devices
1. Hole punch device
2. Tear notch device
3. Bag-linking control device
4. Air exhaust device
5. Nitrogen inflation device
6. Liquid pump device for packing liquid material
Kindly reminder
Please tell us the following information when you send us an inquiry.Base on your message,we will suggest the optimum machine or options to you for reference.Thank you.
1. Bag dimension
2. Bag weight
3. Filling material
4. Bag shape
5. Bag material
After Sales Service
The machine will have one year of warranty.During the warranty period,if any part of machine is broken not by man-made.We will replace it with the new one freely for you.The warranty date will begin since the machine be sent out upon we receive the B/L.
Company Information
Coretamp Packaging Machinery Co.,Ltd
Founded in 2007,is an enterprise with the main line of designing,manufacturing,technical services and sales of
automatic packing machine.Our machines are widely applied in extensive industries such as food,medicine,
chemical,hardware,commodity,liquid,powder,granule,etc.As a tenet to create a famous brand of all over the world,
we pay more attention to upgrade the product quality and company image.Our products have been sold all over
the country and exported to more than sixty countries such as the United States,Canada,Malaysia,Australia,Russia,
Thailand,Brazil,India,Colombia,Ukraine,New Zealand,Turkey,the Middle East,South America,etc.
