small granule pouch packaging machine
- 150 Set / Sets per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Bags, Film, Pouch |
Packaging Material: | Paper, Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V | Power: | 2.2KW | Place of Origin: | Guangdong, China |
Brand Name: | Coretamp | Model Number: | ZV-320A | Weight: | 300kg |
Dimension(L*W*H): | 970*680*1950mm | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

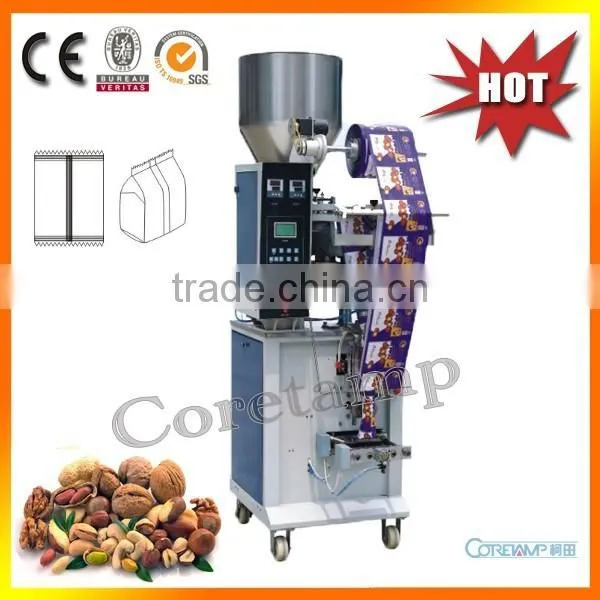

small granule pouch packaging machine
Features
1. High precision structure for simple and easy operating and repairing.
2. Single-chip CPU,step-motor,easy and accurate to set the bag length.
3 .Own simple circuitry and outstanding function.
4 .Be able to complete the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.
5 .Selecte device: bag-linking device.
Specification of different models
Type | ZV-320A | ZV-380A | ZV-420C | ZV-520C |
film width | 120-320mm | 180-380mm | max.420mm | max.520mm |
bag length | 50-200mm | 60-280mm | 80-300mm | 80-350mm |
bag width | 50-150mm | 60-180mm | 60-200mm | 100-250mm |
Range of measurement | 50-500ml | 50-750ml | 150-1500ml | 2000ml |
Film roll diameter | max.300mm | max.320mm | max.320mm | max.320mm |
Packaging speed | 35-70bags/min | 35-70bags/min | 5-60bags/min | 5-60bags/min |
Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW |
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm | 1217*1015*1343mm | 1488*1080*1490mm |
Machine weight | 300kg | 450kg | 650kg | 680kg |

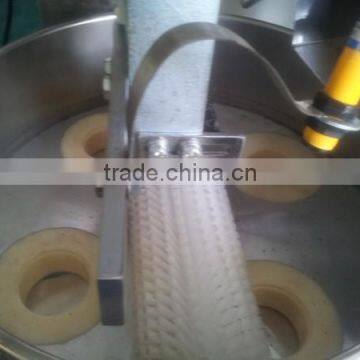

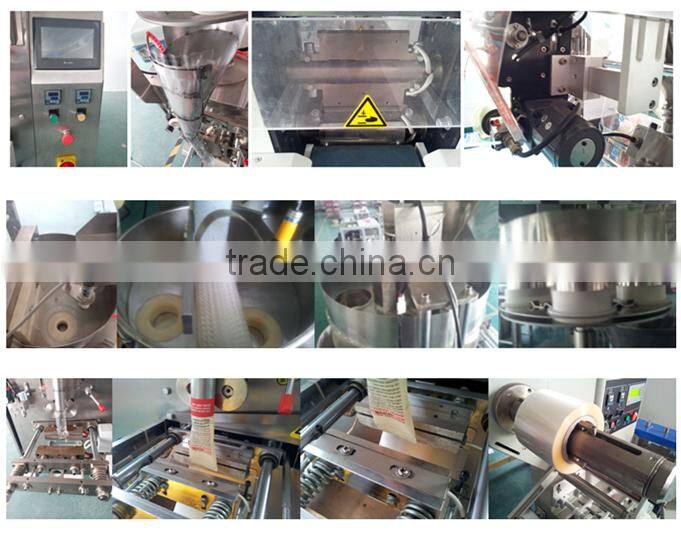

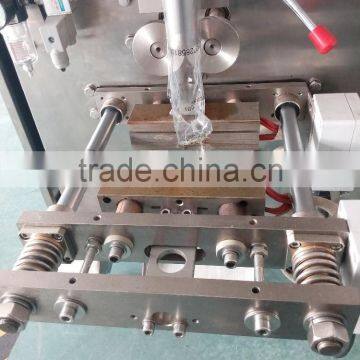

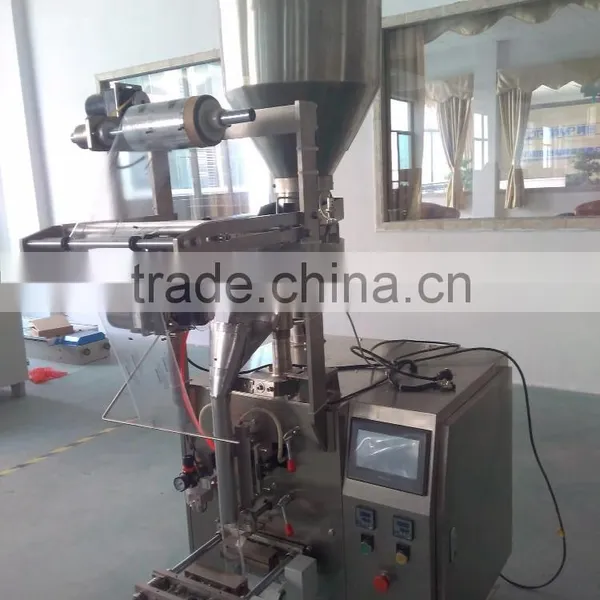

Machine details
Application
Suitable for automatic packaging grain,puffed food,dried fruit,beans,seeds,sugar,salt,spice,peanuts,rice,tea,snack,potato chips,dumpling,detergent powder,drying agent,etc.

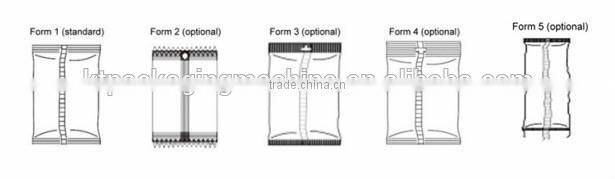

Bag Type
Optinal spare parts
1.Air compressor
2.Finished product conveyor
3.Checkweigher
4.Metal detector
5.Nitrogen-making machine
Optional function devices
1. Hole punch device
2. Tear notch device
3. Bag-linking control device
4. Air exhaust device
5. Nitrogen inflation device
6. Liquid pump device for packing liquid material
Kindly reminder
Please tell us the following information when you send us an inquiry.Base on your message,we will suggest the optimum machine or options to you for reference.Thank you.
1. Bag dimension
2. Bag weight
3. Filling material
4. Bag shape
5. Bag material
Payment and delivery
Payment:30% in advance,70% in balance by T/T before delivery of cargo.
Delivery time: 15-25 days after receipt of 30% advance deposit.
After Sales Service
The machine will have one year of warranty.During the warranty period,if any part of machine is broken not by man-made.We will replace it with the new one freely for you.The warranty date will begin since the machine be sent out upon we receive the B/L.

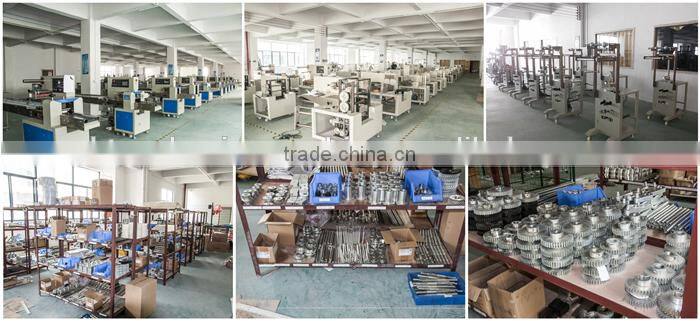

Company Information
Coretamp Packaging Machinery Co.,Ltd
Founded in 2007,is an enterprise with the main line of designing,manufacturing,technical services and sales of automatic
packing machine.Our machines are widely applied in extensive industries such as food,medicine,chemical,hardware,
commodity,liquid,powder,granule,etc.As a tenet to create a famous brand of all over the world,we pay more attention
to upgrade the product quality and company image.Our products have been sold all over the country and exported to
more than sixty countries such as the United States,Canada,Malaysia,Australia,Russia,Thailand,Brazil,India,Colombia,
Ukraine,New Zealand,Turkey,the Middle East,South America,etc.
Our certificates
Contact Us
- Foshan Coretamp Packaging Machinery Co., Ltd.
- Contact nameMina Cai
- Phone86-0757-82566726
- AddressBuilding F2 of New Lighting Source Industrial Base, Luocun, Nanhai District, Foshan City, GD, China Foshan,Guangdong
