The wine fermenting tank is a product developed by our company according to the wine fermenting tank technology from abord.
The equipment is mainly composed of top,top material distributing device,cooling jacket part,liquid level observation part,conical bottom part,
bottom residue scraping mechanism,residue discharging device,wine storage and wine internal circulating system etc.
which they will show in production drawing before production.
Specification:
1.Material: SUS304/SUS316L
2.Volume: 200L~20,000L larger
3.Winery system, wine fermentation tank
Equipment:
♦ Drain port DKE2”TRI CLOVER(tanks 500GAL and 1000GAL )or DKC2”TRI
CLOVER (TANKS 1500GAL and 2000GAL ) ♦ Packing port 2”TRI CLOVER ♦ Sample valve port 3/4”TRI CLOVER ♦Oval manway 310x440mm,the frame seamlessly formed out of the tank wall (tanks 500GAL)or oval manway ♦ Top manway 420mm ♦ Connection for thermometer 1/2”NPT ♦ Connection for probe 1/2”NPT ♦ Cooling jacket Vt h750mm 6bar ♦ Lifting rings ♦ Ladder hoider,width 410mm ACCESSORIES ♦ Sample valve 3/4”TRI CLOVER ♦Clamp 3/4”TRI CLOVER ♦Gasket 3/4”TRI CLOVER ♦ Pressure compensating valve DIN 50♦ Material:ALS 1316-tank;AISI304-OTHER PARTS
FORM:
Item: | Wine Fermentation tanks |
Place of Origin: | Zhejiang in China |
Model No: | WFT2110 |
Brand Name: | DF |
Material: | SUS304 or 316L |
Tank shell thickness: | 3mm or more |
Pressure(Mpa) : | Atmospheric pressure—Middle pressure |
Function: | Storage, cooling or fermentation tank |
Design temperature C-degree: | -5---80 |
Medium: | Various drinks including fruit wine, wine, and so on |
Tank surface: | The original surface of the stainless steel plate |
Operation plate form: | We can design the plate form if required |
General accessories: | Manhole, CIP, respirator, sight glass etc |
Payment Terms: | T/T |
Minimum Order: | 1 set/sets |
Supply Ability: | 150 set/sets/ month |
Package: | in standard wooden case packing |
Delivery Time: | 30 day |
Technical parameters: ID | | FW500GAL | FW750GAL | FW1000GAL | FW1500GAL | FW2000GAL |
| It | 2000 | 3100 | 4100 | 6000 | 7800 |
Gal | 538USGAL | 820USGAL | 1090USGAL | 1588USGAL | 2070USGAL | |
D | mm | 1110(44inch) | 1370(54inch) | 1580(63inch) | 1900(63inch) | 2050(63inch |
H | mm | 2000(79inch) | 2000(79inch) | 2000(79inch) | 2000(79inch) | 2250(79inch |
Z | mm | 2750(108inch) | 2750(108inch | 2750(108inch | 2750(108inch) | 3000(108inch |
N | mm | 350(14inch) | 350(14inch) | 350(14inch) | 350(14inch) | 350(14inch) |
M | ibs | 372 | 490 | 593 | 778 | 892 |

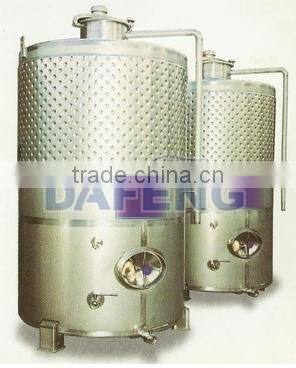

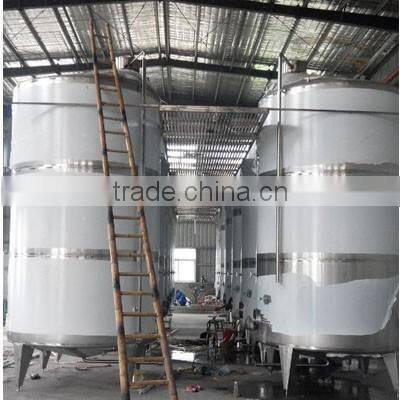

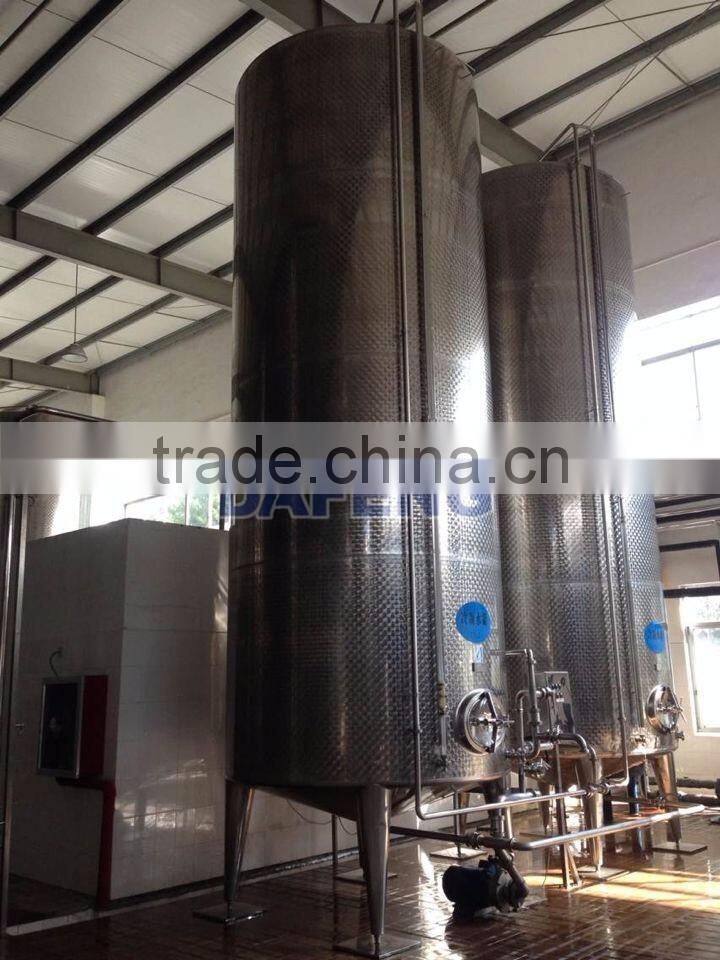

Product showcase:
advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Reactors,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Certifications
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,Saudi Arab and Asia etc.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shippment:
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
Packaging & Delivery Packaging Details:
1. Plywood Case 2. Strong and solid 3. Pallet underneath for easier container loading and unloading Inner Packing information : 1. PE film wrapping overall 2. Fittings are packed in separate PE bag. 3. Spare parts are provided in a bag. 4. Corners are well wrapped and protected with synthetic fiber paper to avoid possible scratch. Besides,we also welcome customers require packi Delivery Detail: 30 days after received the 30%payment
We can offer several payment methods which can ensure your capital’s security, such as the following:
L/C T/T D/A D/P
Western Union
MoneyGram
