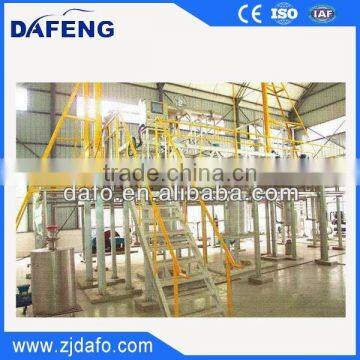

Ginseng Extraction 100% Supercritical CO2 Extraction machine

The supercriticalCO2 fluid extraction device was designed,first class extraction technique home and broad at present.

A.Brief Instroduction:
1.The extraction pressure can reach as high as 40Mpa. Extraction, separating and distillation temperature (indoor) can reach 80oC.The above mentioned data can be adjusted by the user.

2.Designed with one(1-24L) or several extraction pots (24-1000L) and separating pots integration.

3.Extraction and separating pots are of compact structure,easy to use,convenient to load and unload raw materials,

with a strong antifatigue capability and safe in use.It can be made according to the customer's need. Large equipment are fitted with safety chain device.

4.Sample can be obtained on line during operation and the extracted fluid sample can be analyzed to determine the elements content. CO2 can be used calculatedly and its flow volume can be indicated by flow meter.

5.Temperature in different section is show by digital or meter control system, which is easy to operate and control. Pressure double safety-guard device are formed with safety valves and anti-explosion pieces. Computer control system can be provided if necessary.

6.The whole equipment is made of stainless steel, attractive and durable. It is the ideal equipment for food and pharmaceutical industry. The technique of making some relevant agent will also be attached.

B.Main Technical Parameters

Remarks:

1.Ex for extraction pot;

2.S for separation pot;

3.D for distillation pipe;

4.&S for sampling on line.

Our Models of laboratary,pilot and industrial production type to your need.

Dafeng machinery of Models laboratary,pilot and industrial production type to your need.

Supercritical CO2 Fluid Extraction makes the extracted oil and powder will be 100% pure, without any impurity or heavy metal.

For examles,the technical could be used to extract effective compositon from chian-herbal-medicine,separate lipid compoud in compound in chemistry industry,and so on.The details as follows;1.It can achieve the biology active molecule,alkaloid and separating of the heebal materials2.It can be used in the microscopic organism lipoid,and it can recycle the lipoid,and remove the lipoid from glycoside and protein.3.It can extract various anti-cancer ingredients from many herbal materials,especially the extracted product pacilitaxel which extracted from yew skin,branches and leaves.4.Vitamin mainy on the extracting for VE 5.To extract all kinds pf active materials(natural or synthetic), and remove the un-need molecutle(for example it can remove the pesticide when extract the vegetables)or residue material,so that to get the purity materials.6.The manutacturing on various natural antiseptic or oxidation resistance extracting materials,such as basil,scarlet sage,thyme,garlic,onion,chamomile,chill powder,linquorice anise seed etc.
