Product Details
Condition: | New | Automatic Grade: | Automatic | Type: | Tank Reactor |
Place of Origin: | Zhejiang, China | Brand Name: | DF | Model Number: | DF-SK-206 |
Voltage: | 380 volt 50/60 Hz | Power(W): | 22KW | Dimension(L*W*H): | Accordingly |
Weight: | 50- 15000 Kgs | Certification: | CE,ISO9001 | Warranty: | 2 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

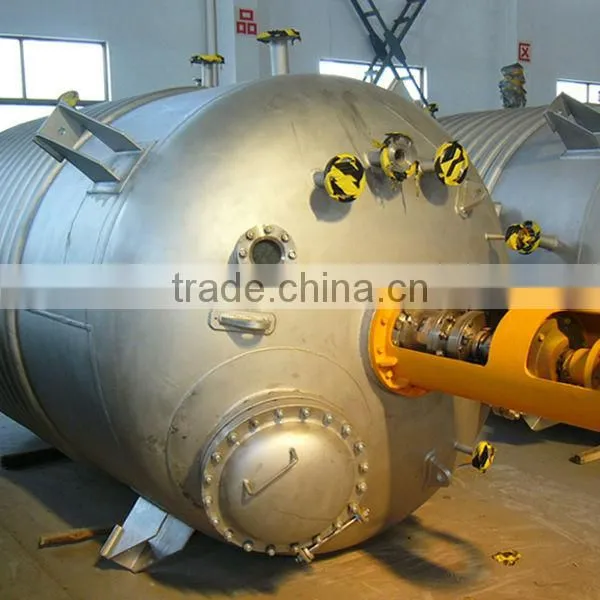

50~20000L Stainless Steel fermentation Reactor
1. jacket or outer circular pipe jacket
2. used in pharmacy, chemical project, fine chemicals and composed chemical industry.
3. The material adopts SUS304 or SUS316L. The pot body includes jacket, and the jacket structure is of standard jacket, outer circular pipe jacket.
4.It can be heated or cooled; the inner surface is mirror-polished, no sanitary dead angle, and closed design to ensure material in asepsis condition.
5. The agitator adopts sanitary mechanical seal, container insulation adopts polyurethane or alumina silicate, joint adopts ISO standard quick open clamp, sanitary and easy.
6. The machine equips with sight glass, and flange quick open manhole, charging holes, nozzles ect.
General Information
heating method:for small capcacity machine,usually electric is suitable,if more the fuel gas,oil,or coal is cheaper than electric,the suitable bolier we also can provide.
model:jacket and external pipe,Internal limpet coil or external.
material:inner plate SS304/316,pipe SS304/316 ,outer jacket carbon steel
agitator model:paddle agitator,anchor agitator,frame agitator.
specialized for :adhesive,Resin,Coating,Additive,Chemical etc
Power,Voltge,Frequency:Customized
experience and export:
Export :we have export this machine to Saudi Arabia,Russia, Romania,Peru, Brasil,American etc
we have do this machine manufature more than 15 years,have rich experience and mature technical design and export experiences.
Service:we can send engineer to help instal complete production line and guide produce
Capacity:50L-20000L, Lab model;50L,100L always used for laboratory test,bigger model like 500L,1000L,2000L,etc for industrial big scale manufacture.
I list general information as follows,please check them
model | nominal capacity L | Actual capacity L | Heating powerKW*strip | Oil clip of capacityL | Inner pot size Dmm | Jacket size D1mm | Bearing screw holes center D2mm | Stirring speed |
50L | 50 | 78 | 2*4 | 96 | Ø400 | Ø600 | Ø828 | 85 |
100L | 100 | 127 | 2*6 | 127 | Ø500 | Ø700 | Ø928 | 85 |
300L | 300 | 327 | 4*6 | 218 | Ø800 | Ø1000 | Ø1148 | 85 |
500L | 500 | 509 | 4*9 | 269 | Ø900 | Ø1100 | Ø1252 | 85 |
1000L | 1000 | 1017 | 4*12 | 400 | Ø1200 | Ø1400 | Ø1588 | 85 |
2000L | 2000 | 2154 | 4*15 | 850 | Ø1400 | Ø1600 | Ø1840 | 85 |
3000L | 3000 | 3201 | 5*15 | 1015 | Ø1600 | Ø1750 | Ø2040 | 85 |
4000L | 4000 | 4020 | 5*15 | 1226 | Ø1600 | Ø1750 | Ø2070 | 85 |
5000L | 5000 | 5170 | 5*18 | 1400 | Ø1800 | Ø2000 | Ø2320 | 85 |
Our Factory:
More than 20years history, has 45000m2 area, Located in Wenzhou city,Zhejiang or And JIangsu Province. Welcome your visiting.
We take the customer's demand as a starting point, support the Competitive price and best quality serve for customer.
Pls send your detailed inquiry, our Sales Engineer with contact with you at the earliest time.
Pictures:
