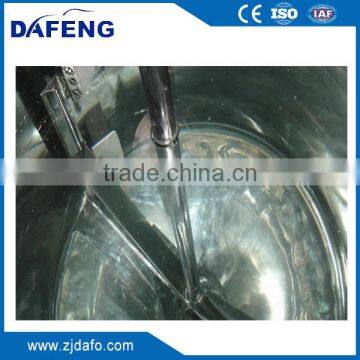

Name: stainless steel resin reaction kettle
Reaction kettles include reactors, reaction kettles, decomposition kettle, polymerizing pot etc. which are widely used in chemical engineering, light industry, dyes, medical, dyes, military industry and bio-engineering. We can produce 500L~30000L reaction kettles which are made from stainless steel304,316L etc. Reactor feature fast heating, good resistance to high temperature and corrosion, non-pollution and easy use. They are widely used in petroleum, chemical engineering, rubbers, pesticides, dyes, medicines and food.
Extensively used in chemical, pharmaceutical, dye-stuff, pesticide and food enterprises
Working Pressure:In the tank 1.6MPa
In the jacket 0.5MPa
Working Temperature:In the tank 0-200oC
In the jacket 0.6MPa
Design Temperature:200oC
Agitator Speed:85r/min

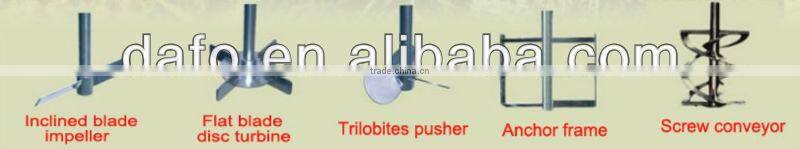

Agitator Model:Frame type
Technical
National Volume(L) | 300 | 500 | 1000 | 1500 | 2000 |
Actual Volume(L) | 370 | 588 | 1200 | 1750 | 2180 |
Area of Heat Exchange | 1.75 | 2.6 | 4.5 | 6.2 | 7.2 |
Airproof model | Padding airproof Mechanism airproof | ||||
Reductor Model | RT-3 | RT-5 | RT-10 | RT-15 |
|
1.Reliable quality and long time stable performane.
2.HIghly selected,high grade anti-corrosion Material of stainless steel,and configures.
3. It can equip with frequency inverter to get more various speed, with reducer to get low speed.
4. inside and outside of reactor is finishing polished, surface isvery smoothly, easy to clean.
5. According to different requirement, the reactor can be platformed or with legs on the floor
6. maintenance: there are manhole for big volume reactor, man can through manhole to maintenance or clean the reactor, if small volume reactor, with handhole or with gland head, the head is removable.
7. material: ss304 or ss316L stainless steel, for acid or corrosive, inside wall can coating atiseptic material.
8. Volume: from 50 litre to 200000 litre
9. Voltage: 380v, 60hz, 3phase ( can customized )
Volume (Litre) | Diameter (m) |
1000L | 1100m |
1500L | 1200m |
2000L | 1300m |
3000L | 1500m |
4000L | 1600m |
5000L | 1800m |
6000L | 1900m |
8000L | 2000m |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
