Product Details
Condition: | New | Automatic Grade: | Automatic | Type: | Tank Reactor |
Place of Origin: | Zhejiang, China | Brand Name: | Dafo | Model Number: | DF- RT |
Voltage: | 220/240/380 volt 50/60 Hz | Power(W): | 5KW-75KW | Dimension(L*W*H): | According Specific Requirement |
Weight: | 50-15000KGS | Certification: | CE,ISO9001 | Warranty: | 2 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

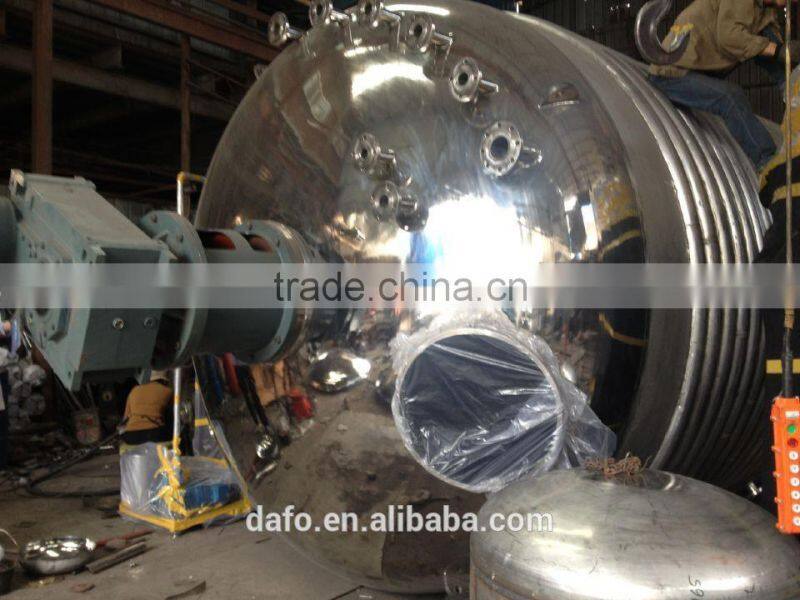

45 Ton Industrial batch reactor,chemical reactor
Usage:
traditional industry, food project,extraction,biological fermentation process and chemical industry.
SUMMARY:
The series of vessels are applicable to reaction and crystallization in chemical industry and pharmacy . the tank body is provided with two or three layers for heating and cooling .the interior surface adopts electrolytic mirror polishing .the seal head(round) is subjected to spinning process, and R angle transition is in accordance with GMP standard. The blending device adopts sanitary mechanical seal and the vessels adopts polyurethane or pearl cotton for heat preservation. the interface adopts flange type as per international standard, which is convenient and sanitary, the exterior surface adopts various forms of treatment such as polishing , sand blasting, grinding or cold rolling original color matte treatment, so that the vessels can display its prominent quality at any occasion, the device is equipped with CIP cleaning spray head, sight glass, flange type rapid open hole and other accessories.
Technical
Volume (Litre) | Diameter (m) |
1000L | 1100m |
1500L | 1200m |
2000L | 1300m |
3000L | 1500m |
4000L | 1600m |
5000L | 1800m |
6000L | 1900m |
8000L | 2000m |
product showcase:
Stirrer
High polishing Manhole
Half pipes-coiled jacket
6 support legs
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Reactors,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Certifications
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,Saudi Arab and Asia etc.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shippment:
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
Packaging & Delivery Packaging Details:
1. Plywood Case 2. Strong and solid 3. Pallet underneath for easier container loading and unloading Inner Packing information : 1. PE film wrapping overall 2. Fittings are packed in separate PE bag. 3. Spare parts are provided in a bag. 4. Corners are well wrapped and protected with synthetic fiber paper to avoid possible scratch.
We can offer several payment methods which can ensure your capital’s security, such as the following:
L/C T/T D/A D/P
Western Union
MoneyGram
