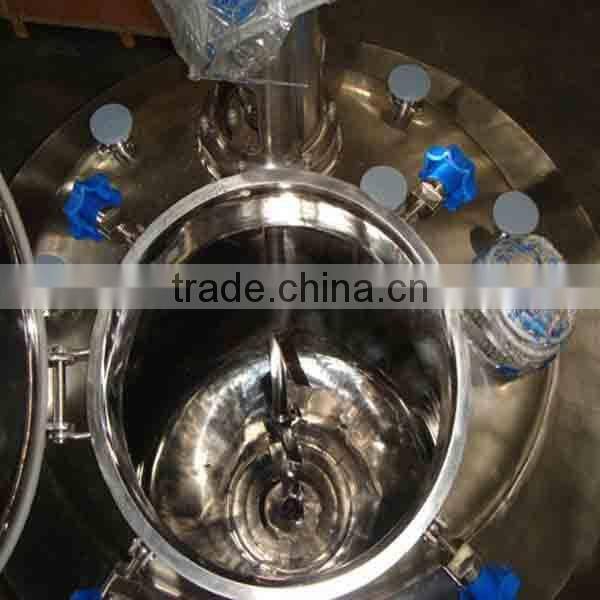

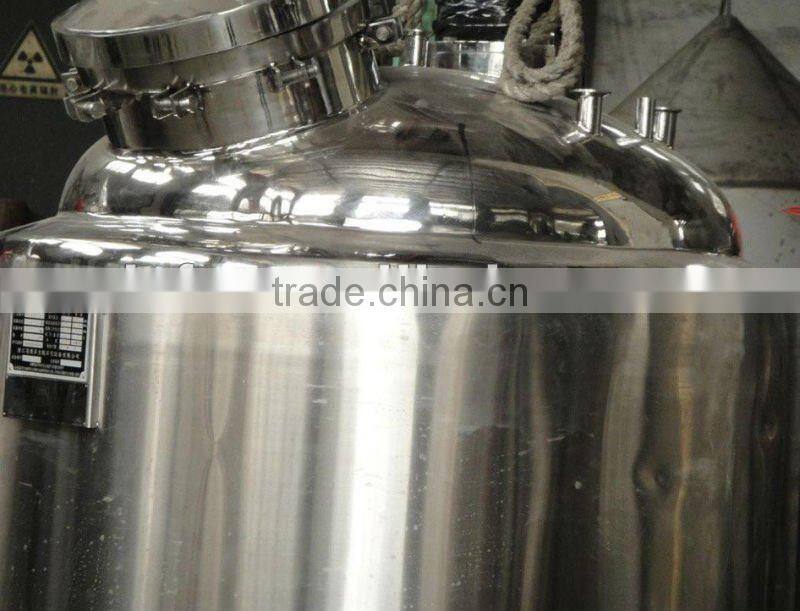

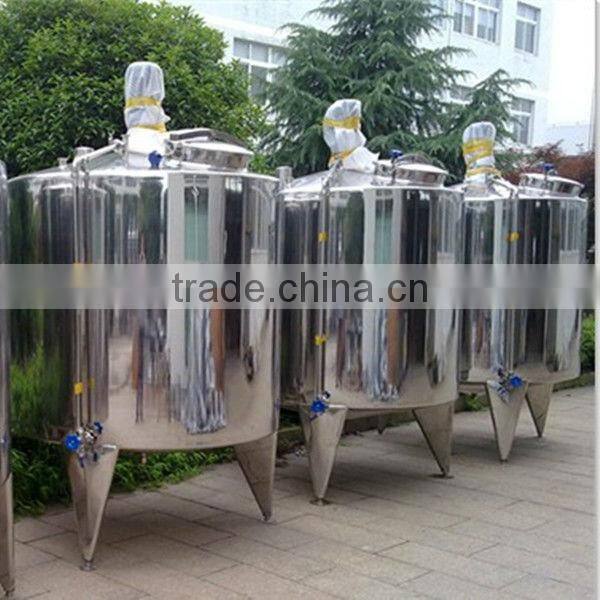

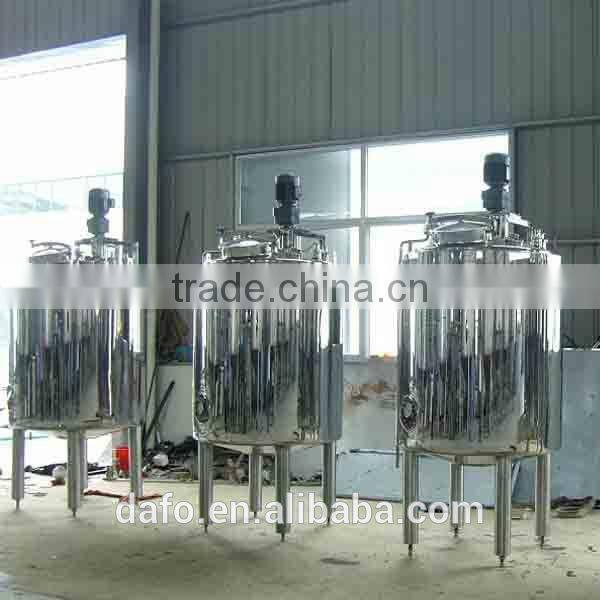

ISO 9001 Stainless Steel Steam Heating Detergent Shampoo Mixing Tank
- ningbo
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Mixer Type | Agitator | |
| Product Type | Other, Detergent Powder,shampoo | Application | Liquid | |
| Additional Capabilities | Milling | Place of Origin | Zhejiang, China | |
| Brand Name | Dafeng | Model Number | MT-1 | |
| Max. Loading Capacity | 5000L | Voltage | Customized | |
| Power(W) | customized | Dimension(L*W*H) | can be adjusted | |
| Certification | CE&ISO | Warranty | 2year |
Product Description
ISO 9001 stainless steel steam heating detergent shampoo mixing tank The series of liquid dispensing tanks strictly conform to the requirements in Article 31 and Article 31 in “Quality Management Specification for medicine Production“GMP General rules (revision in 1998) and are designed,manufactured and inspected according to the requirements of GB150-98”steel pressure Vessels”and JB/T4735-97”Steel welded Atmospheric pressure Vessels” Item name | Mixing tank ,mixer |
Material | Stainless steel 304/stainless steel 316L |
Application | Daily chemical care products, , pharmacy, food industry |
Product features
| 1) With CE,ISO,GMP standards 2) Low / high speed agitator 3) Frequency controller for adjusting stir speed 4) Vacuum, double jacketed 5) The range of volume is 500L-5000L 6) The pot could heat& cool the material, electric heating or steam heating 7) Agitator type to your requirements: blade, frame, scraper stirrer homogenizer |
Volume | Working pressure (Mpa) | Work.TEMP.(°C) | Agitation speed(rpm) | H(mm) | H1(mm) | D(mm) | D1(mm) | h(mm) |
100 | 0.25 | 100 | 0-720 | 1750 | 450 | φ750 | φ550 | 300 |
200 | 0.25 | 100 | 0-720 | 1950 | 600 | φ850 | φ650 | 300 |
600 | 0.25 | 100 | 0-720 | 2500 | 1000 | φ1100 | φ900 | 350 |
1000 | 0.25 | 100 | 0-720 | 2850 | 1200 | φ1300 | φ1100 | 350 |
2000 | 0.25 | 100 | 0-720 | 3350 | 1500 | φ1500 | φ1300 | 350 |
3000 | 0.25 | 100 | 0-720 | 3700 | 1700 | φ1700 | φ1500 | 350 |
5000 | 0.25 | 100 | 0-720 | 4250 | 2000 | φ2000 | φ1800 | 400 |
10000 | 0.25 | 100 | 0-720 | 5000 | 2500 | φ2500 | φ2300 | 400 |
Specification: 1 the heat preservation material of the vessel is high-temperate resistant and anti-aging polyurethane blister or pearl cotton. 2 the interface adopts internationally general ISO rapid installation chuck type product.the internal bladder adopts imported stainless steel SUS316L or SUS 304. the internal surface adopts mirror polishing unit RA less than 0.28um,and the external surface adopts polishing, mirror polishing,sandblasting ,cold rolling original color matte treatment.All of the above conform to GMP standard. 3 the selling of the blender adopts imported sanitary mechanical seal device,and the blending rotation speed is optional 4 the pipe mouth is provided with liquid meter vent (static pressure type,capacitance type,non-contact type ,ultrasonic type or glass tube type),air spiracle,thermometer(digital indication type or dial plate type) CIP cleaning vent,sight glass,anti-explosion view lamp(integrated sight glass and view type),SIP sterilization vent, liquid inlet and outlet ,sanitary manhole and etc. 5 the volume varies within the range of 100L-10000L ,or design and manufacturing can be made according to actual requirements of customers 6 the GMP certification document attached in the machine are avalible(including material report,certification of outsourcing parts,verification form and etc. Product Display




Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
