Product information
| A. | Stainless steel Mixing Tank |
| B. | Widely used for mixing of dairy products,liquid,sugar etc for food,beverage,chemical,pharmacy area. |
| C. | Have the advantages such as being energy saving,corrosion-proof,easy to clean etc |
| D. | The jacket can be used for heating or cooling,with external heat sulation as Rockwool. |

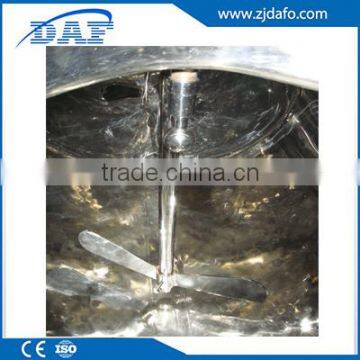

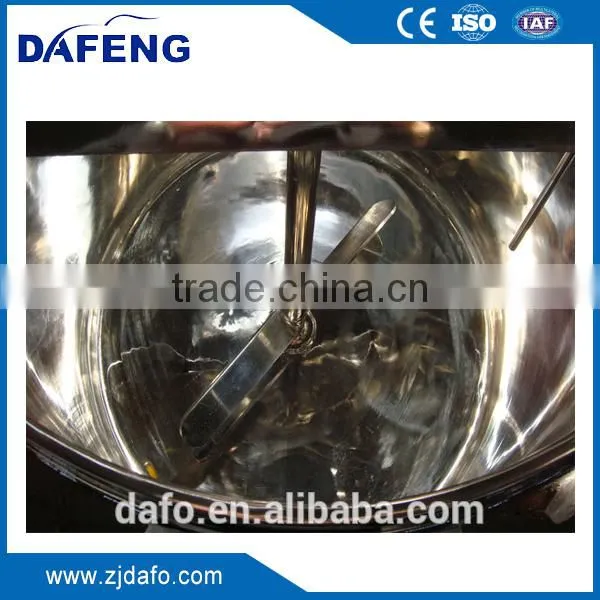

| E. | From different kind of agitator to choose-1,Ordinary Paddle,2,Anchor,3,Homogenizer agitator(used for high-viscosity lotions etc) |

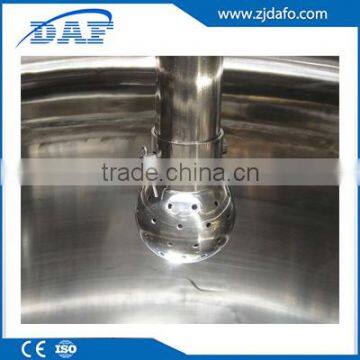

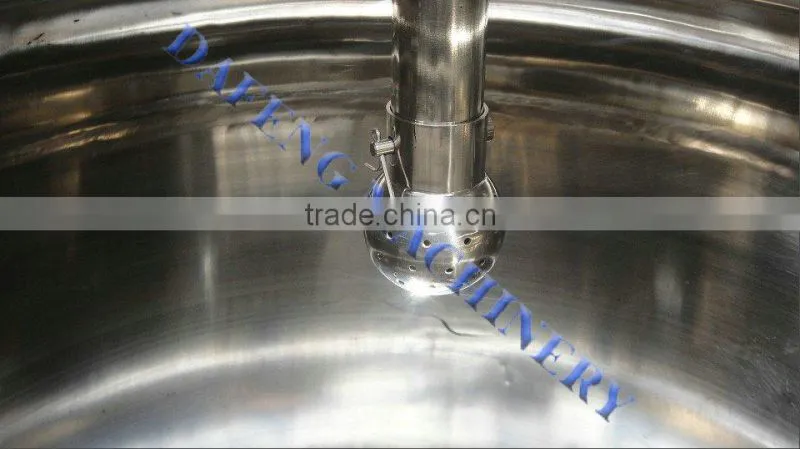

| F. | Accessories as one Thermometer,one Pressure Gauge,CIP cleaning automatic ball,manway,outlets with butterfly valves etc. |

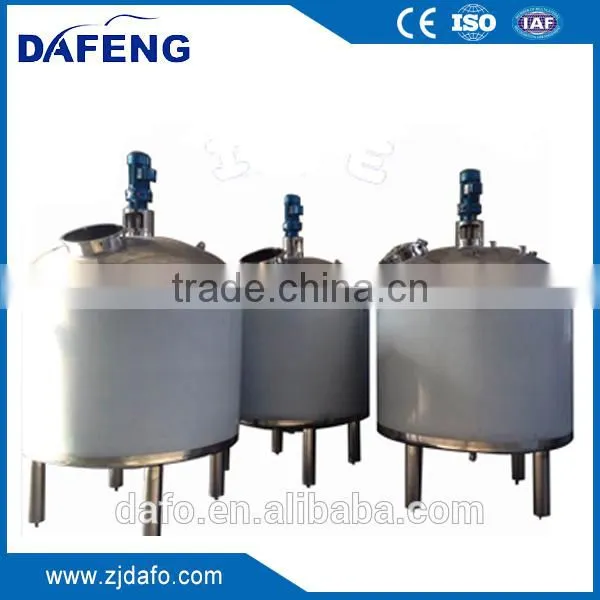

3 pieces of 1000L Stainless steel 316L Jacket Mixing Tank to Brazil,
Working princicle
The materials are heated and mixed with water or other liquid inside,in the process of blade-stirring,the materials are continuously crushed until into the desirable mixing effect you want,
besides,we can also provide you one Control box for Power on/off,Stirring on/off,Frequency inverter set,Tempeature set-pointed at a certain number,
heating stop automatically when reached that Degree.Cif you have more controllment to add just tell us before production.
Technical Parameter,
| Effective volume | Dimension | Total height | Diameter of inlet&outlet | Heat preservation layer | Motor power | Blending speed |
| (L) | (mm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
| 500 | 840*1000 | 2750 | 60 | 38 | 0.55 | Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available |
| 600 | 920*1000 | 2850 | 60 | 38 | 0.55 | |
| 700 | 990*1000 | 2850 | 60 | 38 | 0.55 | |
| 800 | 950*1220 | 3000 | 60 | 38 | 0.55 | |
| 900 | 1010*1220 | 3000 | 60 | 38 | 0.55 | |
| 1000 | 1060*1220 | 3150 | 60 | 51 | 0.75 | |
| 1500 | 1160*1500 | 3350 | 60 | 51 | 0.75 | |
| 2000 | 1340*1500 | 3410 | 60 | 51 | 1.1 | |
| 3000 | 1410*2000 | 4000 | 60 | 51 | 1.5 | |
| 4000 | 1620*2000 | 4250 | 60 | 51 | 1.5 | |
| 5000 | 1810*2000 | 4300 | 60 | 51 | 2.2 | |
| 6000 | 1980*2000 | 4550 | 60 | 51 | 2.2 | |
| 7000 | 1930*2440 | 5000 | 60 | 51 | 2.2 | |
| 8000 | 2060*2440 | 5000 | 60 | 51 | 3 | |
| 9000 | 2180*2440 | 5050 | 60 | 51 | 3 | |
| 10000 | 2300*2440 | 5050 | 60 | 51 | 3 | |
| 12000 | 2270*3000 | 5600 | 60 | 51 | 4 | |
| 15000 | 2530*3000 | 5700 | 60 | 51 | 4 | |
| 20000 | 2640*3660 | 6400 | 60 | 51 | 5.5 |
Product Display:
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients onestop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
