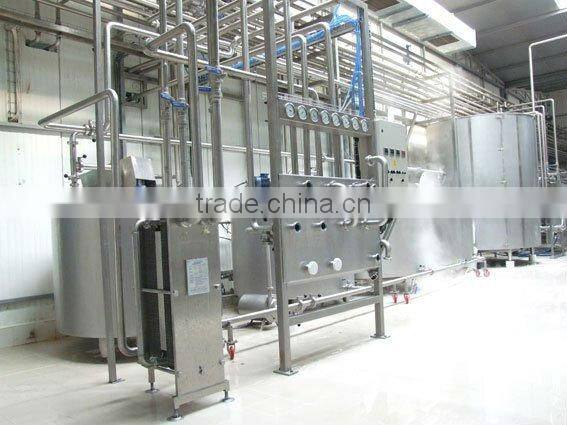

milk processing Plant / small milk processing plant / mini dairy plant
The small milk processing plant can produce several types of pasteurized milk products, i.e. whole milk, skimmed milk, standardized milk of various fat contents, meanwhile with options to produce yogurt, cheese, cream and butter etc.
The small milk processing plant uses fresh milk or milk powder as raw material, which normally be stored at low temperature about 4 or 5 degree, this method can maintain the nutrition at maximum.
End package form of this small milk processing plant can be plastic bag, plastic cup, plastic bottle, glass bottle, roof top box etc. Our enginner will design it according to your requirements since technical parameters and skills are different for different package form.
Description of dairy processing milk plant:
Product description:
| Raw material | fresh milk / milk powder |
| Capacity | 0.5~20Ton/h. |
| End product type | pasteuried milk; UHT milk |
| Packaging | plastic pouches, plastic cups, plastic bottles, glass bottles, pre-pak pouches etc |
| Shelf life of end product | different processing technology,differnt shelf life |
This Milk processing line according to different end product and package type, the production technology is differently designed.
Machine material: SUS304 / SUS316L
Sample list of milk poduction line
No. | Name | Power (kw) | Specification | Qty |
A pre-treatment &sterilizing system | ||||
A1 | Direct milk cooling tank | 2.2 | 2000L jacket type | 1 |
A2 | Mixing tank | 1.1 | 1000L warm keeping | 1 |
A3 | duplex filter | 000 | 200 mesh | 1 |
A4 | Plate pasteurizer | 4.40 | 1000L/h special for pasteurized milk | 1 |
A5 | homogenizer | 7.5 | 1000L/h 25MPa | 1 |
A6 | centrifugal pump | 1.50 | 5t/h 24m | 1 |
A7 | CIP return pump | 4.00 | 15t/h 18m self-suction | 1 |
A8 | Electrical control cabinet | 000 | Stainless steel (include control box) | 1 |
A9 | operating platform | 000 | Stainless steel
| 1 |
| subtotal | 20.7 |
|
|
B packaging system | ||||
B1 | Filling machine | 1.1 |
| 1 |
| subtotal | 1.1 |
|
|
C CIP cleaning system | ||||
C1 | CIP tank | 3.0 |
500LX3 Warm keeping
| 1 |
| subtotal | 3.00 |
|
|
D water treatment system | ||||
E1 | Pipe,valve | Material pipe sets | ||
For more information,pls feel free to contact me!
