Home > Products > Milk Cooling Tanks > Horizontal Enclosed Milk Cooling Machine&Milk chilling system

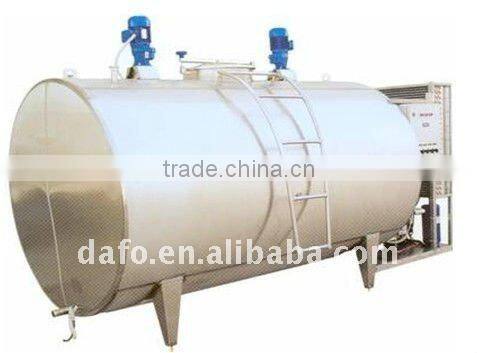

Horizontal Enclosed Milk Cooling Machine&Milk chilling system
- 90 Set / Sets per Month
- Shanghai or ningbo
- T/T
-
High Performance Small Yogurt Processing Plant / Milk Processing Packaging Plant Yogurt Production Line
-
High Efficiency Coconut Water Processing Line / Coconut Milk Production Line
-
Coconut Milk Production Line Yogurt Production Line Milk Processing Line
-
High Quality Soya Milk Making Processing Best Price Yoghurt Plant
-
High Efficiency Nut Milk Process Line with Best Sale High Quality Soya Milk Making Processing
-
Hot Sell Factory Automatic Complete Soymilk nuts milk processing line
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | DF |
Model Number: | MLM-10000 | Type: | Processing Line | Voltage: | 220/380v |
Power(W): | 1.1/2.2 | Weight: | accordingly | Dimension(L*W*H): | as per standard |
Certification: | CE,ISO9001 | Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
This machine can cool large area of the inside vessel surface,ultilizing the automatic computer control system to observe and operate, which can quickly lower the temperature to 4 and keep this constant temperature, preventing the growth of the germs. The refrigeration compressor unit shows good performance and energy-saving European Maneurop Dan Foss compressor, equipped with the creditable midpoint protector that will prevent the equipment from burn out caused by over-loading or system fault.
The heat preservation layer utilized the new technique of the anti-aging polyurethane foam; it owns the brilliant characteristics of heat insulation. The body of the tank (vessel) is made of high quality stainless steel material 304, equipped with automatic cleaning ball and mixing system.
- Capacity 5000 - 10 000 liters
- Geometry - full cylindrical horizontal (high capacity) and vertical (low capacity)
- Cooling temperature - 35C down to 4C
- Cooling tank body material - AISI 304 stainless steel
- Double wall
- Stainless steel Rollbond evaporator
- Perfect isolation with polyuerthane
- Digital thermometer
Details of this equipment
The name of equipment: milk cooling tank
Usage:cooling and storing milk or other liquid

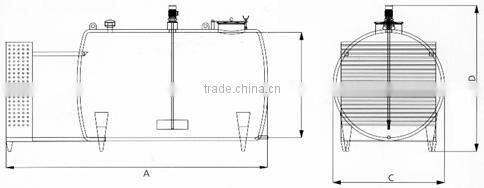

Model | Normal Volume (L) | Tank Body | Agitator Motor (kW) | Agitator Returning Speed (r/min) | |||
Length (mm) | Width (mm) | High (mm) | Weight (Kg) | ||||
-500 | 500 | 1360 | 1060 | 1360 | 510 | 0.75 | 25 |
-1 | 1000 | 1760 | 1260 | 1510 | 640 | 1.1 | 36 |
-2 | 2000 | 2000 | 1660 | 1800 | 880 | 1.1 | 36 |
-3 | 3000 | 2210 | 1860 | 1960 | 1120 | 1.1 | 36 |
-4 | 5000 | 3060 | 2015 | 2100 | 1620 | 1.1X2 | 41 |
-5 | 8000 | 3260 | 2060 | 2200 | 1740 | 1.1X2 | 41 |
-8 | 10000 | 2950 | 2300 | 2500 | 2170 | 1.1X2 | 41 |
Material:
1. tank:ss304 or ss316
2. insolation or temperature keeping:PU foam(50-80mm)
3. compressor:Danfoss/danfuss, maneuro
4. refrigerant:R404A or R22
Our advantage:
1. manufactured with interational advanced technology
2. high quality material
3. the world best compressor: Danfoss/danfuss, maneuro
4. equipped with cleaning ball and mixing system
5. dimple jacket
6. only take 2 or 2 and half hour to cool down milk from 35 to 4.
7. compressor and tank body can be separated installed
8. electical control panel:water resistant, electric shock resistance, wrong manipulation resist.

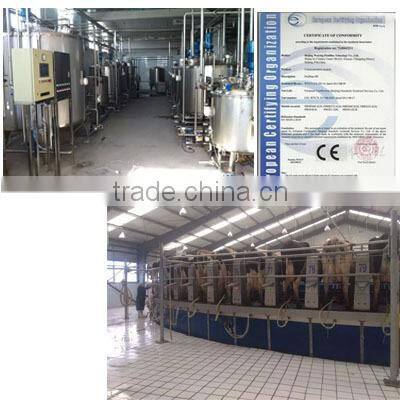

Photos
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
