Product Name:

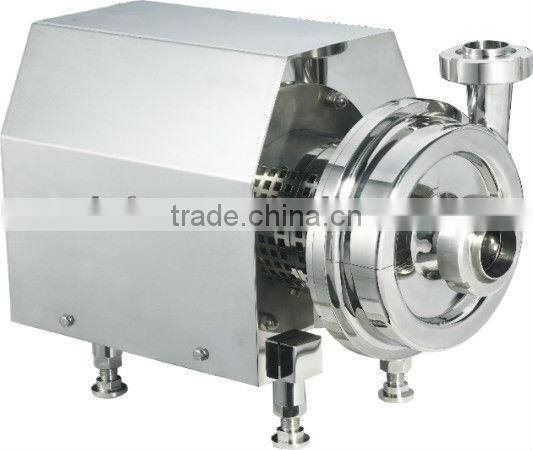

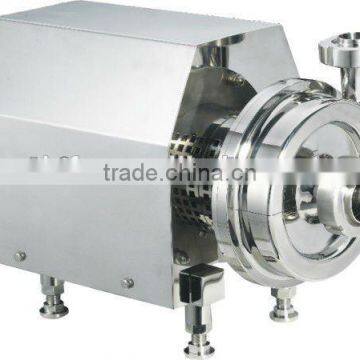

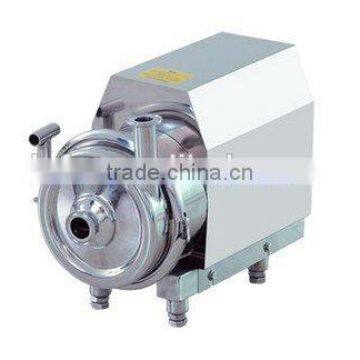

Sanitary Centrifugal Pump
Description:
This sanitary centrifugal pumps, with SUS316 and single mechanical seal, can be adopted for operaton of transporting sanitary fluids.
It can be easily dismantled and assembled for cleaning.
It also can be operated for CIP(cleaning in place).
Features:
- The sanitary centrifugal pump 158 type has light and compact design.
- Motor adopts totally-enclosed fan cooled outdoor type as standard, enabling equipping high-safety explosion-proof type and frameproof explosion-proof type.
- Centering is not required since the sanitary centrifugal pump shaft and motor shaft are made into one unit.
- The impeller of centrifugal pumps is used of an open type.
- It has beautiful appearance and durability since pump cover is made of stainless steel.
- The discharge port can be set in any direction since the body cap is installed by clamping.
- The sanitary centrifugal pump 158 type can be easily dismantled and assembled for cleaning.
- The mechanical seal used is made of silicon carbide, which features its long life
Specification:
Maximum discharge pressure:2.8kg.
- Maximum discharge quantity:32m3/h.
- Temperature of transported liquid:0~140oC(No freezing).
- Product wetted part material:316.
- Motor capacity:0.4~2.2kW.
- Inlet/discharge port fittings:ferrule(please make inquiry as for other fittings).
- Surface finish:inside 0.4μM / outside 1.0μM.
- Pump base:adjustasble bolt type.
- Safety Approval:
- Solution contact part electropolishing finish.
- Explosion-proof motor.
- local voltage motor.
Other Description:
- Food:Syrup,Salt solution
- Dairy:Milk,Soy milk,Fermented milk
- Beverages:Juice,Carbonated beverages,Cola,Cola syrup,Coffee,Green tea Sports drink.
- Alcoholic drink:Beer,Wine,Whiskey,Sweet sake,Liqueur.
- Cosmetics:Lotion,Pure water.
- Pharmaceuticals:Lotion,Pure water,Essence,Bottled nutriton drinks.

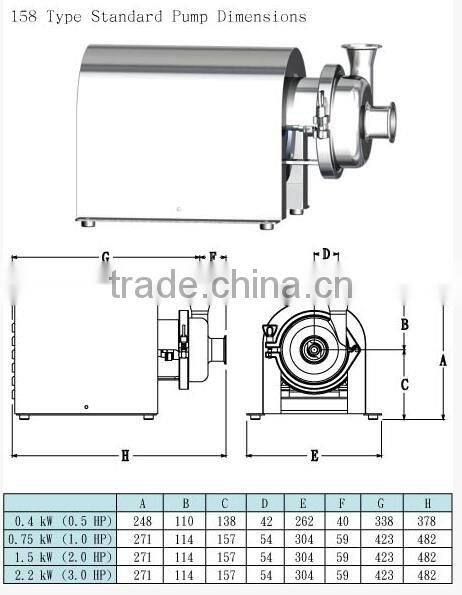

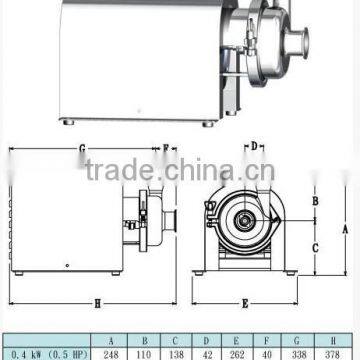

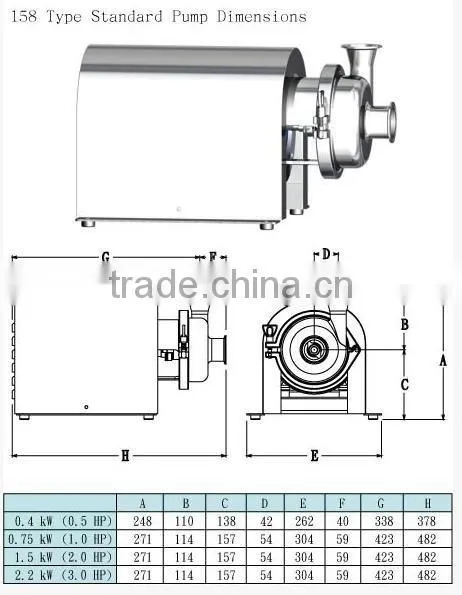

| A | B | C | D | E | F | G | H | |
| 0.4KW(0.5HP) | 248 | 110 | 138 | 42 | 262 | 40 | 338 | 378 |
| 0.75KW(1.0 HP) | 271 | 114 | 157 | 54 | 304 | 59 | 423 | 482 |
| 1.5KW(2.0 HP) | 271 | 114 | 157 | 54 | 304 | 59 | 423 | 482 |
| 2.2KW(3.0 HP) | 271 | 114 | 157 | 54 | 304 | 59 | 423 | 482 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
