Specifications
1.CE&ISO9001 certificate
2.5R-8Round housing
3.With stand 10bar pressure
4.Matt polished or mirror polished
5.Custom Made

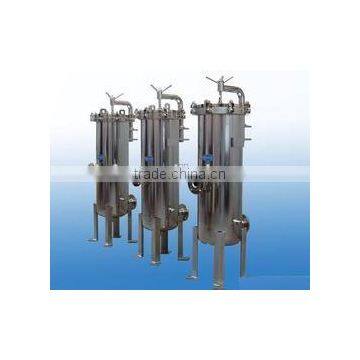

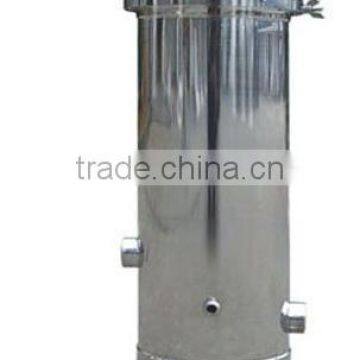

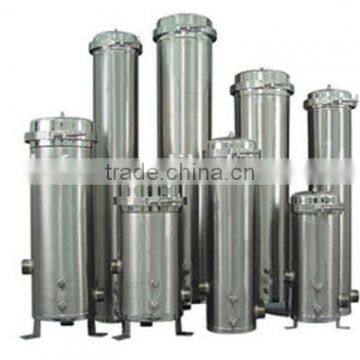

Industrical Cartridge filter is made up of cartridge, housing and fixing.
It can be match with the following filter cartridge: folding cartridge, metal mesh cartridge, microporous cartridge, winding cartridge.
Technology parameter:
1.Cartridge number: 1-7, length: 10",20",30" or 40"
3.Flow : 0.5~32 M3/h
4.Operating temperature: 120°C
5.Filter rate:0.1~150 μm
6.Quik open design
7.Material: SS 304,SS 316,SS 316L
Installation Parameter:
Cartridge number | A(mm) | B (mm) | C (mm) | D (mm) | F (mm) | E (inch) Inlet&outlet |
3X10" | 75 | 180 | 450 | 170 | 216 | 1"--1(1/2) " |
3X20" | 75 | 180 | 700 | 170 | 216 | 1"--1/(1/2)" |
3X30" | 75 | 180 | 950 | 170 | 216 | 1"---2 " |
3X40" | 75 | 180 | 1200 | 170 | 216 | 1"---2 " |
5X10" | 75 | 180 | 450 | 200 | 248 | 1"---1/(1/2)" |
5X20" | 75 | 180 | 700 | 200 | 248 | 1"--1/(1/2)" |
5X30" | 75 | 180 | 950 | 200 | 248 | 1"--2 " |
5X40" | 75 | 180 | 1200 | 200 | 248 | 1"---2 " |
7X10" | 75 | 180 | 450 | 250 | 308 | 1"--2 " |
7X20" | 75 | 180 | 700 | 250 | 308 | 1"--2 " |
7X30" | 75 | 180 | 950 | 250 | 308 | 1"--2(1/2) " |
7X40" | 75 | 180 | 1200 | 250 | 308 | 1"--2(1/2) " |
