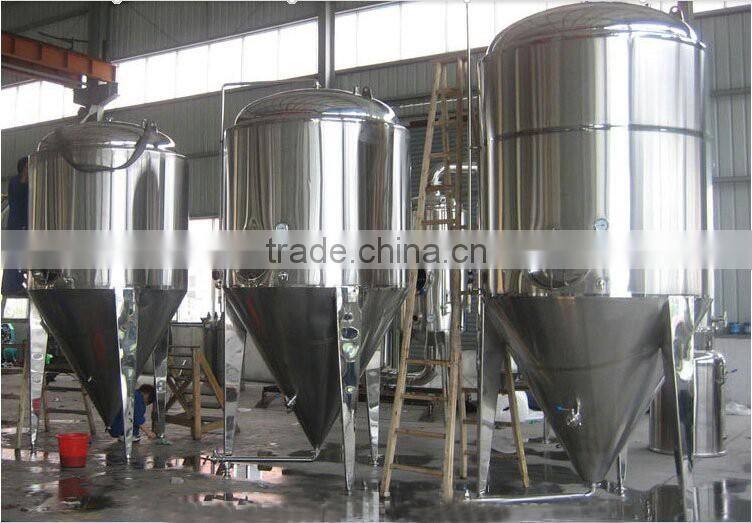

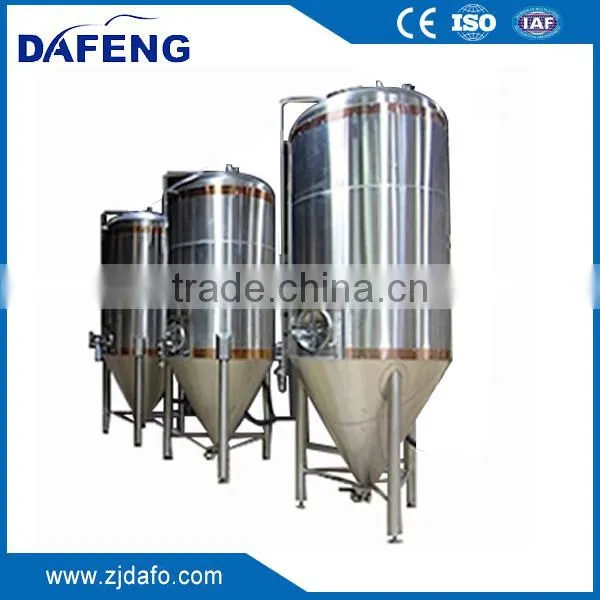

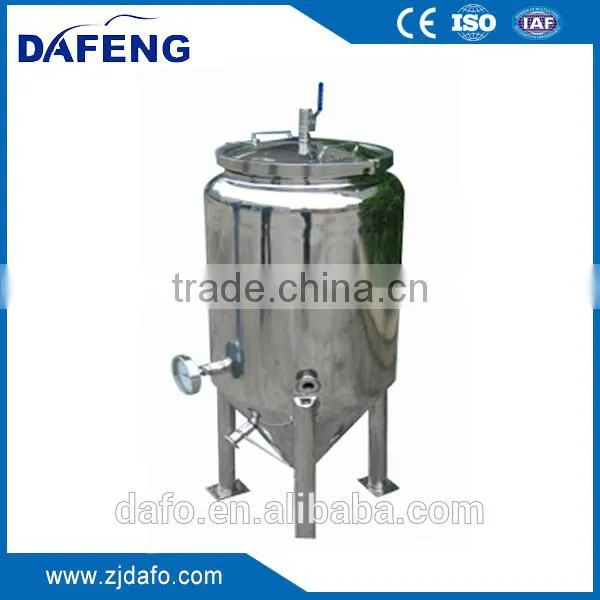

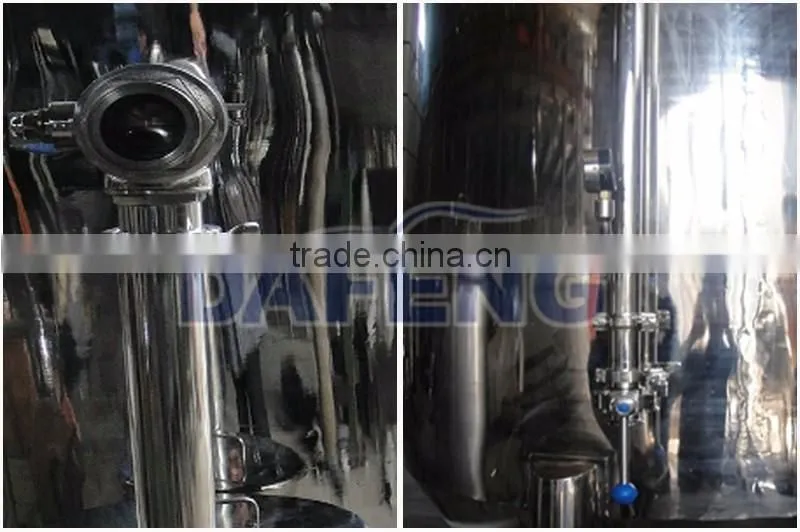

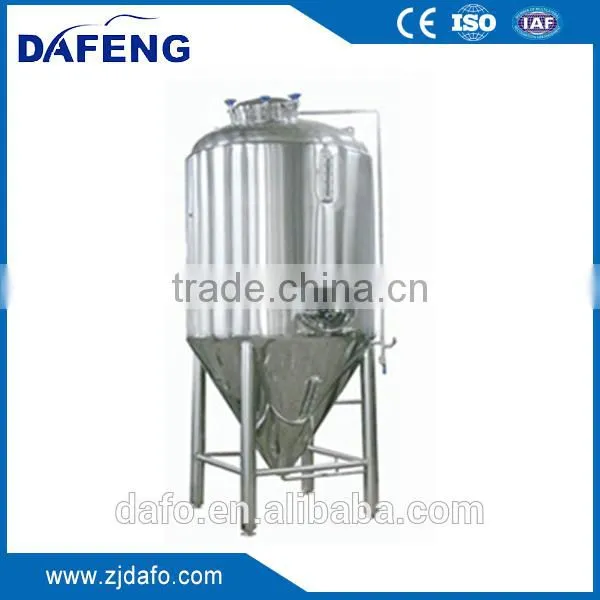

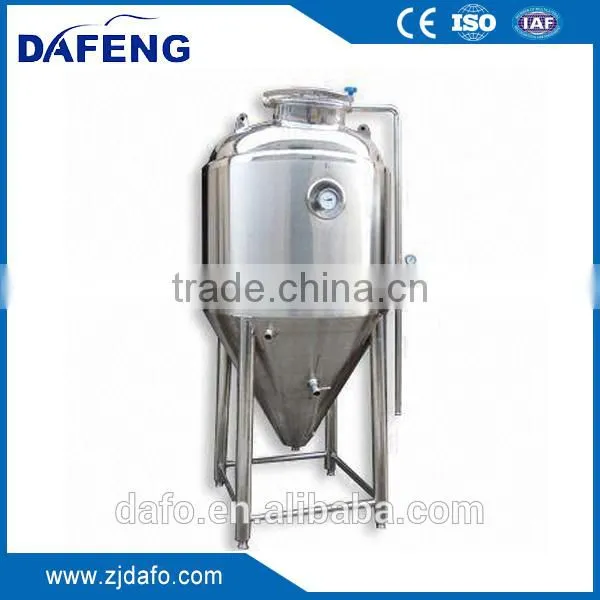

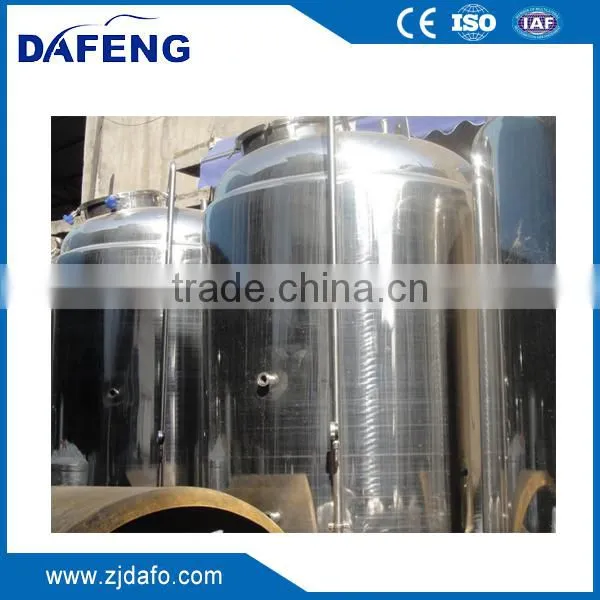

stainless steel fermenter
2.High cooling efficiency,being heated/cooled evenly,short cooling time,
3.Inner layer is made up of Acid-resistant and therMal proof, austenitic stainless steel,beautiful figure, easy installation, simple operation,on the food sanitation grade.
4.Polishing Internal surface can adopt mirror polishing until Ra≤0.28μm, and the external surface adopts mirror polishing,sandblasting or cold rolling original.
oling jacket can save more energy
8. Our equipment is mainly used in brewing of beer, stout and rum. Besides,etc.The product made by our equipment is tasty and fragrant.

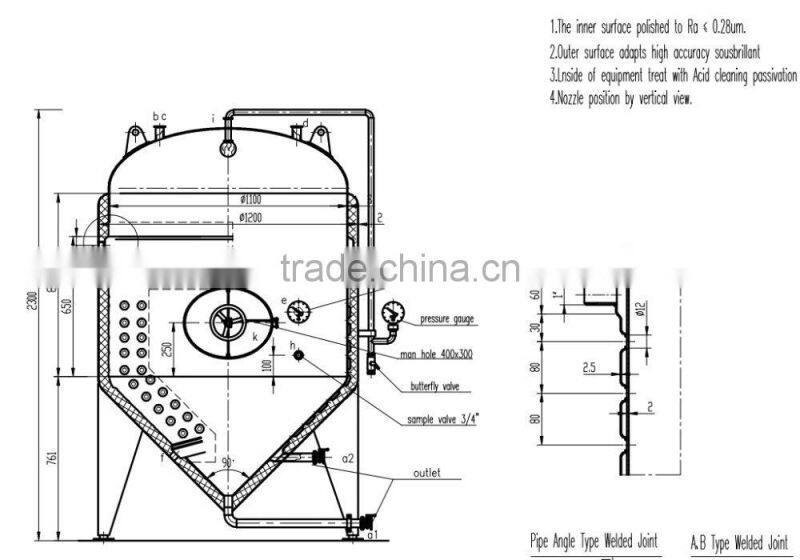

TECHNICAL SPECIFICATION
| Inner surface | S.S.304,WELL POLISHED,polishing precision≤0.4µm,THK:2-4mm |
| Outside surface | S.S.304,frosted or mirror,THK:1.5-3mm |
| Top shape | Seal head or conical head |
| Conical degree | 60-90°c |
| Manhole location | Side upward/side/flanged |
| Insulation | Material:PU,THK:50-100mm |

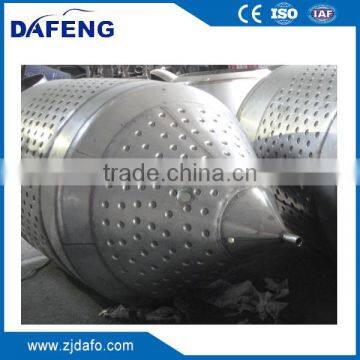

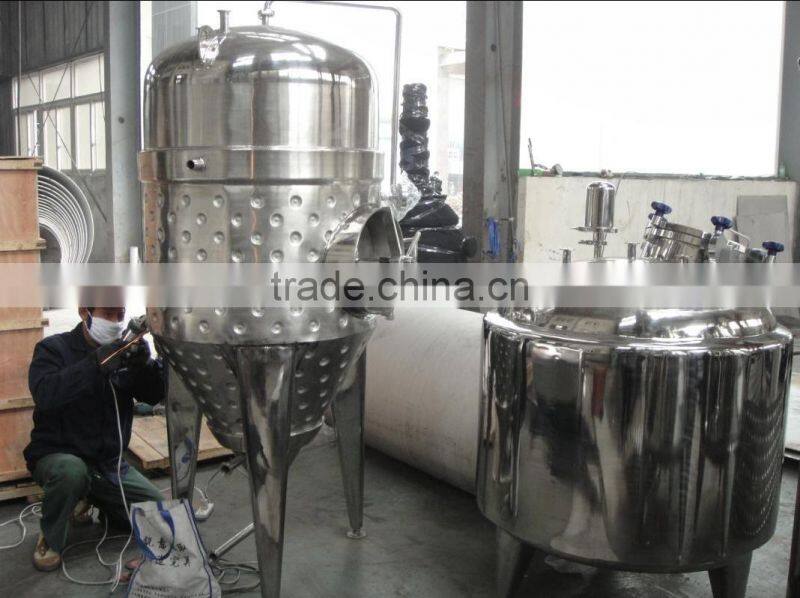

| Cooling jackets | DIMPLED cooling jackets at bottom and side wall. |
| Spray ball | Located in the center of inside of the tank |
| Pressure | 0.2MPa |
| Thermometer | Bi-metal thermometer |
| Legs | 3/4 round legs,can designed to be adjustable |
| The ratio of working volume to gross volume | 4/5 |
| Operational method | Automatic or manual |

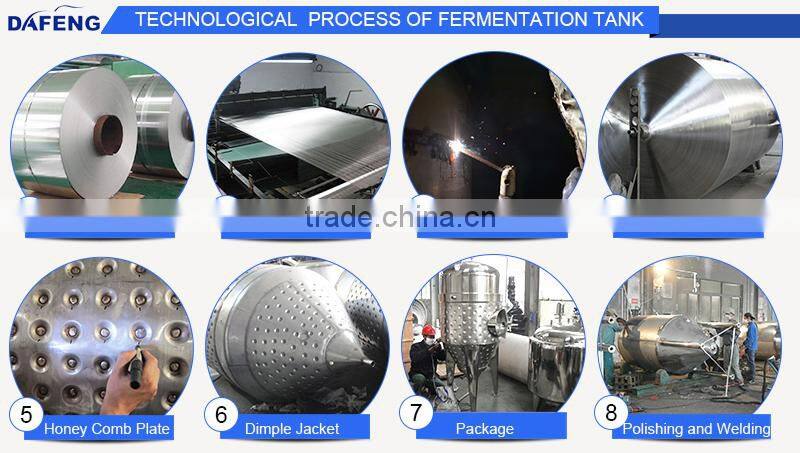

| Technology processing | Argon-arc welding,well weld in double sides. |
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Reactors,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc
.
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
