700 Gallon Conical Fermenter,beer Fermentation Tank
- ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | DF | Model Number | DFGT1000 | |
| Processing Types | Other, beer | Voltage | customized | |
| Power(W) | customized | Dimension(L*W*H) | can be adjusted | |
| Weight | made-custom | Certification | CE | |
| Warranty | 3 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

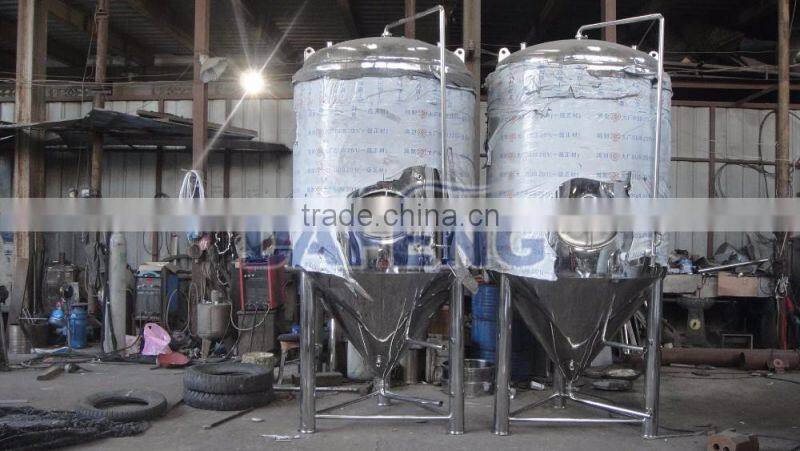

700 Gallon conical fermenter,beer fermentation tank
- Material: 304-2B stainless steel
- Isolation: PU foam
- Capacity: 200 to 20,000L
- Dimple pad cooling jacket in the tank body and conical bottom, efficiently cools the tank in all parts
- Cooling exchange areas are available in different designs
- Conical bottom in 60 degrees is designed for the yeast fermentation processing

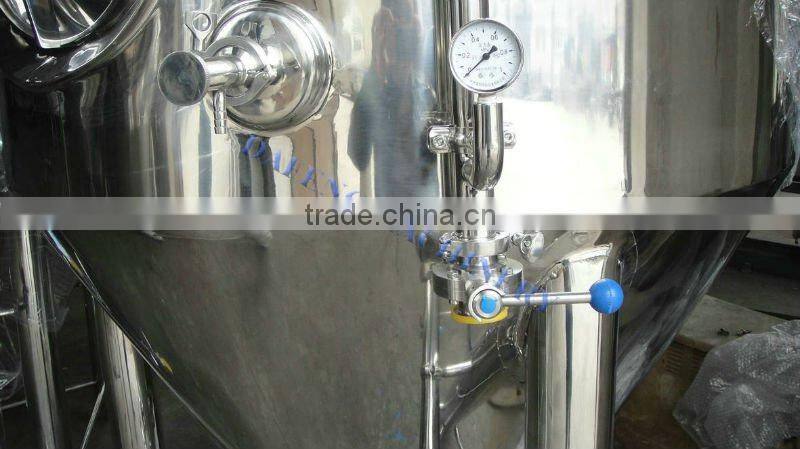

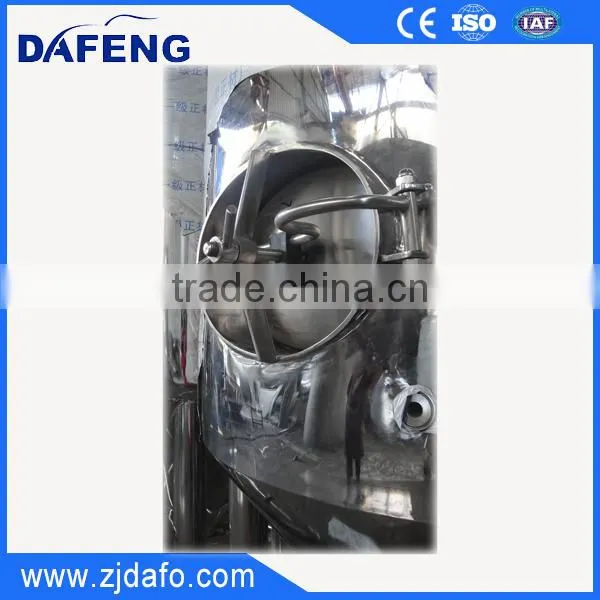

- Configure: CIP socket,sideway manhole,strong leg supports, temperature gauge and sampling socket
- Applications: winery, brewery storage and fermentation



Introduction:

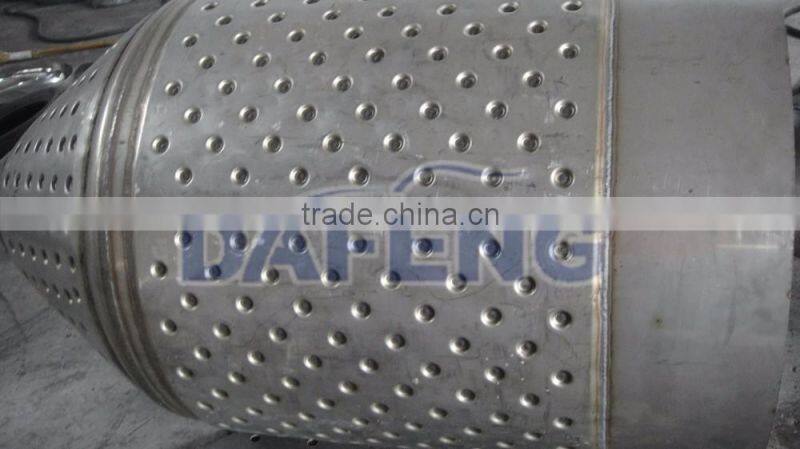

The cooling jacket adopts the form of honey comb jacket.
The jackets are provided at tank body and conical bottom to effectively increase the cooling speed heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. Adopted the international standards of fermentation technology,diverse methods to control the temperature,the inner surface of the tank are mirror-polished.
Completely meet the demanding of PLC and sterilize system.
TECHNICAL PARAMETERS: Number | Specification | Conical angle | Inner diameter/overall height | Correspond |
1 | 7BBL FST | 60° | 1000-2418/1000-2520 | 8HL FST |
2 | 10BBL FST | 60° | 1000-2990/1100-2720 1200-244-/1200-2580 | 12 HL FST |
3 | 15BBL FST | 60° | 950-3955/1100-3745 1200-3170/1300-3110 1400-2680/1400-2790 | 17 HL FST |
4 | 20BBL FST | 60° | 1200-4105/1300-3490 1350-3665/1400-3170 1500-3340 | 34 HL FST |
5 | 30BBL FST | 60°/80° /105 ° | 1500-4905/1600-3860 1700-3625 | 35 HL FST |
6 | 40 BBL FST | 60° | 1700-4255/1800-3960 1800-4050/1900-3580 1900-3860/2000-3440 | 46 HL FST |
7 | 50 BBL FST | 60° | 1700-4855/1800-4620 1900-4360 | 58 HL FST |
8 | 60 BBL FST | 60°/90° | 1800-5150/1900-4860 2000-4660/2100-4580 | 70 HL FST |
9 | 80 BBL FST | 60°/90° | 2000-5580/2100-5335 2200-4400 | 93 HL FST |
10 | 100 BBL FST | 60°/65°/70°/75° | 2100-6140/2300-5250 2300-5060/2200-5540 | 116 HL FST |
11 | 105 BBL FST | 60°/65° | 2100-6300/2400-5180 2100-5895/2400-5000 | 139 HL FST |
12 | 120 BBL FST | 60° | 2100-7000/2200-6400 2200-6600/2700-5400 | 139HL FST |
|
| 90° | 2100-6380 |
|
advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Reactors,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Certifications
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,Saudi Arab and Asia etc.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shippment:
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
Packaging & Delivery Packaging Details:
1. Plywood Case 2. Strong and solid 3. Pallet underneath for easier container loading and unloading Inner Packing information : 1. PE film wrapping overall 2. Fittings are packed in separate PE bag. 3. Spare parts are provided in a bag. 4. Corners are well wrapped and protected with synthetic fiber paper to avoid possible scratch. Besides,we also welcome customers require packi Delivery Detail: 30 days after received the 30%payment
We can offer several payment methods which can ensure your capital’s security, such as the following:
L/C T/T D/A D/P
Western Union
MoneyGram
