15BBL Glycol Jacketed conical fermenter
- 20 Set / Sets per Month
- ningbo
-
10HL 5HL Automated Brewhouse Equipment
-
10HL 20HL 5HL Automatic Brewery System
-
medical alcohol 75% ethanol making machine production line
-
beer production line barley malting equipment
-
1000L fermentation tank for yogurt processing line
-
high quality yogurt stirred yogurt processing line fermentation tank
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | DF |
Model Number: | DFBG | Processing Types: | Other, beer | Voltage: | customized |
Power(W): | customized | Dimension(L*W*H): | accordingly | Weight: | accordingly |
Certification: | CE,ISO9001 | Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2000Liter Glycol Jacket conical fermenter
- Material: 304-2B stainless steel
- Isolation: PU foam
- Capacity: 200 to 20,000L
- Dimple pad cooling jacket in the tank body and conical bottom, efficiently cools the tank in all parts
- Cooling exchange areas are available in different designs
- Conical bottom in 60 degrees is designed for the yeast fermentation processing

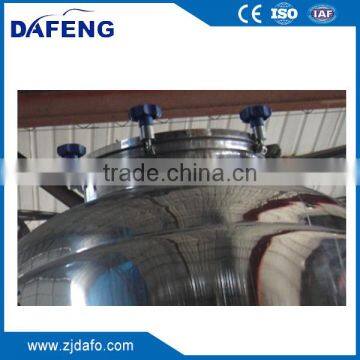

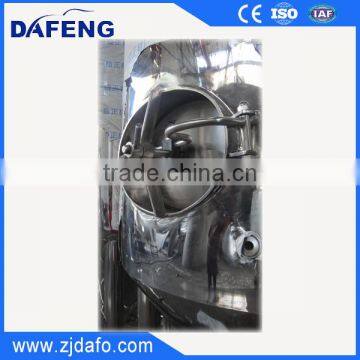

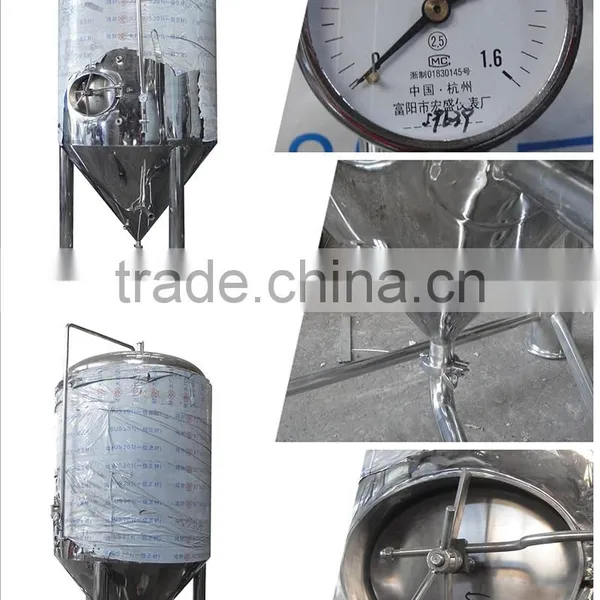

- Configure: CIP socket,sideway manhole,strong leg supports, temperature gauge and sampling socket

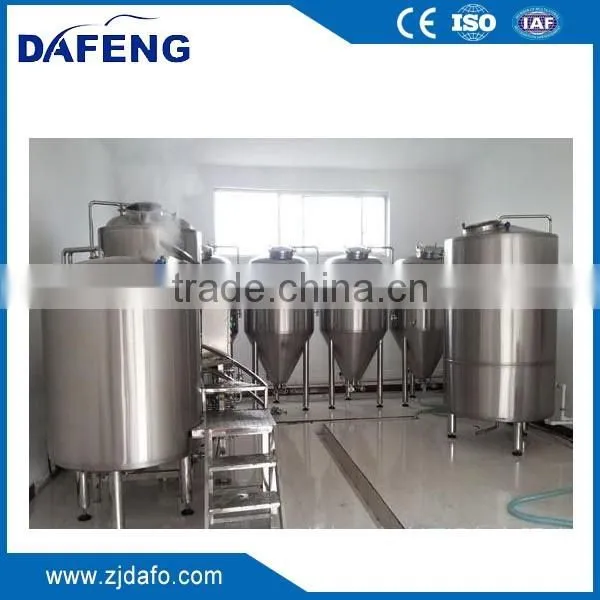

- Applications: winery, brewery storage and fermentation
1:This product is widely used in such industries as brewing, dairy product processing, etc.. The Conical Fermenter is a beautifully designed product for the discriminating brewer. Its features provide commercial brewery functionality at a consumer good price. It is easy to use and load with standard features. Clearly the best and only way to siphon clear beer or wine!
Introduction:
2:The cooling jacket adopts the form of honey comb jacket.The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. Adopted the international standards of fermentation technology, diverse methods to control the temperature, the inner surface of the tank are mirror-polished. Completely meet the demanding of PLC and sterilize system.
TECHNICAL PARAMETERS:
Number | Specification | Conical angle | Inner diameter/overall height | Correspond |
1 | 7BBL FST | 60° | 1000-2418/1000-2520 | 8HL FST |
2 | 10BBL FST | 60° | 1000-2990/1100-2720 1200-244-/1200-2580 | 12 HL FST |
3 | 15BBL FST | 60° | 950-3955/1100-3745 1200-3170/1300-3110 1400-2680/1400-2790 | 17 HL FST |
4 | 20BBL FST | 60° | 1200-4105/1300-3490 1350-3665/1400-3170 1500-3340 | 34 HL FST |
5 | 30BBL FST | 60°/80° /105 ° | 1500-4905/1600-3860 1700-3625 | 35 HL FST |
6 | 40 BBL FST | 60° | 1700-4255/1800-3960 1800-4050/1900-3580 1900-3860/2000-3440 | 46 HL FST |
7 | 50 BBL FST | 60° | 1700-4855/1800-4620 1900-4360 | 58 HL FST |
8 | 60 BBL FST | 60°/90° | 1800-5150/1900-4860 2000-4660/2100-4580 | 70 HL FST |
9 | 80 BBL FST | 60°/90° | 2000-5580/2100-5335 2200-4400 | 93 HL FST |
10 | 100 BBL FST | 60°/65°/70°/75° | 2100-6140/2300-5250 2300-5060/2200-5540 | 116 HL FST |
11 | 105 BBL FST | 60°/65° | 2100-6300/2400-5180 2100-5895/2400-5000 | 139 HL FST |
12 | 120 BBL FST | 60° | 2100-7000/2200-6400 2200-6600/2700-5400 | 139HL FST |
|
| 90° | 2100-6380 |
|
Accessories are provided:
