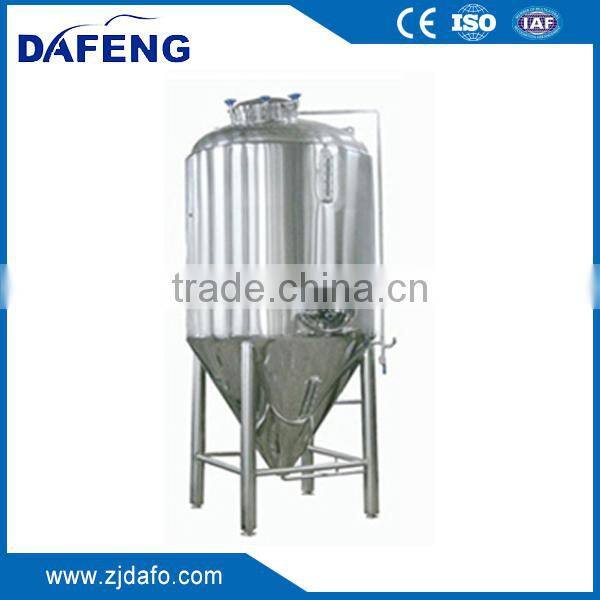

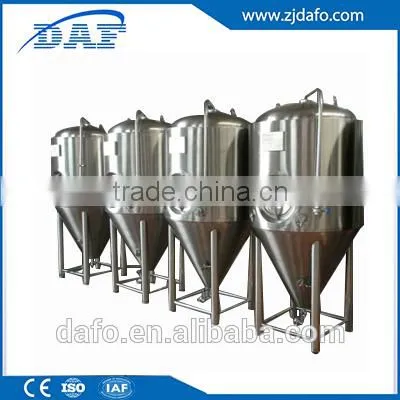

15bbl Fermentation Tank

Beer fermentation tank



1.Usage
This Fermentation Tank( seed tank, crystallizing tank) is widely applied in beer fermentation,beverage, pharmacy, fine chemical engineering and biological engineering industries.

2.Constructure and advantage



1) The tank body has interlayer and heat-insulating layer (for heating, cooling or heat insulating) The tank body, upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm.

2) It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.

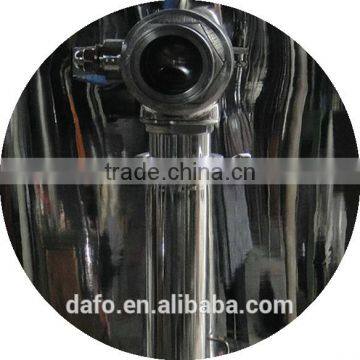

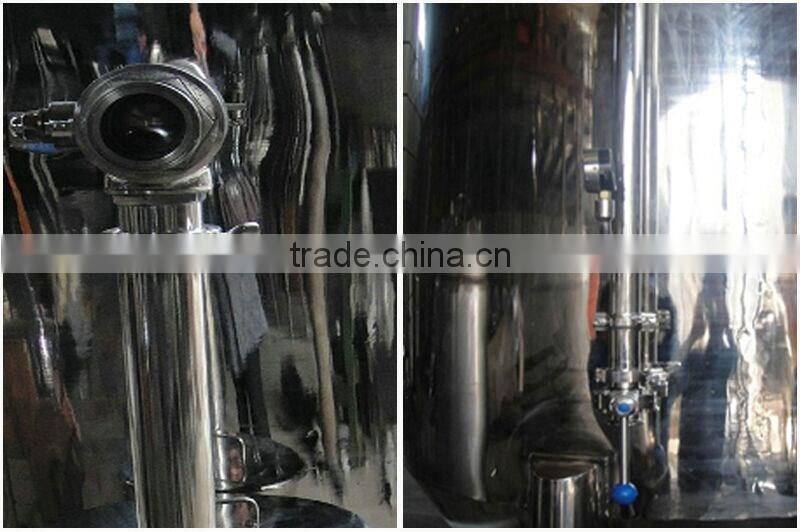

3) It is equipped with devices including air respirator, cleaning ball, sanitation inlet, viewing mirror, and viewing lamp. The fermentation process of Pharmacy, fine chemical engineering and biological products is aseptic and untainted.

4) Fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling.



The parts that contact materials are all made of stainless steel SUS304 or SUS316L. Heat preservation adopts polyurethane blister or pearl cotton. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard. Volume has different specifications ranging from 100-50000L.





Process:

Use mill to smash the grains,then transfer to brewhouse.

The brewhouse including the mash/lauter tun,boiling/whirlpool tank and hot water tank if necessary,these parts also have different combinations.

Then the wort will go through the exchanger for cooling down and then to fermenters for fermentation process.

Our beer can be drinked in the fermenters,if need to filling inside the bottles or kegs,need the filter and  filling system.





1.PRODUCTION INFORMATION

Description of goods	BEER FERMENTATION
Capacity	customized
MOQ	1 PC,THE MORE THE CHEAPER
Lead time	30 days,based on your demand
Packaging	exporting standard wooden case,up to you.
Payment	T/T,L/C, Western Union
Supplying ability	More than 500 pcs per year,based on the capacity
Port of loading	NINGBO
Trade term	FOB,CIF
Material	FOOD GRADE S.S.304

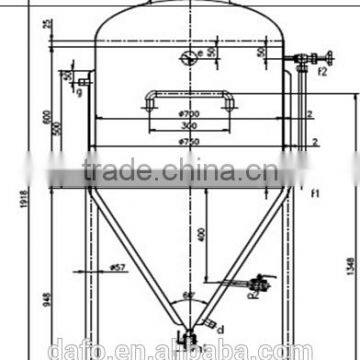

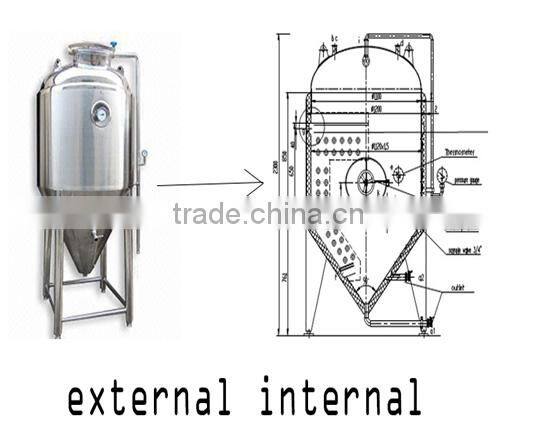

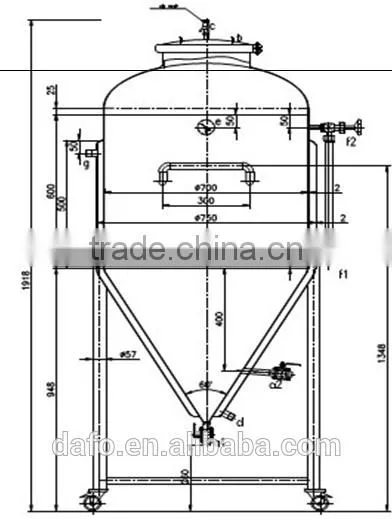

2.TECHNICAL SPECIFICATION

Inner surface	S.S.304,WELL POLISHED,polishing precision≤0.4µm,THK:2-4mm
Outside surface	S.S.304,frosted or mirror,THK:1.5-3mm
Top shape	Seal head or conical head
Conical degree	60-90°c
Manhole location	Side upward/side/flanged
Insulation	Material:PU,THK:50-100mm

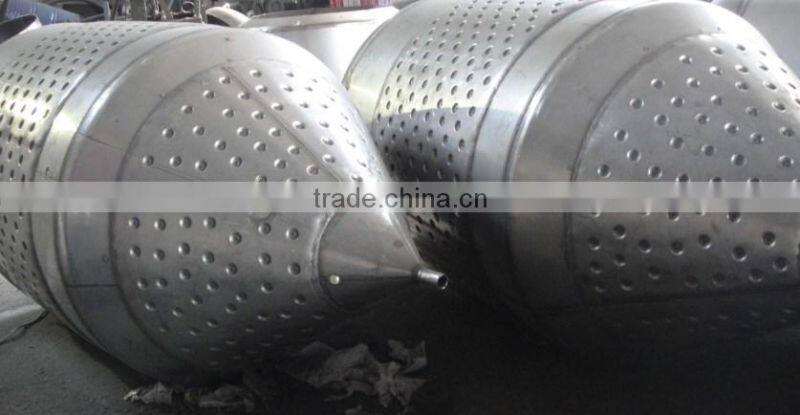

Cooling jackets	DIMPLED cooling jackets at bottom and side wall.
Spray ball	Located in the center of inside of the tank
Pressure	0.2MPa
Thermometer	Bi-metal thermometer

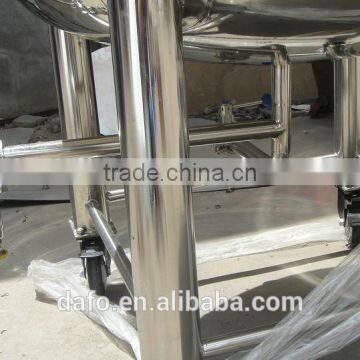

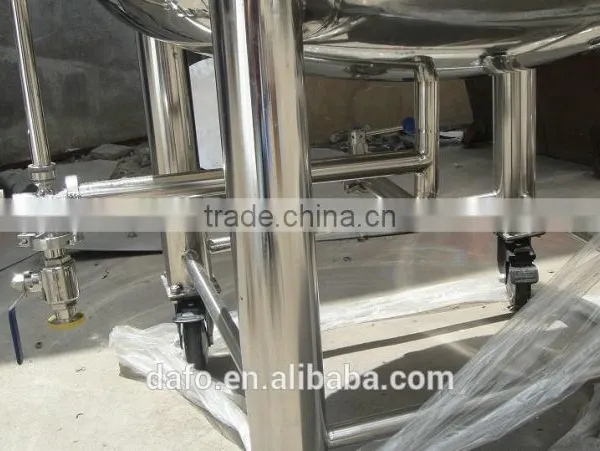

Legs	3/4 round legs,can designed to be adjustable
The ratio of working volume to gross volume	4/5
Operational method	Automatic or manual
Technology processing	Argon-arc welding,well weld in double sides.

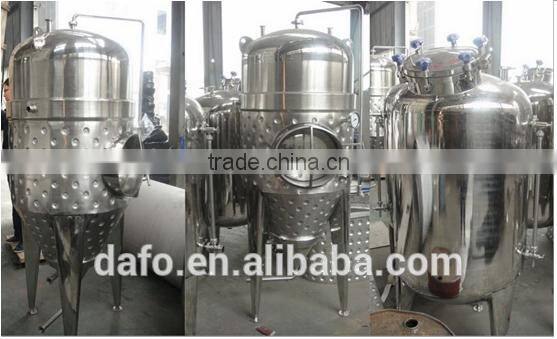

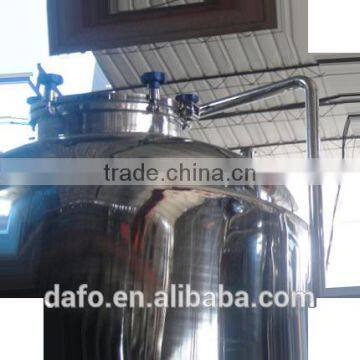

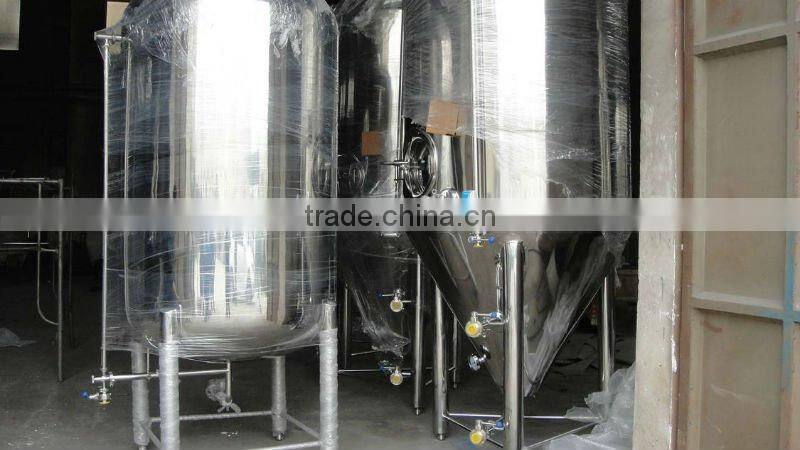

Product Display









Our company’s advantages over other companies:

      Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.

Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Our company’s quality certification:

We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

Our company’s customer segmentation:

Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,

Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.

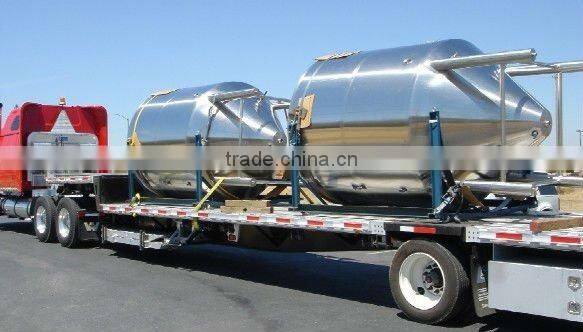

Shipment

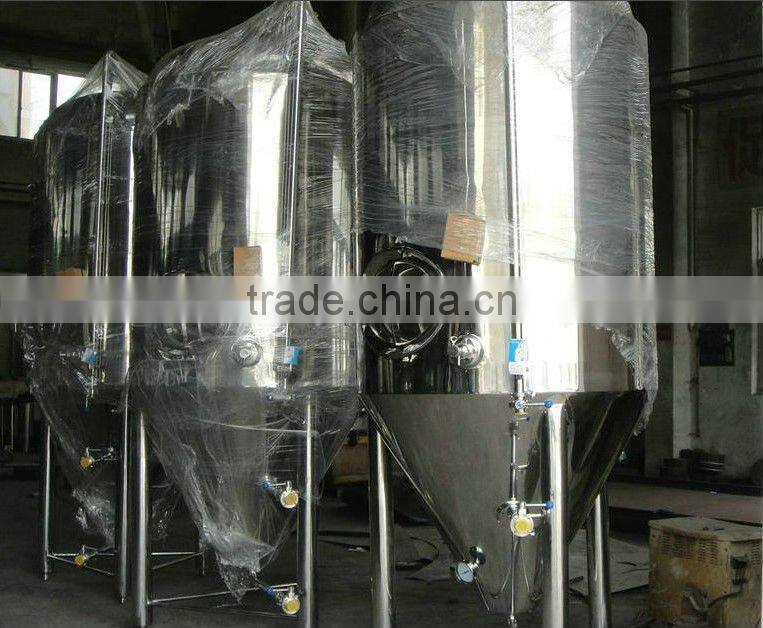

Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
