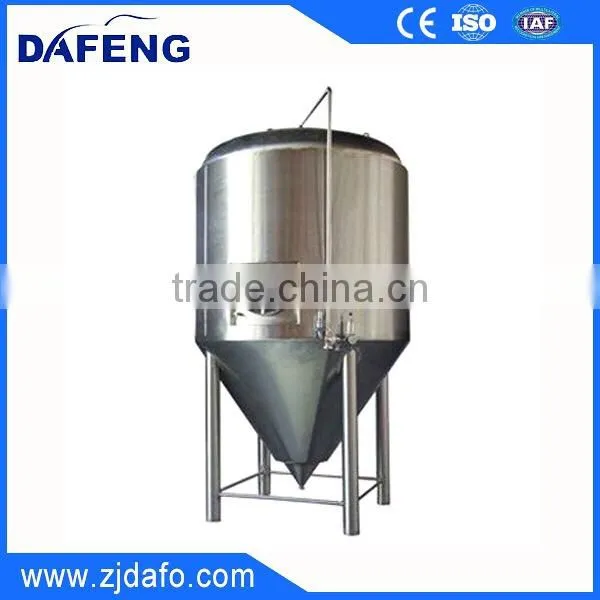

1000L Stainless Steel Fermentation Tank

1000L Stainless steel Fermentation tank

conical fermenter(CE 2000 and ISO 9001 certificate)

Description of stainless steel fermentation tank



Fermentation tank available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a

Dish top , Cylinder body & 60 /70° Cone Bottom . Certified stainless steel material for all tanks,

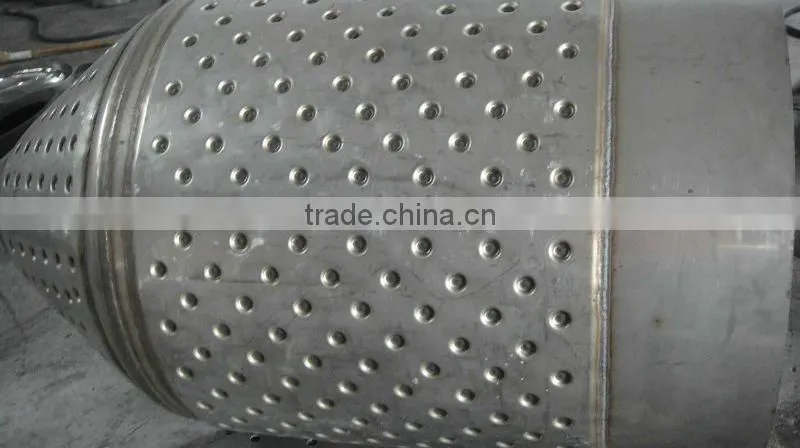

with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for

Glycol cooling & high efficient Polyurethane foam insulated.  All tanks use Tri-clamp connections,

are designed for up to 14.7 PSI and tested at 30 PSI.  We can custom fabricate any tank to meet

your brewery’s space and height restrictions.



NAME BRAND, HIGH QUALITY VALVES AND FITTINGS WITH EVERY TANK!



  Standard Features:

• Double dimple cooling jackets (3 or more on larger tanks)

• Interior shell: 304 stainless steel, thickness 3mm

• Cooling jacket: 304 stainless steel, thickness 2mm

• Exterior shell: 304 stainless steel, thickness 2mm

• 50mm Polyurethane insulation

• Interior surface to finish pickled and passivated

• Exterior surface to brushed, #4 finish

• 580x480mm Side manway, shadowless

• Dry hop inlet at top;

• Accessories:

   Sample Valve x1;

   Thermometer x1;

   CIP cleaning ball x1;

   Rotating racking arm with butterfly valve x1;

   Bottom outlet with butterfly valve x1;

   Spraying Ball with down tube x1;

   Stainless pipe legs with adjustable footpads x4;



TECHNICAL SPECIFICATION



Product Display



Pre-sale service:

1. Free of making offers, craft and technical guidance.

2. We can provide company’s qualification certification and the drawings.

3. We can also make customized products according to customer’s needs.

 After-sale service:

1. We provide long-term after-sale service.

2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

     Advanced Technology Co., Ltd Wenzhou is the a professional beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture the brewing equipment.  we can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D etc.

      Our staff of sales and technical support is available to help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation. At Advanced Tech., we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

We can offer several payment methods which can ensure your capital’s security, such as the following:

L/C   T/T   D/A   D/P

Western Union

MoneyGram
