Stainless Steel Conical Beer Fermenter
- ningbo
- T/T Credit Card
You May Like
-
250 Gallon Commercial Stainless Steel Beer Fermenter
-
1000L,2000L,3000L Beer Fermenter Tank With Cooling Jacket
-
5bbl Microbrewery Equipment for Sale Beer Equipment
-
Mirco Beer Brewing Conical Fermenter/home Brew Conical Fermenter
-
Conical Beer Fermentation Tank/ Beer Brewing Equipment
-
40,000L Stainless Steel 304 Dimple Jacket Wine Tank
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | dafeng | Model Number | BE-2 | |
| Processing Types | Alcohol | Voltage | 220/ 380V | |
| Power(W) | customized | Dimension(L*W*H) | can be adjusted | |
| Weight | customized | Certification | CE | |
| Warranty | 2 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

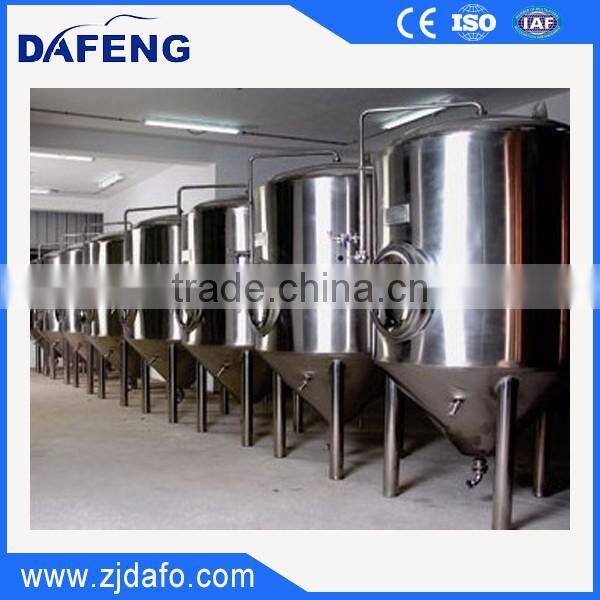

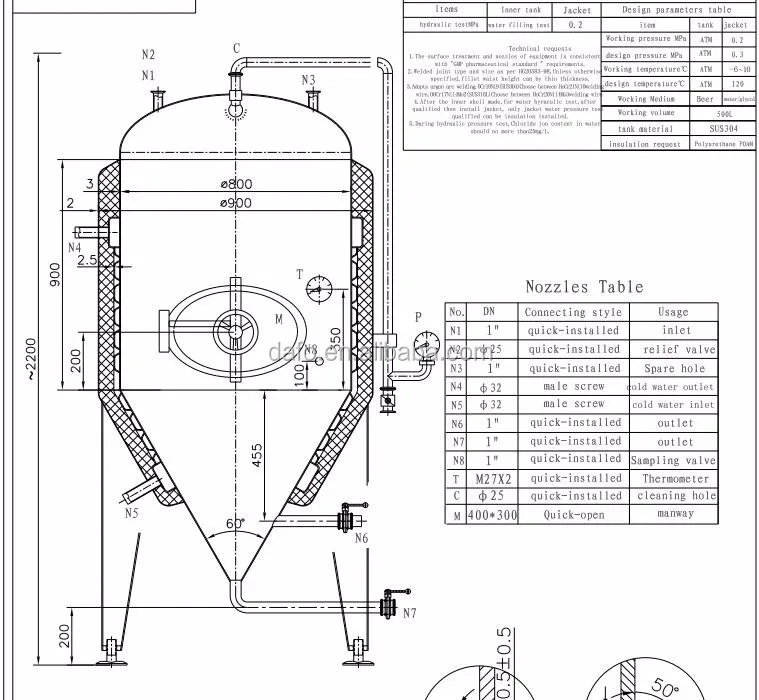

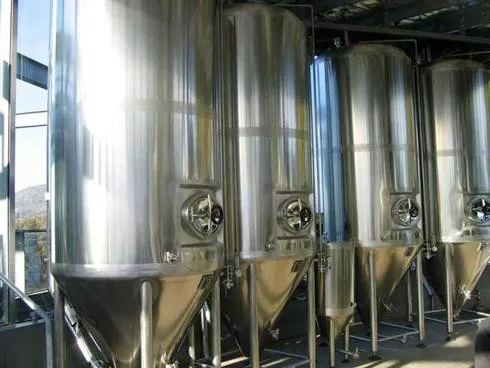

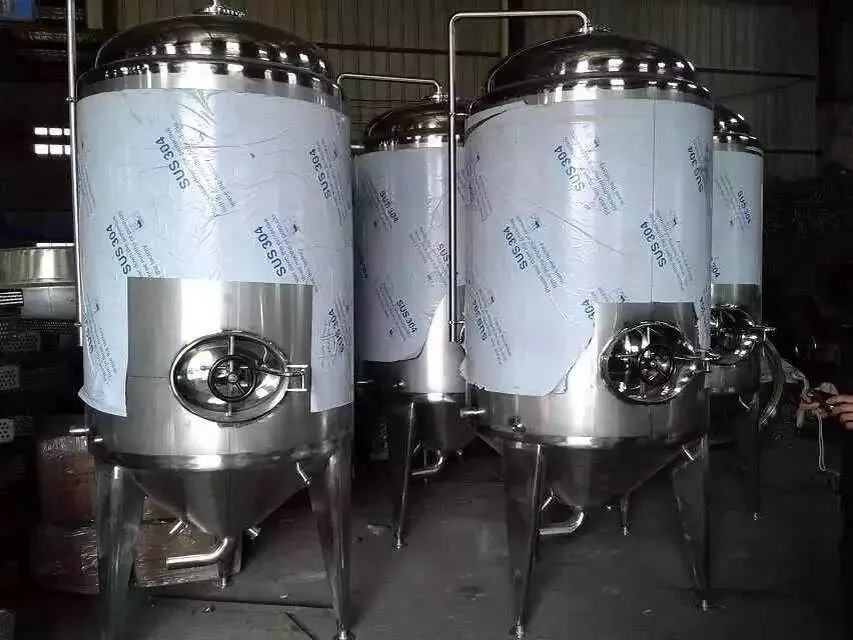

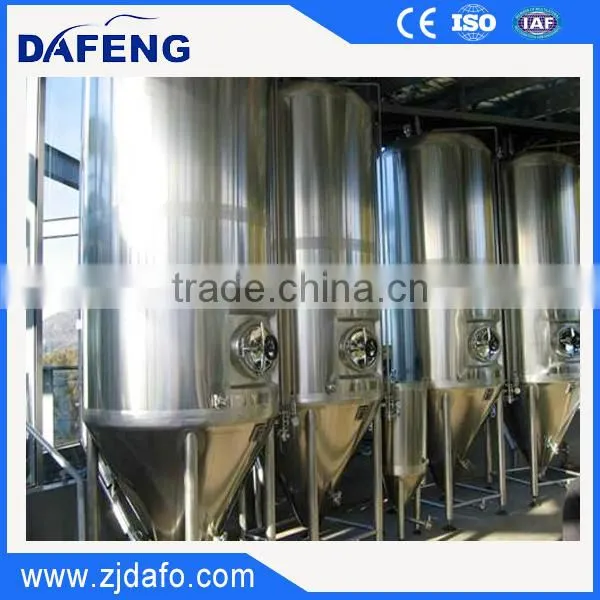

Stainless steel conical beer fermenter
1. Grade: SUS201,SUS304,SUS316L.
2. Size: 100L-20000L
3. Standard: ISO,DIN 315
4. Certification: ISO9001, CE

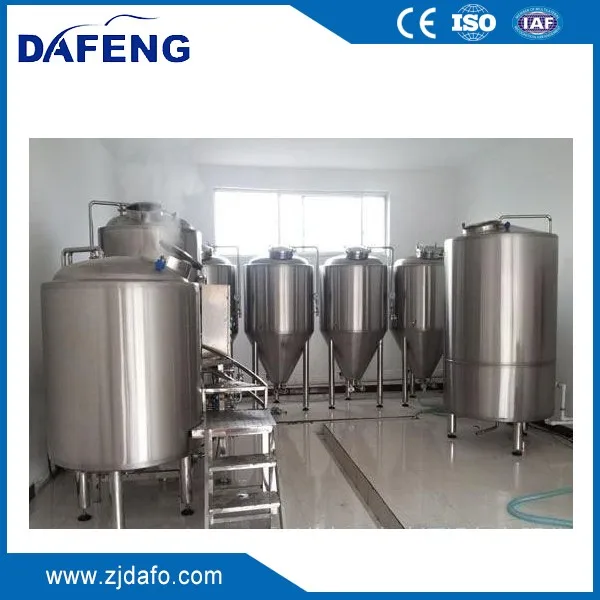

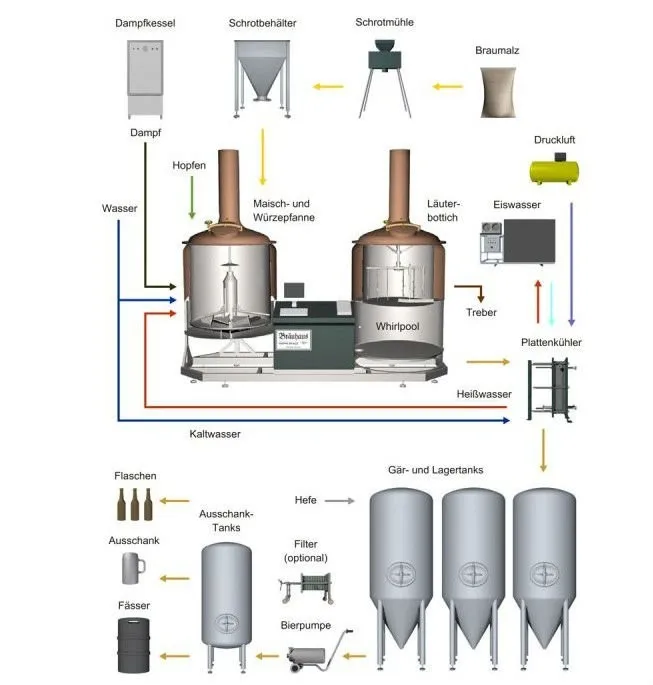

The fermenting system is composed of fermenting tank, Brite tank and yeast tank. The fermentation process is controlled by PLC program, which can automatically accomplish the temperature control and exhaust.

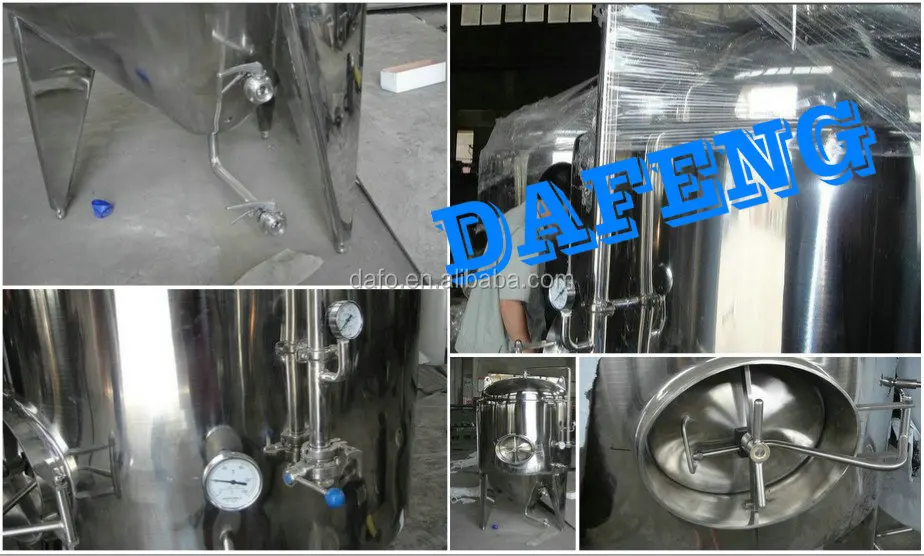

Design pressure 45 psi (3bar); working pressure 15psi (1bar)
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.6~0.8, hygiene surface
60 degree cone bottom, other angles can be specified during the design process
Combined drain extensions and beer port in cone are standard
25% headspace, unless a different volume is requested
Top manway or side manway door

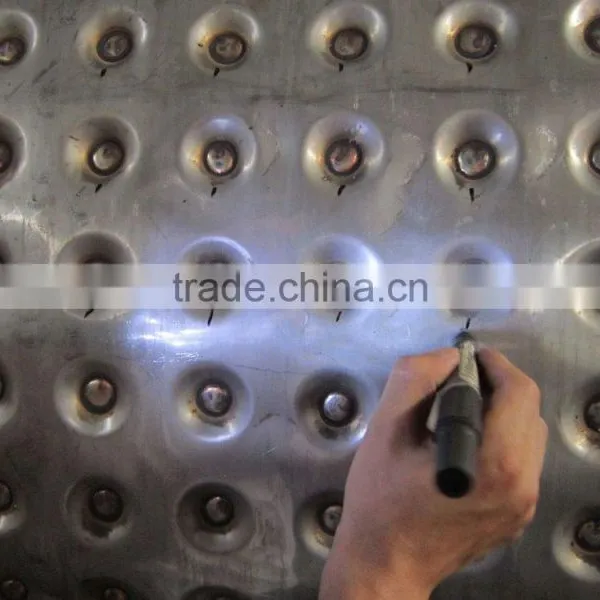

Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Fully welded exterior shell
Non welding CIP arm and rotating 360 degree reach spray ball
Solenoid relief valve, pressure relief valve (safe valve) are standard
Pressure gauge
Temperature sensor well
Sanitary sample valve and port
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
Beer Fermenter Characteristics:
1. Adopt structure of internal tank and external package , with heat preservation materials inside
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
High Quality

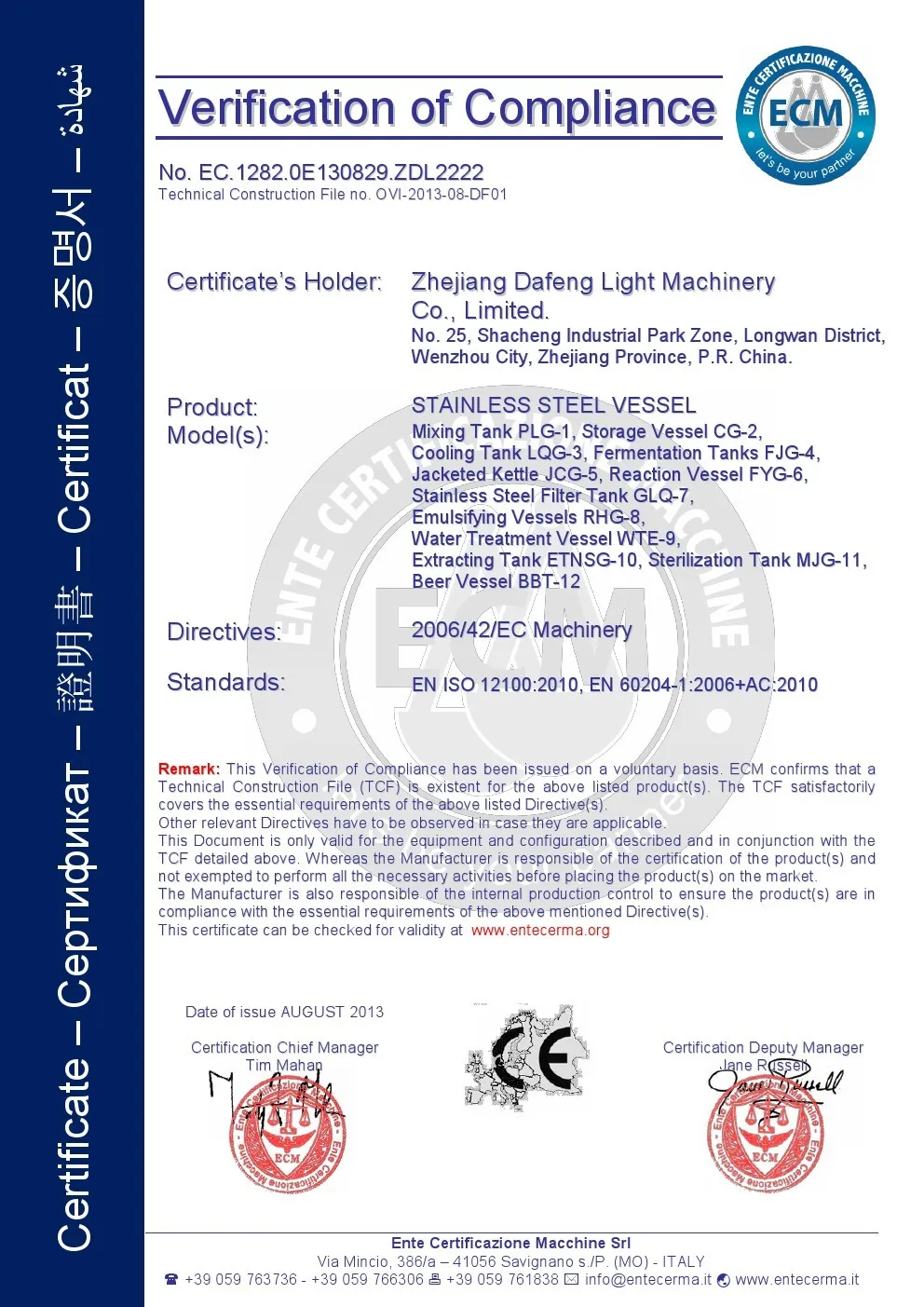

Passed the ISO9001:2008 quality system authentication and CE authentication.
Technical Support
Consultation service before, during, and after sales;
Provide Project planning and design services once contact builds;
On site trainning and guidance.
Export Service

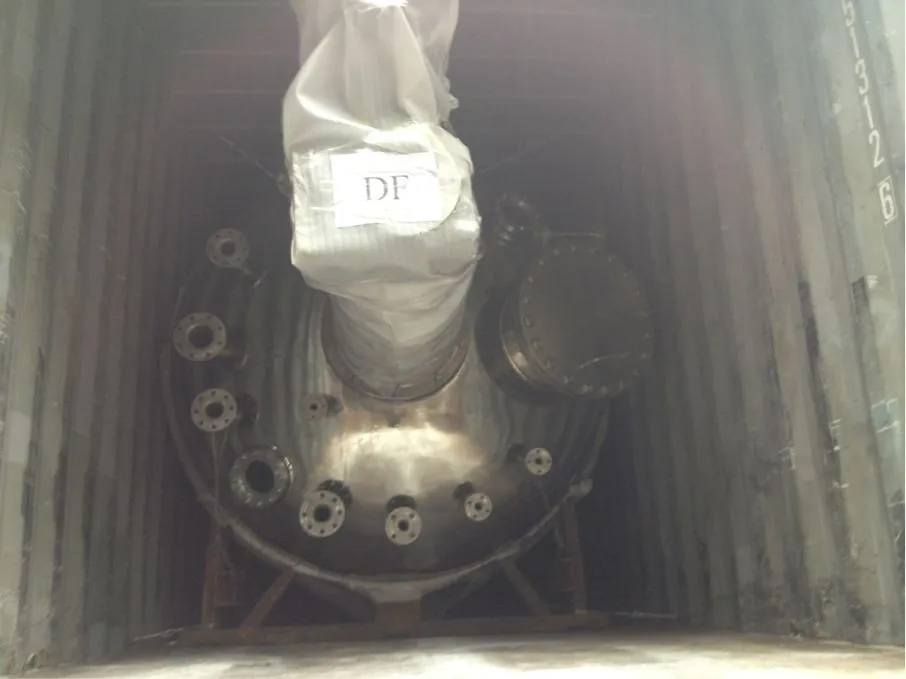

Management of equipments' sea distance shipping from seller's factory
to the named port or station by buyer;
Arrange transportation by means of air,land and sea.
Factory

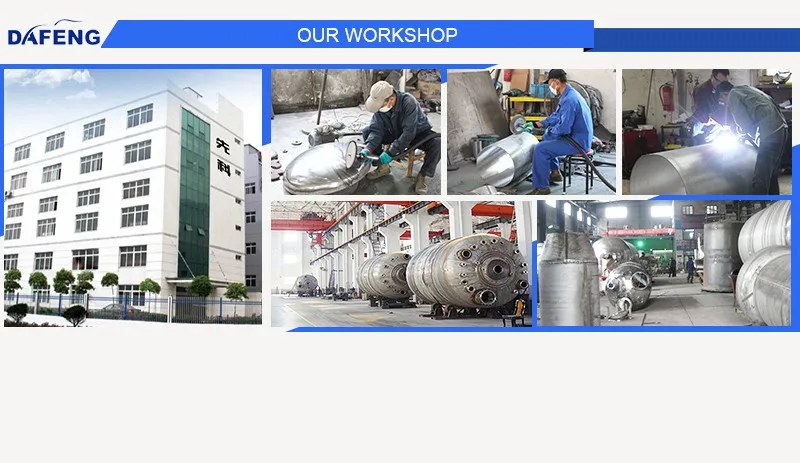

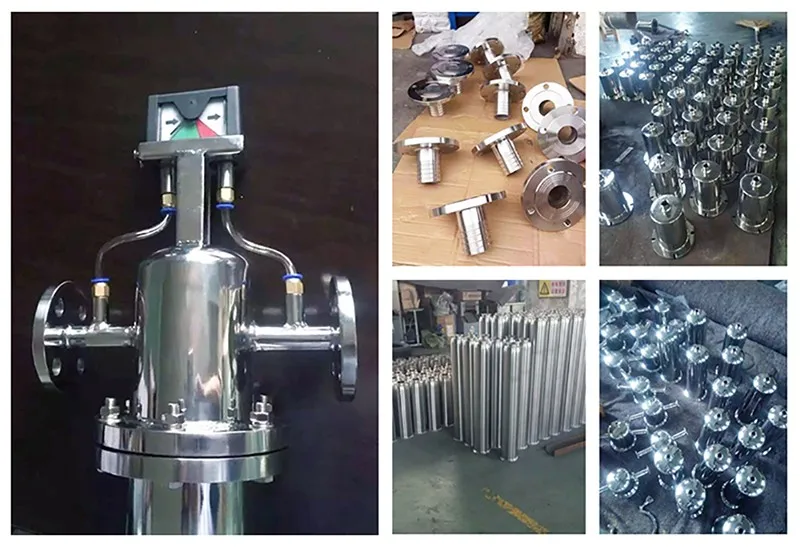

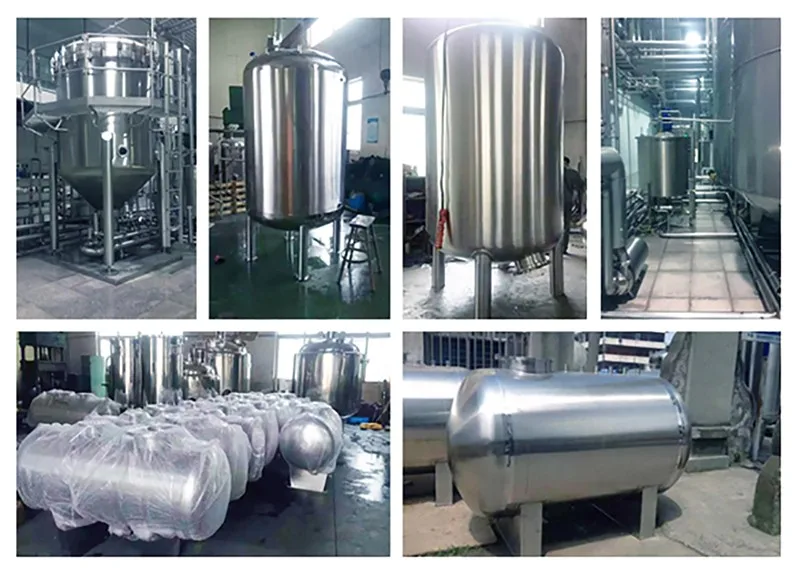

Workshop
Our Workshop

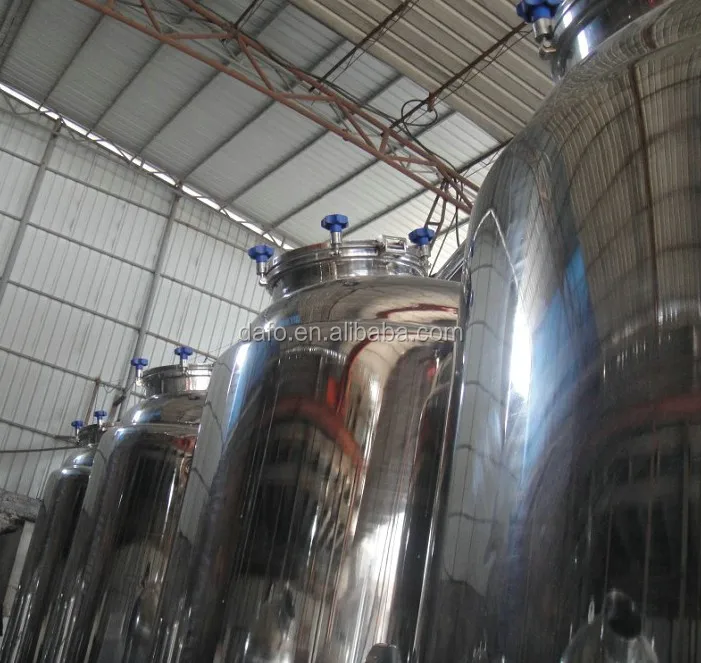

Warehouse
Our Warehouse
Team
Our Team

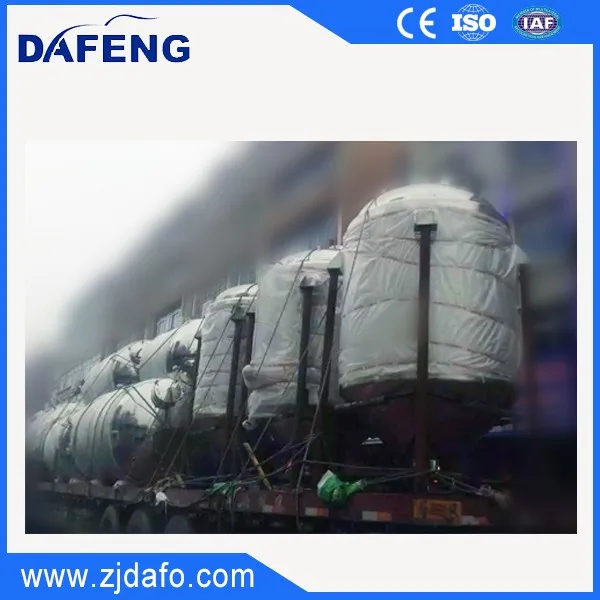

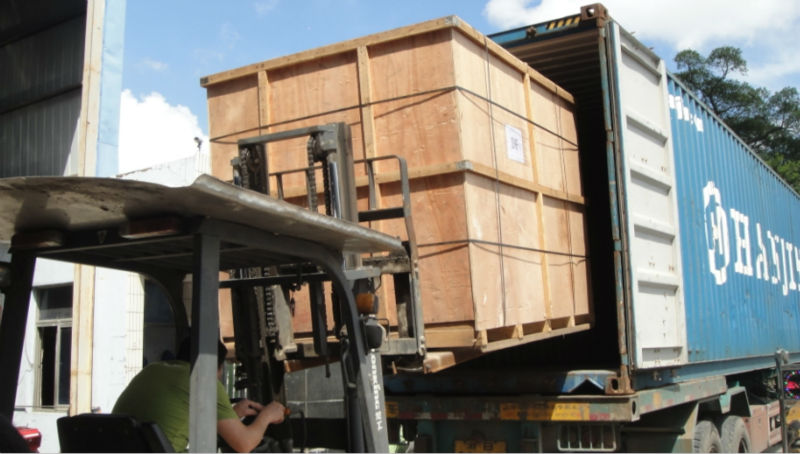

Packing Details : Plywoode Packing, 5-7pcs/container
Delivery Details : 30 days after order of downpayment
Favorable Comment
Dear Joe,
Thank you for the photos, those tanks are verry beautifull.
I will let you know something, but I have already an appointment with a customer who wants to see the fermenters and perhaps needs fermenters of 2500liters.
Maybe you can make me another offer for one container of these tanks?
Best regards,
Kristof
Favorable Comment
Dear Joe,
Nice to hear from you.
I have probably a new customer for you, so if you have the time can you make me an offer for me?
2 ckt tanks like mine with a netto volume of 1000liter.
2 ckt tanks like mine with a netto volume of 2000liter.
Can you make the offer with transport included to zeebrugge Belgium?
Kind regards
Favorable Comment
Hello Joe
All machines are working well.
Just now I’m thinking about placing order for next fermenters, and tanks. When I make decision I will send you my suggestions for the next machines.
Pozdrawiam / Best Regards
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 30 days after order confirmed. Or it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the 1MOQ takes as a sample.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
