Home > Products > Emulsifiers > 2000L liquid soap/ laundry soap/ bar soap jacketed emulsifier
2000L liquid soap/ laundry soap/ bar soap jacketed emulsifier
- 20 Set / Sets per Month
- Ningbo
- T/T Credit Card PayPal
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Other, Cosmectics,cream |
Application: | Liquid | Additional Capabilities: | Granulating | Place of Origin: | Zhejiang, China |
Brand Name: | DF | Model Number: | LQ-16 | Max. Loading Capacity: | 600L/1000L/2000L |
Voltage: | 220/380v | Power(W): | customized | Dimension(L*W*H): | Accordingly |
Certification: | CE,ISO9001 | Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

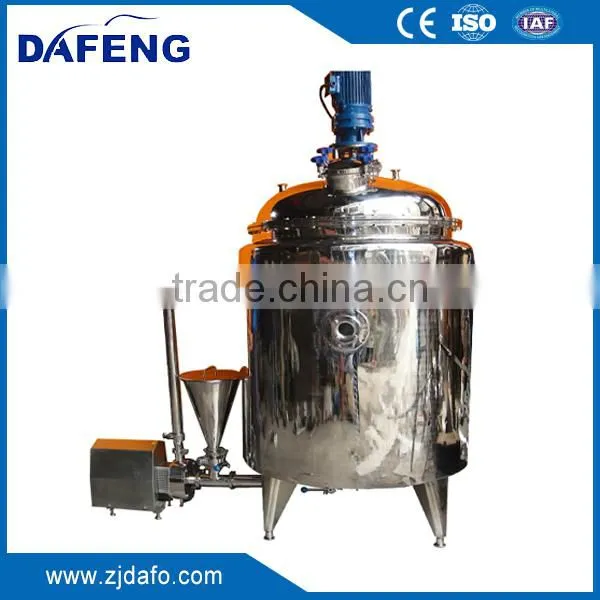

500L-2000L liquid soap/ laundry soap/ bar soap making machine,emulsifying tank
Item name | emulsifier tank |
Material | Stainless steel 304/stainless steel 316L |
Application | Daily chemical care products, , pharmacy, food industry |
Product features
| 1) With CE,ISO,GMP standards 2) high speed agitator: homogenizer with motor(2800RPM) 3) It is flanged lid 4) Frequency controller for adjusting stir speed 5) Vacuum, full jacket 6) The range of volume is 500L-5000L 7) The pot could heat& cool the material, electric heating 8) Agitator type:homogenizer with motor |
Application range:
It can be used as the reacting tank in paint, emulsion, adhesive, petroleum can be widely used in petroleum, chemical, rubber,
pesticide, dye, medicine and food industry. Used to achieve curing, hydrogenation, alkylation, polymerization, condensation process.
Food procession, cosmetics production, chemical industry, dyeing and printing facilities, essence and fragrant substance production,
fine chemical industry, emulsification of diesel oil and pitch.
Advantages:
1)Vacuum emulsifier tank with flanged lid, homogenizer stirrer,one
2rd external emulsification,one filling funnel,forming a external circulating system so as to do a better homogenzing effect and efficency.
2)Made of Sanitary grade material of Stainless steel SUS316L,to ensure asepsis.
3) Electric heating facility;Electric cabinet semi-automatic operation.
4) Economicals and convenience.
Product details:

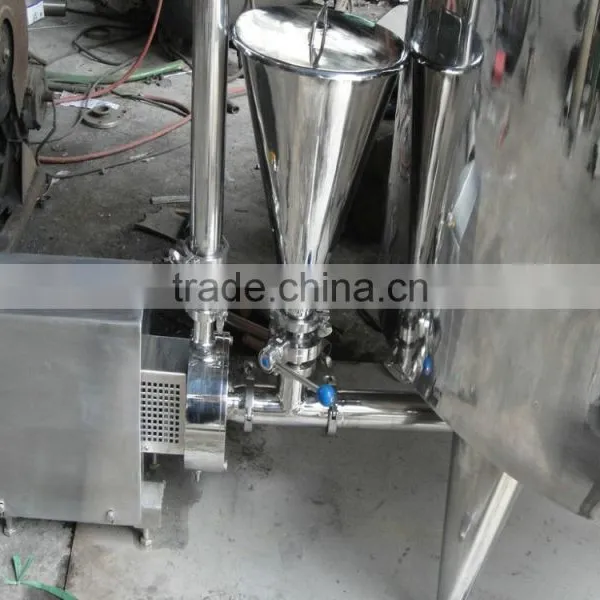

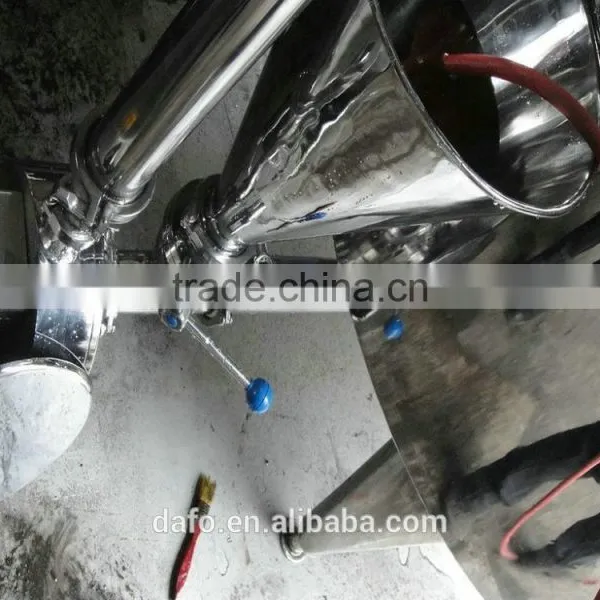

You can see the external circulating system in all details.

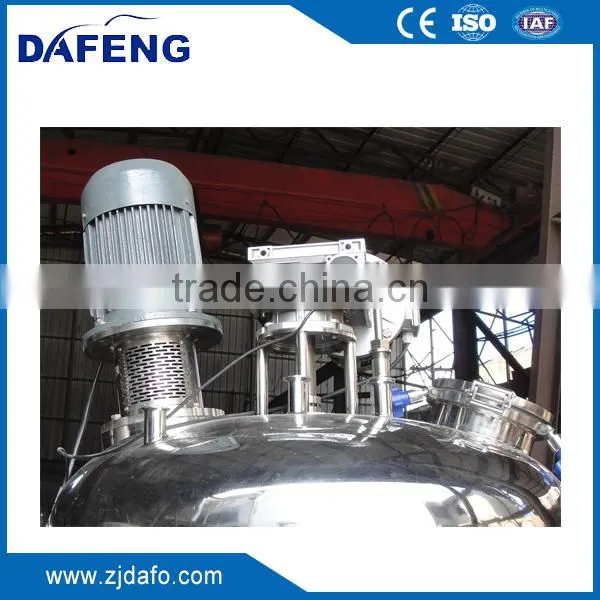

This is homogenizing stirrer as below.
Wonderful CIP Automatic Cleaning Ball
Volume | Working pressure (Mpa) | Work.TEMP.(°C) | Agitation speed(rpm) | H(mm) | H1(mm) | D(mm) | D1(mm) | h(mm) |
100 | 0.25 | 100 | 0-720 | 1750 | 450 | φ750 | φ550 | 300 |
200 | 0.25 | 100 | 0-720 | 1950 | 600 | φ850 | φ650 | 300 |
600 | 0.25 | 100 | 0-720 | 2500 | 1000 | φ1100 | φ900 | 350 |
1000 | 0.25 | 100 | 0-720 | 2850 | 1200 | φ1300 | φ1100 | 350 |
2000 | 0.25 | 100 | 0-720 | 3350 | 1500 | φ1500 | φ1300 | 350 |
3000 | 0.25 | 100 | 0-720 | 3700 | 1700 | φ1700 | φ1500 | 350 |
5000 | 0.25 | 100 | 0-720 | 4250 | 2000 | φ2000 | φ1800 | 400 |
10000 | 0.25 | 100 | 0-720 | 5000 | 2500 | φ2500 | φ2300 | 400 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Reactors,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Certifications
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,Saudi Arab and Asia etc.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shippment:
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
Packaging & Delivery Packaging Details:
1. Plywood Case 2. Strong and solid 3. Pallet underneath for easier container loading and unloading Inner Packing information : 1. PE film wrapping overall 2. Fittings are packed in separate PE bag. 3. Spare parts are provided in a bag. 4. Corners are well wrapped and protected with synthetic fiber paper to avoid possible scratch. Besides,we also welcome customers require packi Delivery Detail: 30 days after received the 30%payment
We can offer several payment methods which can ensure your capital’s security, such as the following:
L/C T/T D/A D/P
Western Union
MoneyGram
