Product Description

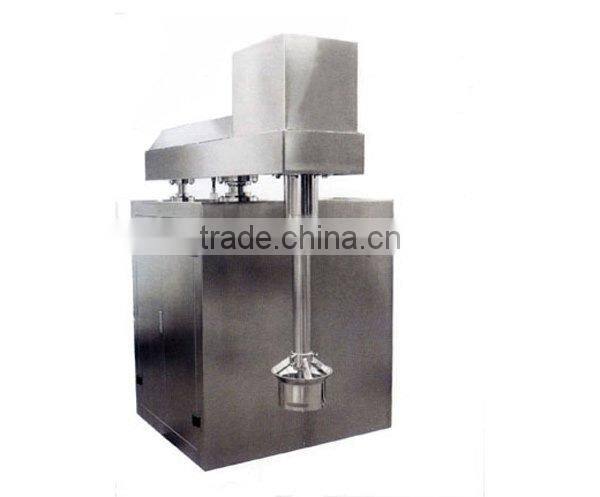

high pressure homogenizer
Homogenizer is widely applicated in biological medicine, food industry, day care, coating printing ink, nano-materials, petroleum chemical, printing and dyeing auxiliaries, paper industry, pesticide and fertilizer, plastic rubber, power electronics and other fine chemical industry.
Features of food homogenizer
1. With high stability, low noise, easy clean, flexible and can be continuously used, the materials can be super fine scattered and emulsified. It can be widely used in industrial production of emulsion, uniform and scattered. 2. Making the material refined mix under the triple action of crowding inquiry, strong impact and loss-pressure expansion. This equipment is important equipment in food, dairy. drink, and other industrial. 3. For soybean milk and other kinds of dairy drink milk, under high pressure for homogeneous, can make the dairy fat in liquid ball significant refinement, making its products easy to digest and absorb, increase use value. 4. Used in the production of ice cream and other products, can improve the degree of fineness and loose, making its inherent quality obviously improved. 5. Used for emulsions, glue, fruit juice, slurries and other production, can prevent or reduce material liquid to layered, improve the look of the material liquid effect, making its color brighter, fragrance thicker, tastes well. |
Introduction
Main applications:
(1) cell disruption, process new products, or harvesting the intracellular products;
(2) subdividing the particles or droplets present in fluids into very smallest sizes (submicron) and creating a stable dispersions and emulsions;
(3) homogenizing many other products;
Power End
1).Electric motor, three-phase asynchronous motor,ranging from 3-160KW for various models.
2). Gearbox,two stage transmission.
Using two-stage reducing. First stage is V-belt reducing,and second stage adopts herring bone gear for symmetrical transmission,with diamountable slides. Special alloy rolling bearings and bushes at the two sides don’t need to be changed if under normal operation.
Horizontal structure,stable, low noise, mechanical efficiency is increased by about 10% on average.
Combined splash system lubrication and oil pump water cooling auxiliary lubrication ensure high quality lubricating.
Liquid End
1.Check valve
The conical type check valve can be applicable for the most product materials.
Valve can be offered with various materials according to customer’s product material properties,to realize the best working condition and meet CIP cleaning and acid and alkali resistant requirements especially in medical,dairy and chemical industry.
Poppet valve or ball valve. Ball valve offered for high viscocity liquid materials processing so as to ensure sufficient flow and stable working.
2.Homogenizing valve
Made of Tungsten-Cobalt-Titanium alloy or erosion-resisting cemented carbide,anti abrasion and compact,applicable for 0-1000bar pressure.
Optional for product materials and production requirements.
3.Sealing
Made of the 4th high grade sealing materials,anti-pressure,anti-abrasion and sanitary,heat resistance(up to 150℃).
V belts or square belts can be optional for product material properties,or customized belts can be offered.
4.Plunger
Made of erosion-resistance stainless steel,treated through multiple processes(reach mirror surface effect),accurate and durable. The application practice in dairy industry has proves that the average use life can reach 6000-10000 hours.
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Laboratory service for sample homogenizing before equipment purchase.Satisfactory after-sales support,lifetime service avaiable to machines sold out.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment

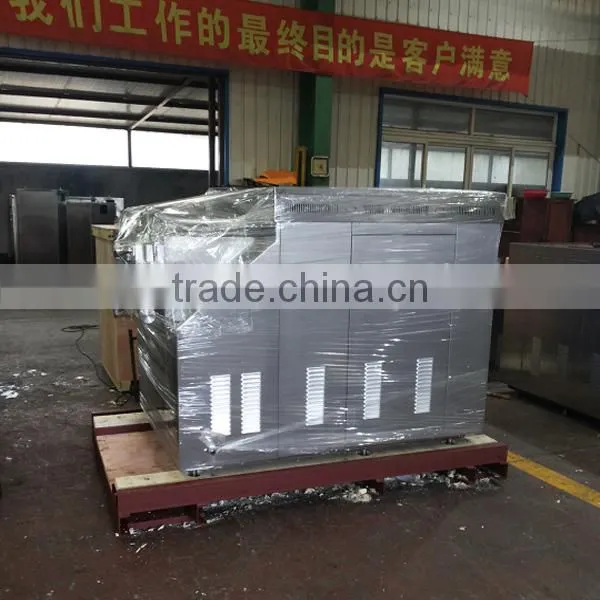

Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
