Name: Stainless steel steam electricjacketed kettle(oil jacketed kettle,jacket kettle with agitator)
USAGE
It is applied widely for the processing such products as candy,medicine,dairy,alcohol,cake etc.
Tilting jacketed kettle(steam kettle),jacket kettle.
Capacity: 50L-600L With Agitator and jacket Material: SS304 and SS316L 20 years specialized factory

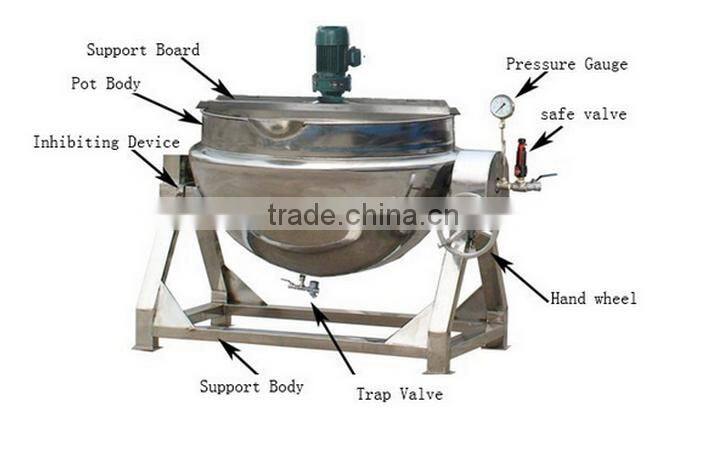

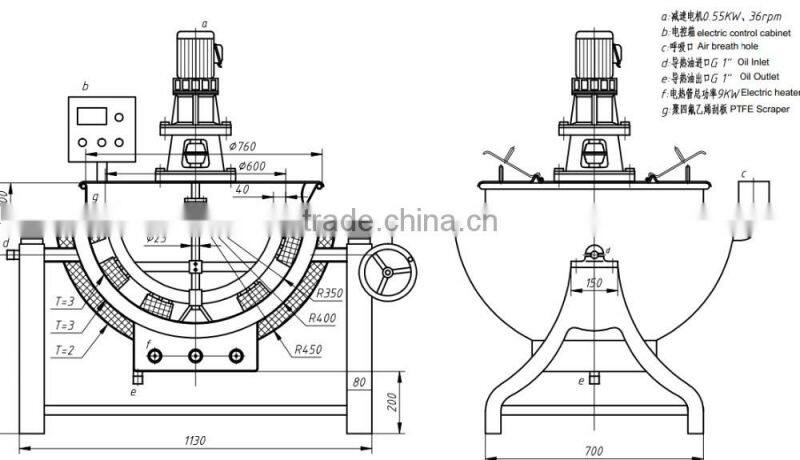

1. Stainless steel oil jacketed kettle is composed of kettle, bracket, worm wheel and worm etc.
2. The kettle can revolve with 180°,The equipment is used for open concentration,
mainly for decocting and concentration of liquids in industries of pharmaceutical industry,
food industry, chemical industry and light industry etc.
3. Contact area of the equipment
with materials is made of stainless steel SUS304,which has perfect corrosion—proof performance, and is highly endurable according to GMP requirements.
4. Blender also can be added according customer requirements.
5.Open lid or closed head, customized is available.
Technical Parameters
| model | QJ50 | QJ100 | QJ150 | QJ200 | QJ300 | QJ400 | QJ500 |
| volume | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
| pressure | <0.2 Mpa | ||||||
| evaporating quantity | 30 | 40 | 50 | 65 | 75 | 100 | 150 |
| heating area | 0.4 | 0.45 | 0.76 | 1 | 1.15 | 1.44 | 1.9 |
| energy | 33 | 44 | 55 | 72 | 90 | 110 | 165 |
| weight (kg) | 170 | 190 | 210 | 230 | 320 | 360 | 485 |
| length | 720 | 800 | 1350 | 1400 | 1450 | 1500 | 1600 |
| width | 600 | 650 | 660 | 700 | 800 | 850 | 900 |
| height | 830 | 950 | 1000 | 1100 | 1110 | 1140 | 1150 |
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Advanced Technology Co., Ltd Wenzhou is the a professional beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture the brewing equipment. we can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D etc.
Our staff of sales and technical support is available to help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation. At Advanced Tech., we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
