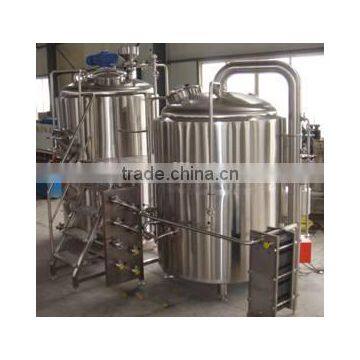

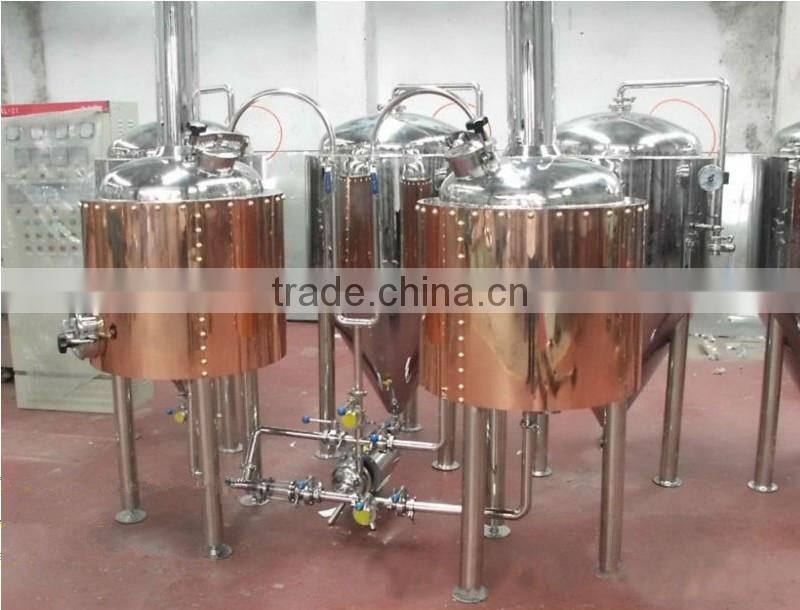

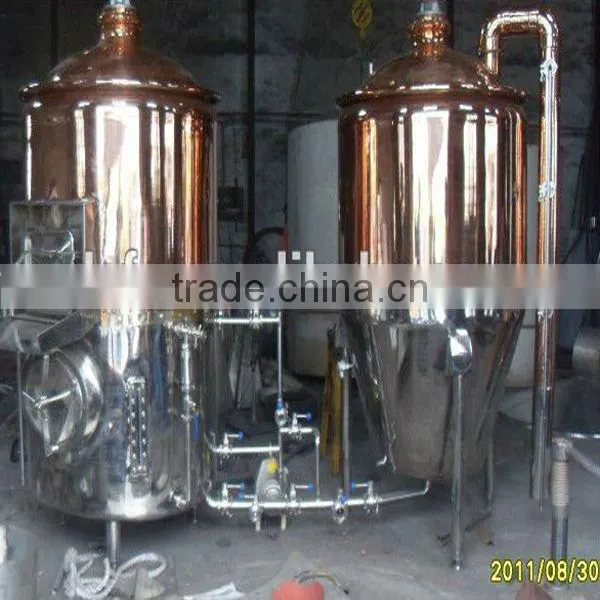

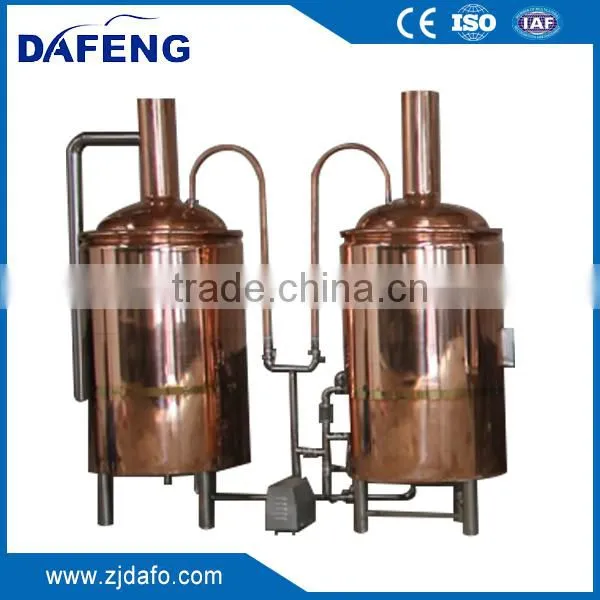

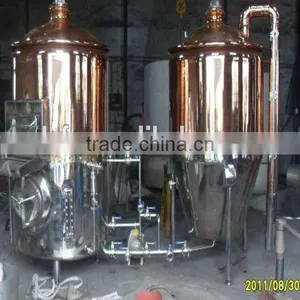

Help Center500L-1000L SUS304 Copper Brew Kettle
Related Products
-
Turnkey Luxury 20hl Pub Micro Brewery(CE Certificate)US$ 500 - 50,000MOQ: 1 Set -
1000l Pub Brewery Mash EquipmentUS$ 1,800 - 9,000MOQ: 1 Set
-
Mash Boiling,lauter/ Whirlpool TankUS$ 500 - 20,000MOQ: 1 Set
-
100L Home Brew Conical Jacket Fermentation TankUS$ 1,400 - 1,583MOQ: 1 Set
-
Ss.1000L Hotel Mash Lauter TunUS$ 1,800 - 9,000MOQ: 1 Piece
Model Number: 500L-1000L Stainless Copper brew kettle
Material:
stainless steel 304
thickness: cylinder 3mm, bottom 4mm
Inner surface treatment:
cold-rolled plates 4mm-thickness, 2B surface treatment, welds grinded to Ra 0,8µm.
External surface treatment:
cold-rolled plates grinded.
Heating:
Cylinder: steam-heating section - max. pressure 4 bars
Conical bottom: steam-heating section - max. pressure 4 bars
Insulation:
Rockwool - thickness 100 mm, both cylinder and conical bottom
External-Jacket:
Stainless steel plate - thickness 1,5 mm, both cylinder and conical bottom
Mash Tun is stainless steel vertical, double-walled, insulated vessel with dished head insulated with polyurethane in the top portion and rock-wool in the steam-heating sections area.
Mash Tun has a 15° conical floor with inverted center for agitator seal. A bottom mounted mash agitator system incorporates offset paddles to ensure thorough mixing of the mash. Paddles are driven by geardrive-motor and are controlled by an AC variable frequency drive.
Mash hydration unit, into which enters an auger transporting malt from grist case, is mounted to the tank head and provides complete hydration of grain.
Vessel heating is provided by two independently controlled steam-heating section with heating capacity 1°C per minute and steam pressure of 4 bar at 150°C temperature. Inlet of steam into heating-sections is controlled from central control panel by electrically operated solenoid valves, depending on temperature and speed of heating. Temperature in the vessel is controlled by thermo-sensor installed in the lower cylindrical part and evaluated by the control system.
A 500 mm round man-way-cover and vent-chimney are placed on the top of dished head.
Tank is equipped in the dished-head with a rotating mechanical sprayball for thorough washing and sanitation.

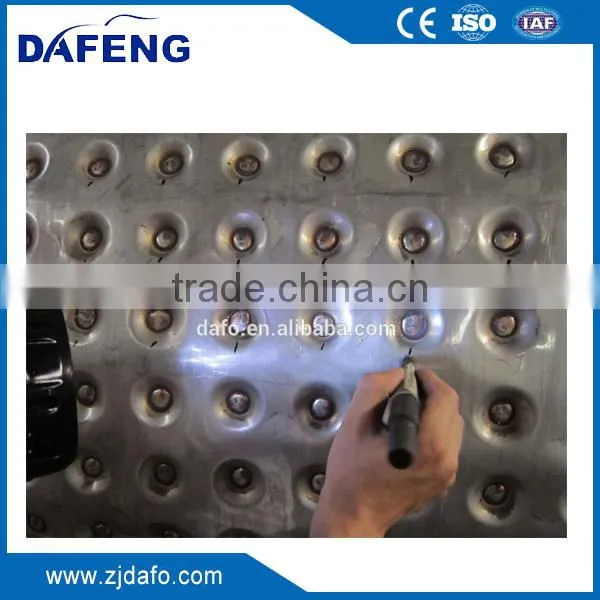

Adopted high efficient heat exchange technology Miller board Jacket, steam onflow technology, to achieve a maximum thermal conductivity, energy saving. At the same time, adopted automatic temperature control technology, ensure the speed of heating, the time of warm keeping during mash and boiler.
Adopted the advanced lift type speed control system, through frequency or self-control to stir. Ensure the mixture is frequently conversion, can maximize the biological activity transformation, ensure the quality of the beer and output .at the headstream.
A whole set of brewery equipment basically including below parts:
Main equipments | 1 | Mash/lauter tank |
SACCHARIFICATION UNIT | 2 | Boiling/whirlpool tank |
| 3 | Hot water tank |
| 4 | Wort pump |
| 5 | Malt miller |
| 6 | Mash pipelines |
FERMENTING UNIT | 1 | Fermentation tanks&Bright Beer tanks |
COOLING UNIT | 1 | Ice water tank/Hot liquor tank |
| 2 | Refrigerator machine |
| 3 | Heat exchanger |
CONTROL UNIT | 1 | Control cabinet for mashing,chilling,fermenting |
CIP UNIT | 1 | Sterilizer tank |
| 2 | Caustic soda tank |
| 3 | Transfer pump |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Choose us and get more benefits:
1. Deliver innovative products in the market at a faster pace;
2. Enhance the reliability of product’s quality;
3. Decrease the total cost of the product effectively;
4. Improve research personnel’s ability of creative design;
5. Gain more leading technologies about product development and increase the competitive advantage of products.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
ØPackaging & Shipping:
Plywood case packing.
1. PE film wrapping for inner.
2. Separate PE bag for fittings .
3. Synthetic fiber paper for corners to avoid possible scratch.
4.Carbon steel transport frame for Large Unit
Shipping by sea. Accept terms: FOB, CIF, C&F etc.
