Best beer equipment made in China
Process
This delicate equipment system contains mainly 9 parts---
---- Malt mill (TY300 ,1set)
300- 500Kg / h, motor power 3.75KW, roller style.
---- Mash boiling tank (600L ,1set)
mirror-polished .
---- Mash lauter/ whirlpool tank (500L,1set)
With inner thickness: 100mm 304 stainless steel;Outside: mirror-polished.
---- Fermentation tank (1000L,8sets)
1240L; effective volume: 1000L; both inside and outside ,stainless steel304. Insulation material ,PU. Temperature measurement method: Bi-metal thermometer temperature.
---- Ice water tank (1000L,1set)
Insulation materials: polyurethane; liner: stainless steel, outer frosted or mirror stainless steel panel; with sewage outfall.
----Wort pump (1set)
Motor Power: 0.75KW, flow: 3 tons / h lift: 15 meters, impeller diameter: 110mm, mash lauter tank,boiling tank, whirlpool sharing
-- Plate heat exchanger (BR0.05-3,1set)
304 stainless steel, the two phase cooling
---- Refrigeration group (Q3.0SA,2sets)
3.75KW, 380V, Freon 22, cooling capacity 5P full-closed
---- Ice water pump (SGR40-6-20,1set)
Voltage 220V, 0.75KW, flow; 3T / H, lift 20 meters, the standard nozzle Path.
---- CIP pump (3T/h,1set)
Motor Power: 0.75KW, flow: 3 tons / h lift: 15 meters, impeller diameter: 110mm
---- wort aerating device (1 entry)
All argon arc welding, made in 304 stainless steel.
---- Wort sugar measuring device (1 pc)
Materials and Processing Technology: All argon arc welding, made in 304 stainless steel.
---- Tower (Single span,2sets)
Finish machining in stainless steel
---- Power cabinet (1set)
Voltage: 380v. Control: heating, rakes, stirring, wort pump, refrigerator, plumbing pumps, temperature and pressure-controlled fermentor system
---- Yeast additional tank (5L,1set)
Total capacity 25 liters, Materials: 304 stainless steel with flanges, Venturi tubes oxygenating.
----Fittings and accessories
Taps(00160,2pcs ) ;Brix Refractometer(0-1020-40 ,2pcs each) ; Supply Line for Beverage & Brewery(12;25;15 meters each) ; Valves ;pipe fittings and joints ; special-purpose tool (a pair of endoscopic wrench); spent grains harrow ; measuring tubes ,etc.

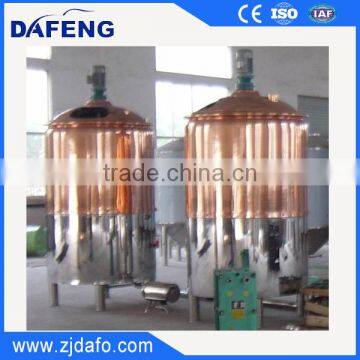

Parts show : brew house
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
