Micro Air Pump 12V (DC brush motor)
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Brand Name: | TOPSFLO | Model Number: | TM30B-A | Theory: | Vacuum Pump |
Structure: | Diaphragm Pump | Usage: | Air Pump | Power: | Electric |
Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery | Pressure: | High Pressure |
Application: | Other, Gas transferring and evacuating |
Product Description
Micro Air Pump 12V (DC brush motor)
You may interest product....
TM30B-A Product Specification
Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
(Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |
TM30B-A | TM30B-A12- P10005 | TM30B-A12-V5505 | 6 /12 / 24 | 0.4/0.24/0.15 | 100 | -55 | 5 |
" P " means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||

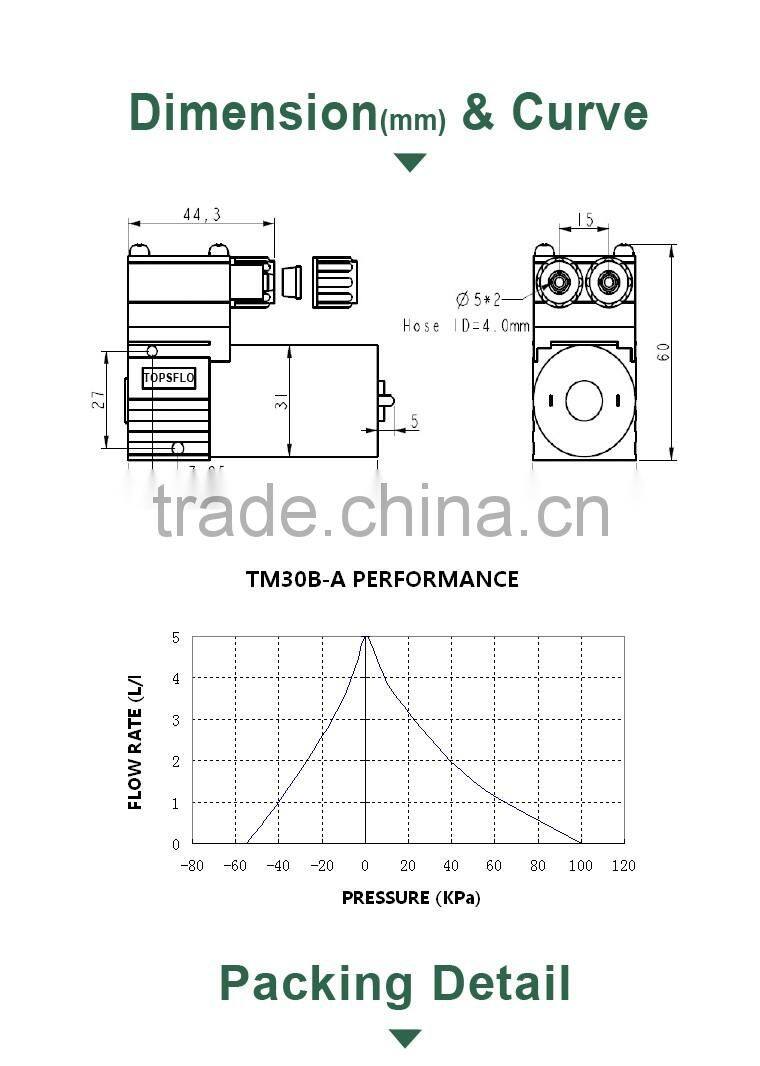

Pump Weight:220g; Pump Size:80mm*31mm*60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||
Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | |||||||

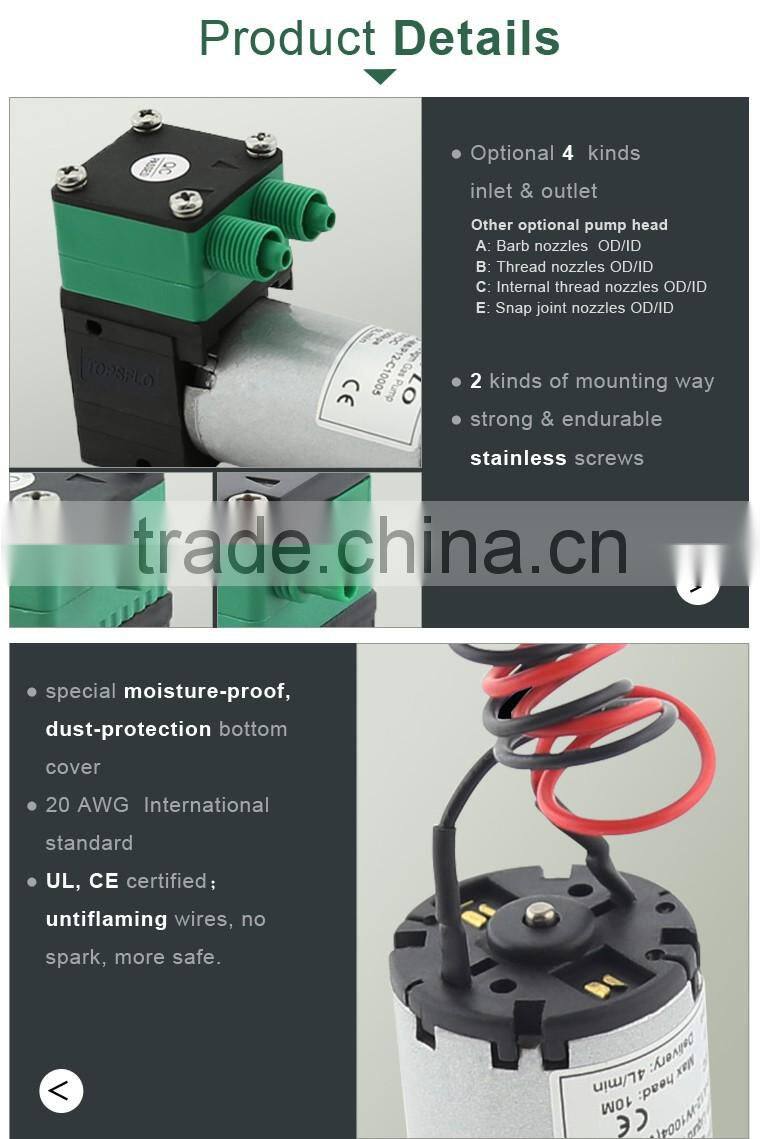

Motor type and code:“A”:premium duty brush DC motor (reference lifetime 3,000hours),longer endurance lifetime than other normal DC membrane pump Comparing with the TZ economic series, pump with general more stable and higher performance for it's importing bearing, higher endurance membrane. |
• Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
• Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
• Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
• Uncontaminated flow
No contamination of the media due to oil-free operation
• Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
• High level of gas tightness
Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
• Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other material combinations for the parts which allows the corrosive gas to be pumped.
• Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..
