Product Details

Brand Name:	TOPSFLO	Model Number:	TL-B03H	Theory:	Centrifugal Pump
Structure:	Single-stage Pump	Usage:	Water	Power:	Electric
Standard or Nonstandard:	Standard	Fuel:	Other, DC power, Battery, Solar panel	Pressure:	Other, High pressure
Application:	Other, Liquid transfer or circulating

Product Description

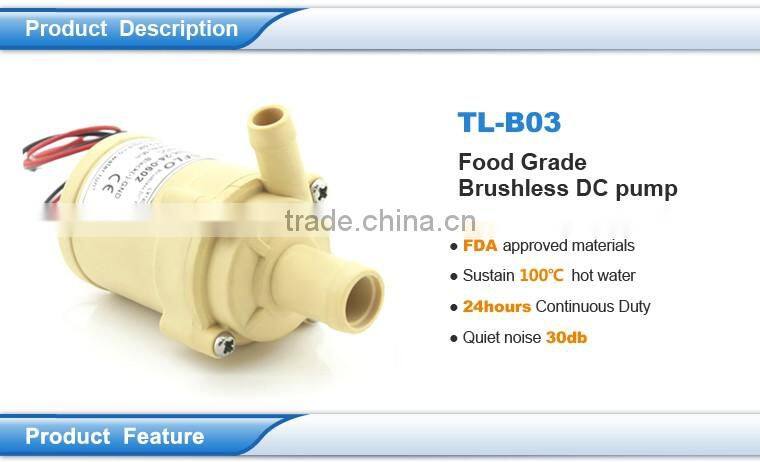

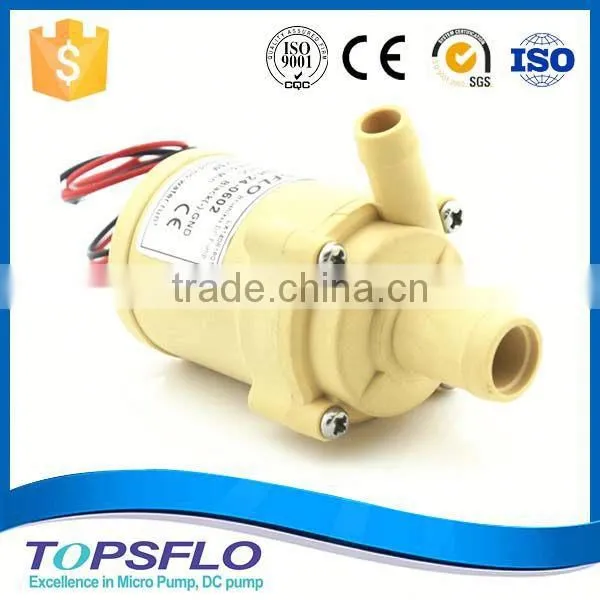

100 celsius centrifugal FDA food grade machine dc 12v mini pump

You may interest product....

Product Description

•.Advanced magnetic driving technology for static-seal,without any leakage forever
•.High efficiency ECM brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials FDA approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68, submersible directly
•.Blocked protection

Max Flow Rate	4.5L/MIN,6.5L/MIN
Max Static Lift	1.5M,2.5 M
Rated Voltage	12V or 24V
Impeller Type	Open impeller
Food Grade(Y/N)	Y
Liquid Temperature	0-100°C
Pump Theory	Centrifugal pump
Motor Type	Brushless DC motor
Working Voltage Range	9V-14V or 18V-26V
Power Consumption	3 ~5W
Noise Class form 1M	35dB /Max
Ideal Life Time	20000 Hours
Working Mode	Continuous
OD of Inlet	14.4 mm
OD of Outlet	9.8 mm
Dimension	84.8x36.7x36.7 mm
Weight	200 g
Power Supply	DC power supply, battery, solar powered
Remarks	Can’t dry-running, not Self-priming

Typical Application

Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser

Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory

Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress
