Magnetic Drive Micro Gear Mini AC Motor Pump ( AC motor, 220VAC / 380VAC)
- 50000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Brand Name: | TOPSFLO | Model Number: | MG300XK/220AC | Theory: | Rotary Pump |
Structure: | Gear Pump | Usage: | Other, Water, oil, various liquid | Power: | Electric |
Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery | Pressure: | High Pressure |
Application: | Other, Various liquid transfer or boosting |
Product Description

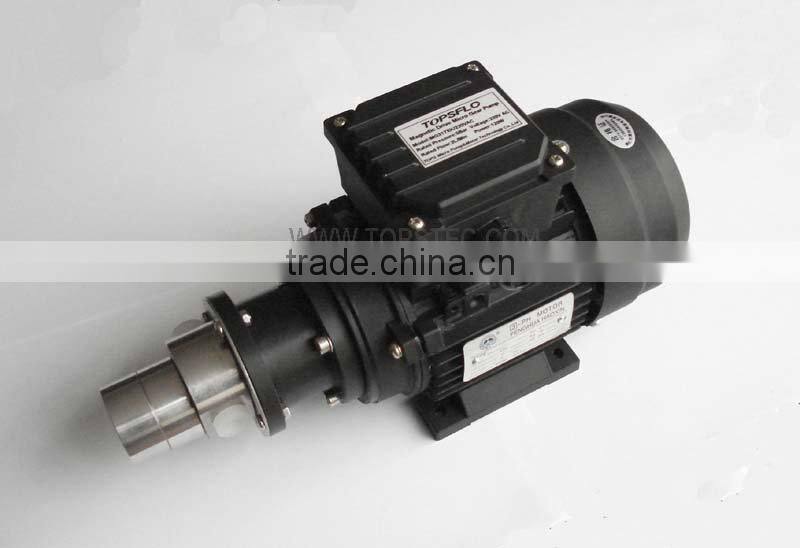

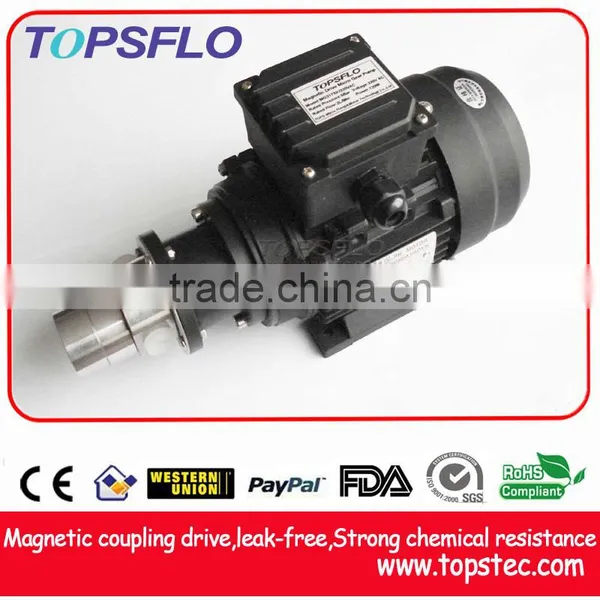

Magnetic Drive Micro Gear Mini AC Motor Pump ( AC motor, 220VAC / 380VAC)
OEM and ODM service are avaiable under your request
1. Using magnetic coupling drive without leakage, 316 stainless steel shell, PEEK gear, | ||||||
PTFE materials for the static sealing and bearing. Use 220VAC or 380VAC micro motor, the flow can be realized | ||||||
adjustment without steps. | ||||||
2. Pump can be used in the -0.1 Mpa~2Mpa closed systems, the rated output pressure is 0.7 Mpa (medium: water), | ||||||
the highest output 1.0 Mpa pressure, flow rate 500~4500 ml / min. | ||||||
3. Widely used in medical machinery, fine chemicals, water treatment printing, cleaning, packaging, food processing, . | ||||||
and other areas of liquid delivery |
Normal Parameters:
1. Altitude: ≤ 2500 M
2. Humidity environment: ≤ 85%
3. Fluid viscosity: 0 ~ 3000 CPS
4. Ambient temperature: -10 ~ 50 °C
5. Fluid temperature: -10 °C ≤ T ≤ 100 °C (except for the freezing)
6. Working way: continuous working
7. Apply the media of: acid and alkali, salt, organic solvents, oils.
8. Lifetime above 6000hours
Model | Rated Pressure (Bar) | Max Flow scope (ml/Min) | Power (W) | Voltage (V) | Inlet/Outlet Diameter | Phase / Hz |
MG312XK/AC220 | 7 | 3000 | 120 | AC220 | G1/4" | 1 phase / 50Hz |
MG317XK/AC220 | 7 | 4500 | 120 | AC220 | G1/4" | 1 phase / 50Hz |
MG312XK/AC220B | 7 | 500-3000 | 180 | AC220 | G1/4" | 3 phase / 50Hz |
MG317XK/AC220B | 7 | 800-4500 | 180 | AC220 | G1/4" | 3 phase / 50Hz |
MG312XK/AC380 | 7 | 500-3000 | 180 | AC380 | G1/4" | 3 phase / 50Hz |
MG317XK/AC380 | 7 | 800-4500 | 180 | AC380 | G1/4" | 3 phase / 50Hz |
Note: 1. "04" means the gear with the height of 4mm, "09" means 9mm, "13" means 13mm . | ||||||
2. if needed : "L" limited pressure valve, " R " non return valve , please specially specify in advance. | ||||||
3. if needed "60Hz", please specially specify in advance. |
OEM and ODM service are avaiable under your request.
The specifications only for reference, for details, please contact with us!
