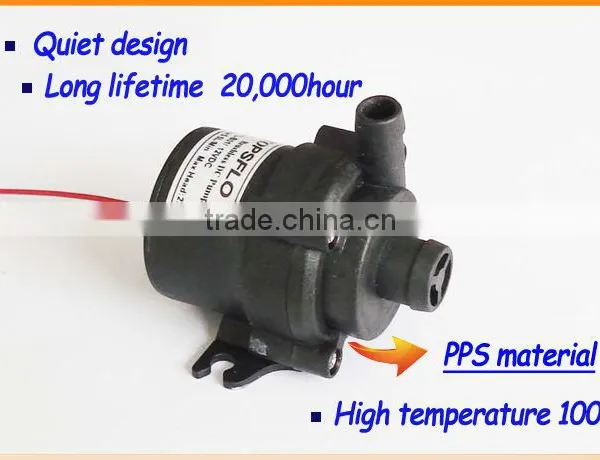

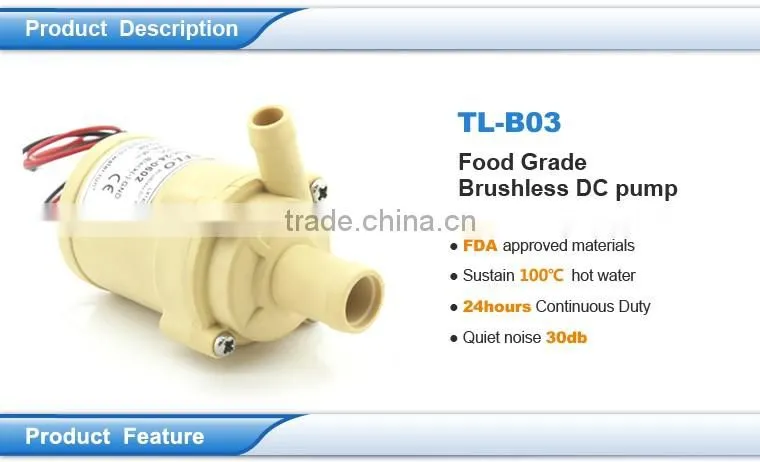

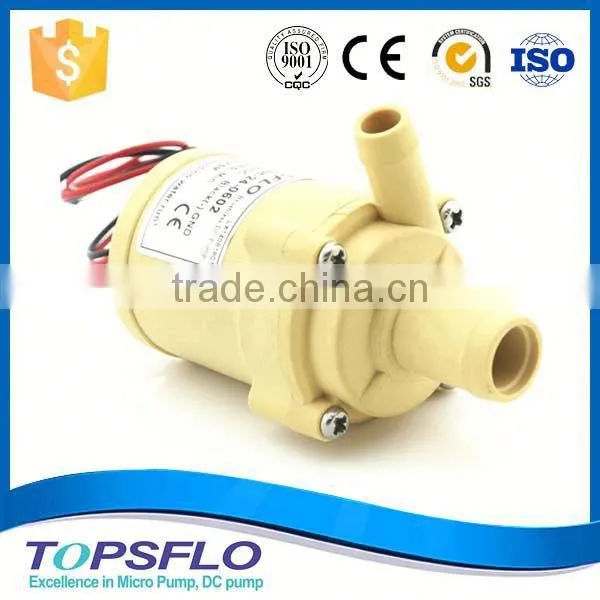

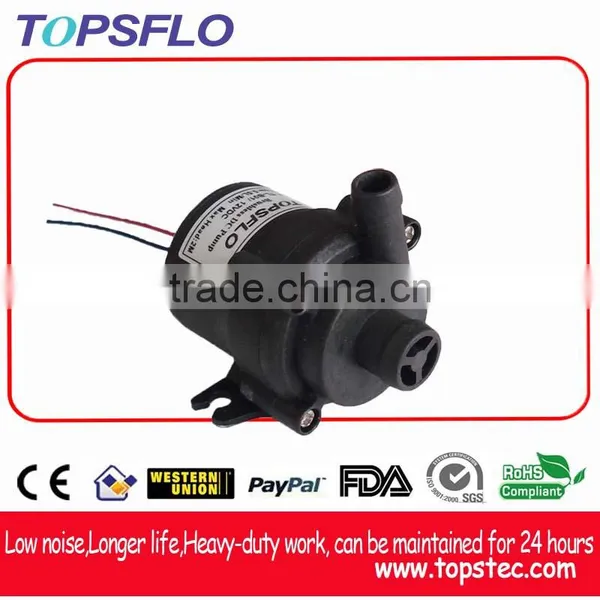

BLDC centrifugal long lifetime silent circulating hot water boiler mat pump
You may interest product....
|
|
|
|
|
•.Advanced magnetic driving technology for static-seal,without any leakage forever
•.High efficiency ECM brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials FDA approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68, submersible directly
•.Blocked protection

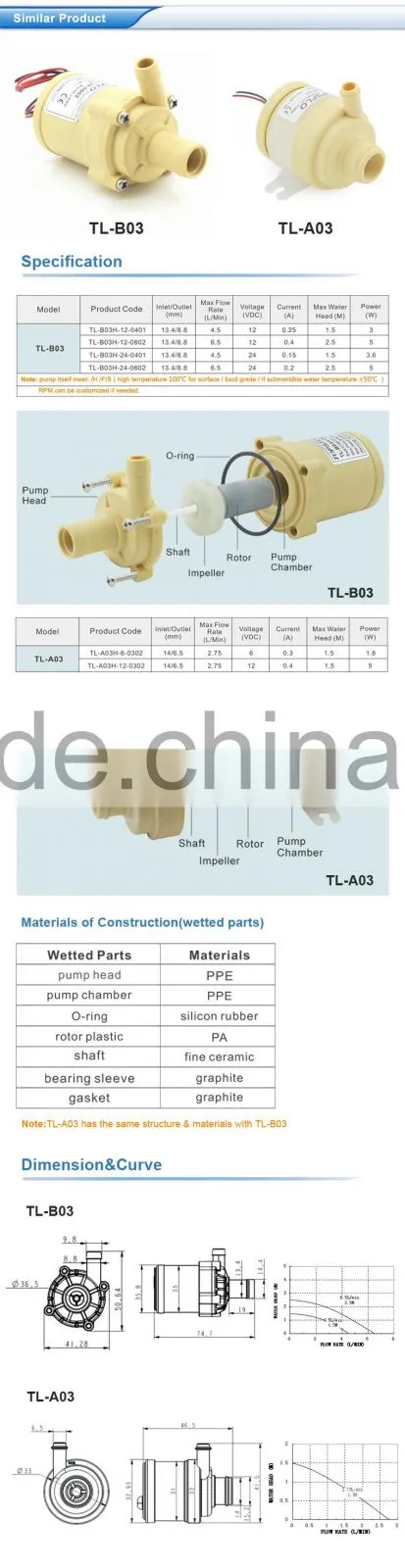

| Max Flow Rate | 4.5L/MIN,6.5L/MIN |
| Max Static Lift | 1.5M,2.5 M |
| Rated Voltage | 12V or 24V |
| Impeller Type | Open impeller |
| Food Grade(Y/N) | Y |
| Liquid Temperature | 0-100°C |
| Pump Theory | Centrifugal pump |
| Motor Type | Brushless DC motor |
| Working Voltage Range | 9V-14V or 18V-26V |
| Power Consumption | 3 ~5W |
| Noise Class form 1M | 35dB /Max |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| OD of Inlet | 14.4 mm |
| OD of Outlet | 9.8 mm |
| Dimension | 84.8x36.7x36.7 mm |
| Weight | 200 g |
| Power Supply | DC power supply, battery, solar powered |
| Remarks | Can’t dry-running, not Self-priming |
Typical Application
Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser
Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory
Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress
