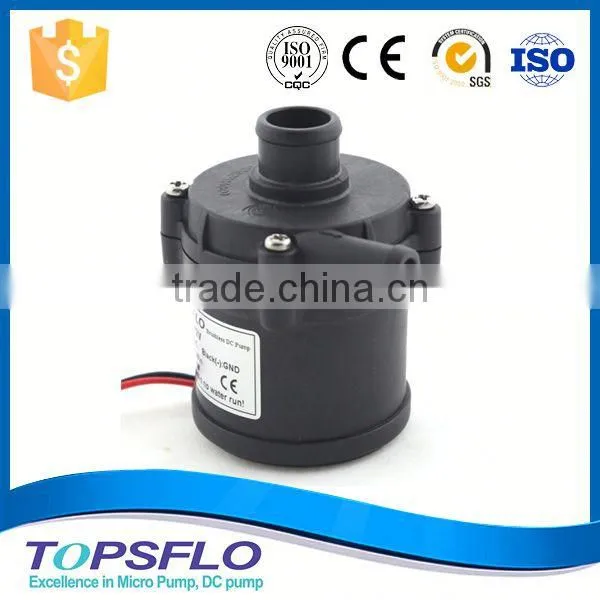

brushless silent environmental cool and warm water mattress pump
Welcome here ! Yes, as you can see, this is the most ultra quiet pump TL-B09, noise lower than 26dB. It is best for water heating mattress, floor heating, computer cooling system,boiler, water circulation system etc. Bringing you and your family quiet and comfortable enviroment and enjoying the good life !

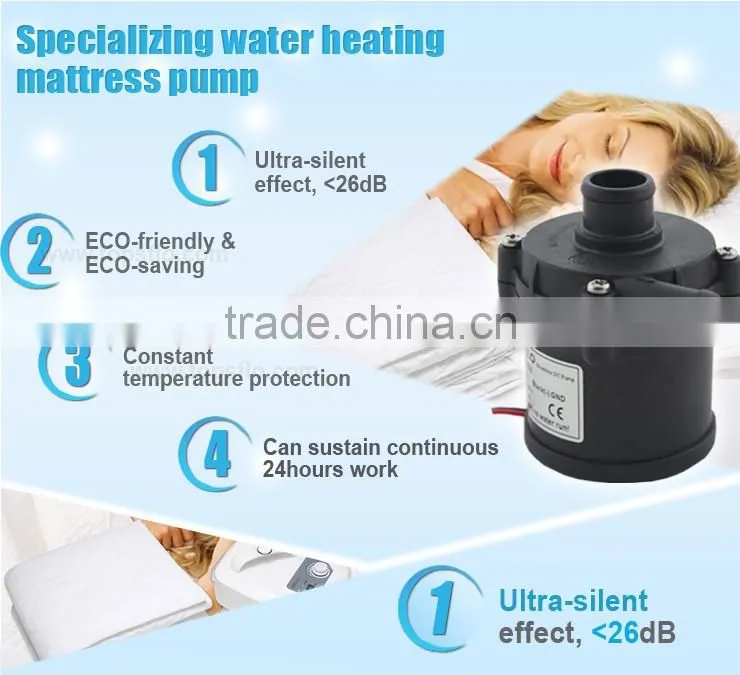

• Ultra-silent effect, <26dB • ECO-friendly & ECO-saving
• Constant temperature protection • Can sustain continuous 24hours work
|

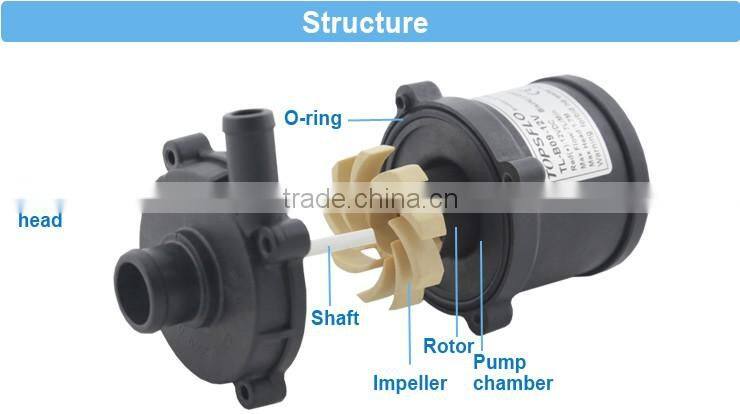

1.Special ingenuity design |
| 2.Suspended running, No friction | |
| 3.Ultra-silent effect, <26dB | |
| 4.A key breakthrough VS traditional frictional one | |
| 5.Increase >40% pump performance |
| 1. advanced magnetic driving technology for static-seal,without any leakage forever |
| 2. heavy duty work,can sustain continuous 24hours work |
| 3. high efficiency ECM brushless DC motor with long lifetime 20,000hours |
| 4. motor optimum design for lower power consumption and start voltage 6V |

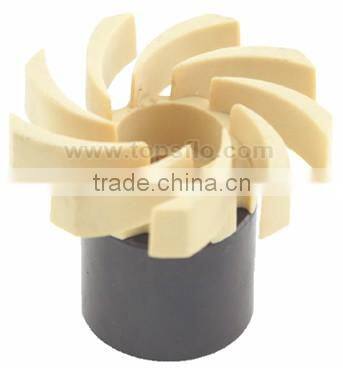

| 5. suspension durable permanent magnetic rotor/impeller for ultra quiet noise |
| 6. noiseless graphite material bearing |
| 7. sustain 70°C hot water circulation |
| 8. IP protection level: IP66 |
| 9. low or no maintenance |

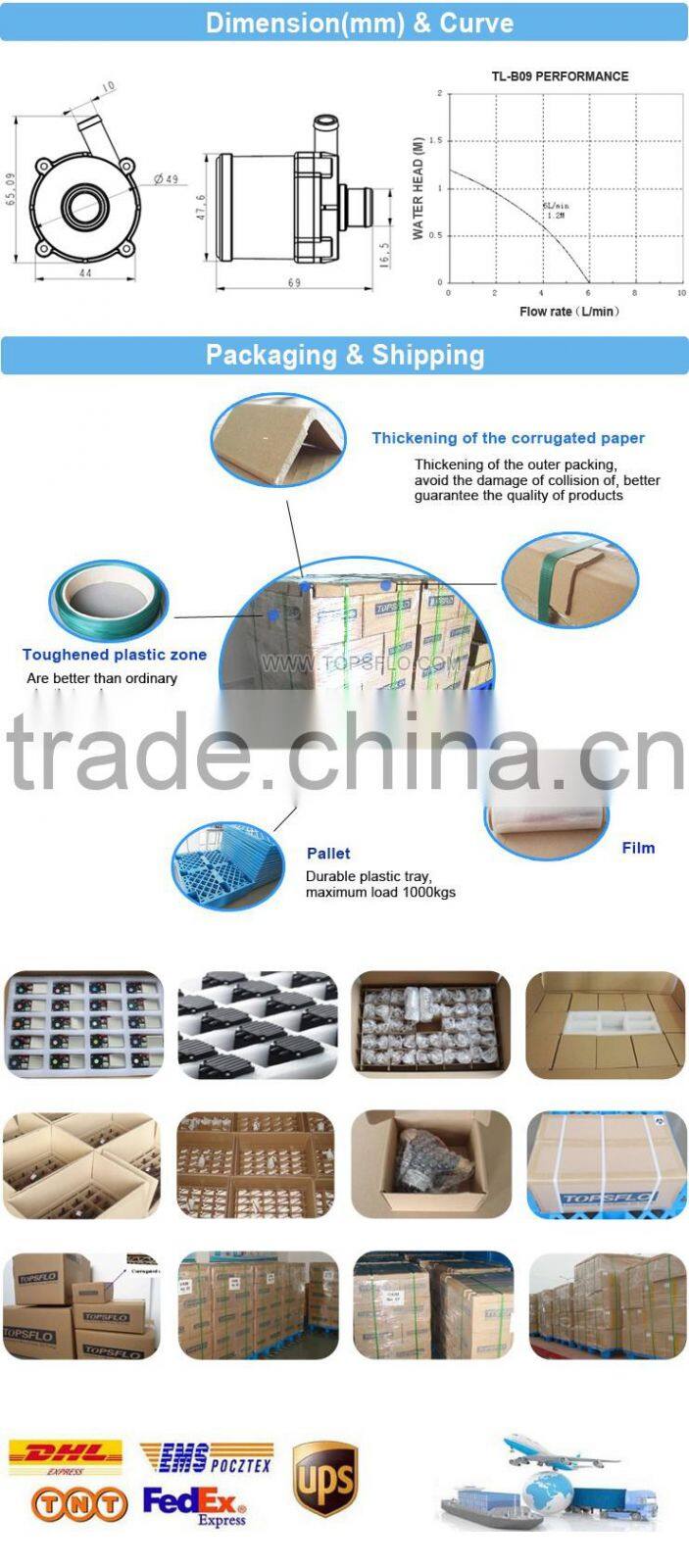

| Parameters: | |||||||
| Model | Product Code | Inlet/Outlet(mm) | Max Flow (L/Min) | Rated Voltage (DC) | Current (A) | Max Water Head (M) | Power (W) |
| TL-B09 | TL-B09-12-0601 | 16.8 / 10 | 6L | 12VDC | 0.25 | 1.2M | 3 |
| Customization Available: PWM, RPM can be customized if needed. | |||||||
| Weight(/piece) | 180g | Notes: |
| Inner boxes in firm carton | 100pcs/carton | 1, Print TOPSFLO brand label & Stick pump item label |
| Outer carton size | 57.5*37.5*23.5cm | 2, Packed with bubble bag inside |
| N .W | 18kgs | 3, Plastic bag |
| G.W | 20kgs | 4, Outside packed with carton box |
Delivery time
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
Helpful Tips:
If you need more product information:
1, Please scan the above 2-D Barcodes
2,To view more videos please enter "TOPSFLO" on YouTube to find a video of our micro pump.
1. Are you manufacturer?
A: Yes,we are. We have our own patent technology.
2. How many pieces can you produce every month?
A: We can produce 10,0000PCS projectors every month.
3. Do you accept OEM?
A: Yes and we are doing OEM for many famous brand in the market.
4. How long should I wait to get the machine after payment?
A: We will send out machines in no more than 5 days by courier.
5. Do your have any warranty?
A: We provide worldwide 1 year warranty for any part of the machine in normal using condition
6. What's the best selling markets of this pump?
A: For Hot Water Mattress application, most our cooperation clients comes from Korea & Austria. We have over 10years rich experience in this field, our clients satisfied with the pumps quality & price & performance very much .
7. How you judge Hot Mattress application?
A: Water heating mattress is very safe & eco-friendly, it is getting more & more popular, especially for pregnant women, the elderly, infants and young children !
