Home > Products > Printer& Packaging > Mini Size dc Motor Electric Ink Pump for Oil Based, Oil Based Ink Pump

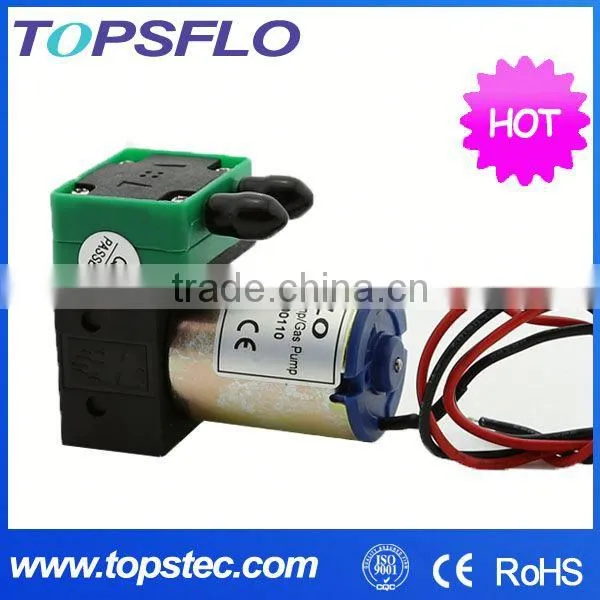

Mini Size dc Motor Electric Ink Pump for Oil Based, Oil Based Ink Pump
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Flow Rate 0.15~1L/min Small Ink Pump for Wide Format Inkjet Printers
-
TOPSFLO DC Diaphragm Ink Pumps
-
TOPSFLO Coding and Marking Printing Machine Ink Pump TF30A
-
DC Mini Diaphragm UV-LED Inkjet Pump
-
DC Brushless Motor Corrosion Resistance Desktop Inkjet Printer Pump
-
DC 6V 12V 24V Pump for Inkjet Scanners
Product Details
| Brand Name | TOPSFLO | Model Number | TF28 | |
| Theory | Vacuum Pump | Structure | Diaphragm Pump | |
| Usage | Water | Power | Electric | |
| Standard or Nonstandard | Standard | Fuel | Other, DC power, Battery | |
| Pressure | Low Pressure | Application | Other, Gas transferring and evacuating |
Product Description

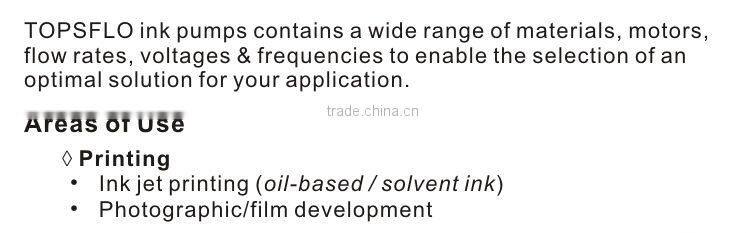

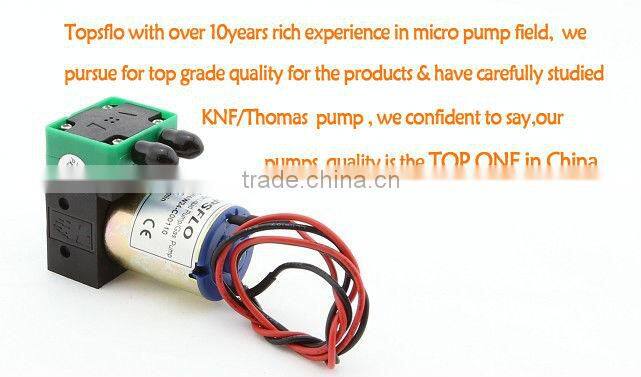

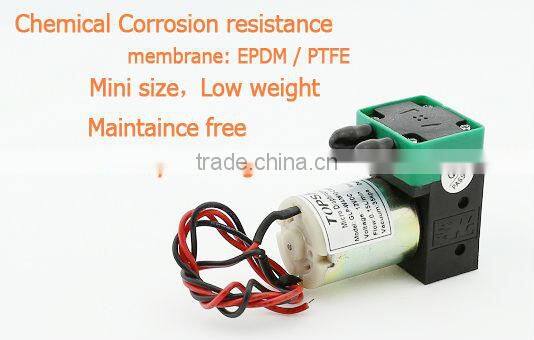

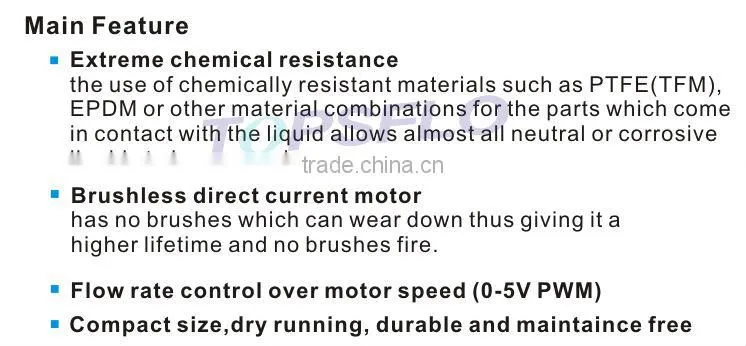

mini size dc motor electric ink pump for oil based, oil based ink pump
Technical Date
Brand name | TOPSFLO | ||

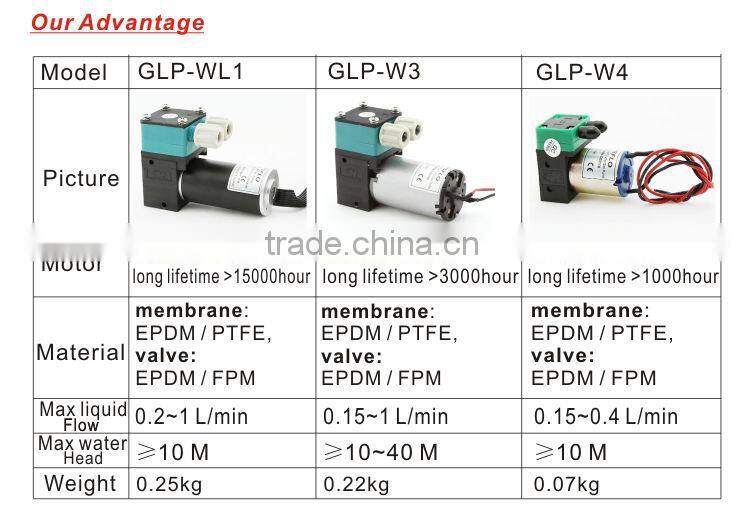

Model | GLP-W4 | ||
voltage(DCV) | 6V | 12V | 24V |
Pump head | nylon | nylon | nylon |

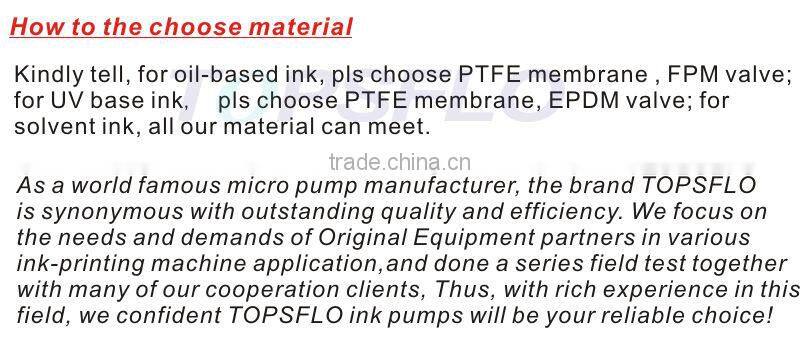

Diaphragms | EPDM /PTFE | EPDM /PTFE | EPDM /PTFE |
Valves | EPDM /FPM | EPDM /FPM | EPDM /FPM |
Operating voltage range(v) | DC6-12 | DC6-12 | DC12-24 |
Starting time(s) | 0.02 | 0.02 | 0.02 |
I max. (A) | --------- | --------- | 0.078 |
Power consumption | --------- | --------- | 0.86 |
Motor protection factor | IP00 | IP00 | IP00 |
Max flow (ml/min) | 150 | 150 | 150 |
Max water head (M) | ≥10M | ≥10M | ≥10M |
Max vacuum( kpa) | -35 | -35 | -35 |
Low noise(dB) | <50 | <50 | <50 |
The interface of pipe(mm) | 6x4 | 6x4 | 6x4 |
High Weight (kg) | 0.07 | 0.07 | 0.07 |
Lifetime(h) | 1000 | 1000 | 1000 |

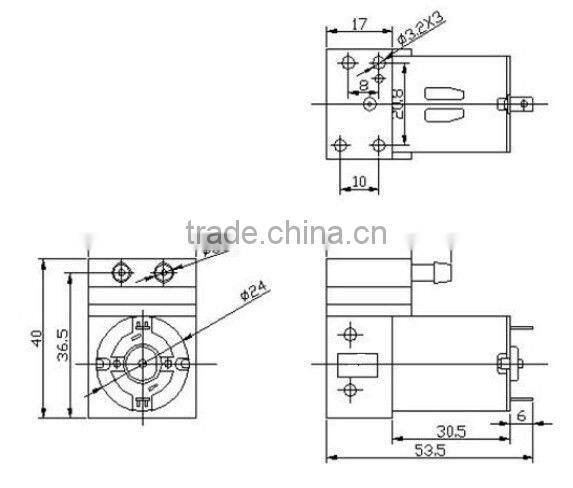

Dimension(mm)
