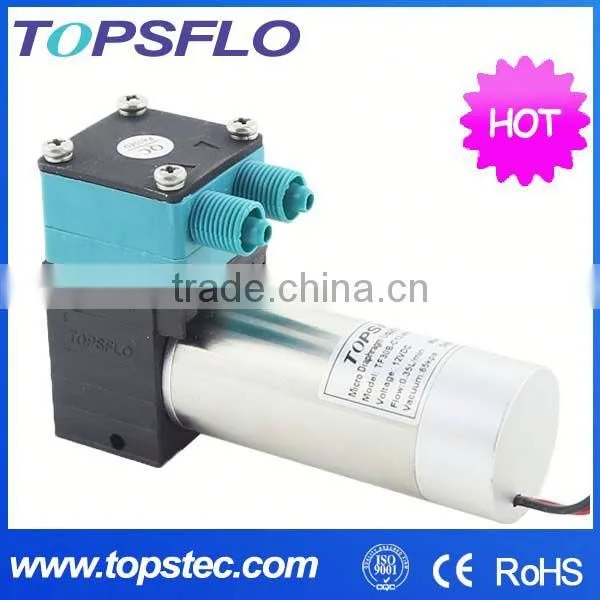

6v 12v 24v dc Brushless Diaphragm 4 Color Inkjet Plotter Pump

6v 12v 24v dc brushless diaphragm 4 color inkjet plotter pump

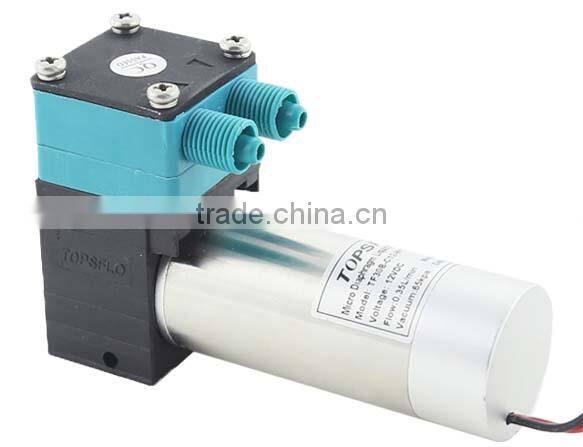

Product Show

Picture	Liquid Pump	vacuum Pump	Motor	Material
	(Model Number)	(Model Number)	Lifetime
	TF30A-A12-W1004                     (0.15-1L/min, ≥10-40M)	TM30A-A                     (6L/min, 120KPa, -70KPa)	DC brush motor                   Long life span >5,000 hour	Membrane: PTFE / EPDM Valve: EPDM / FPM / FFPM
	TF30A-C12-W1004                   (0.15-1L/min, ≥10M)	TM30A-A                     (4L/min, 120KPa, -70KPa)	DC Coreless Brushless motor               Long life span >15,000 hour	Membrane: PTFE / EPDM Valve: EPDM / FPM / FFPM

Technical Fetures

Ⅰ. Motors

Motor is to a pump what heart is to a person.  Compared with (some other brand) markets common pumps, TOPSFLO is featured with the following advantages.

 ♦  Optional motor type

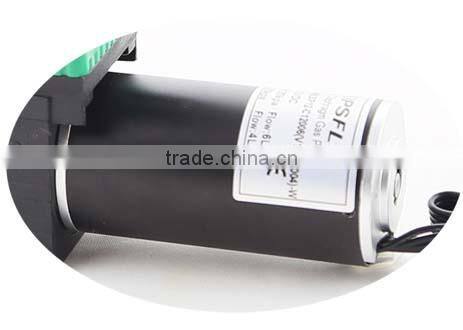

	A type : Premium duty brush DC motor (reference lifetime 5,000hours)
	H type:brushless DC motor (long lifetime reference 10,000hours)
	C type:Coreless brushless DC motor with dual ball bearings (long lifetime 15,000hours)

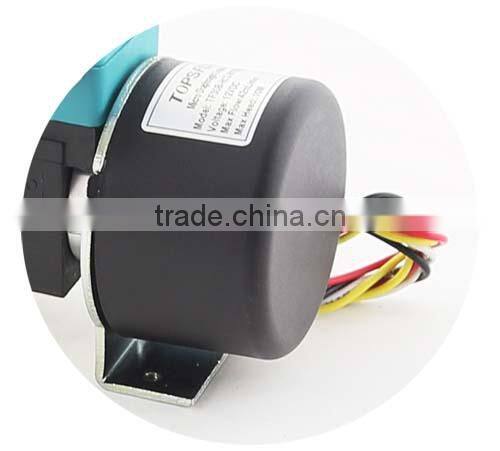

	D type:Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours)

♦  Longer Lifetime

♦  less electromagnetic interference

Equiped with anti-electromagnetic interference capacitors, Topsflo pumps cause little interference to your facility.

♦  less temperature rise

Are you bothered if pump gets heat soon when it's working in your facility? Topsflo adopts the most advanced technology as KNF does, the pump won't get much heat during working,especially outside controller models.

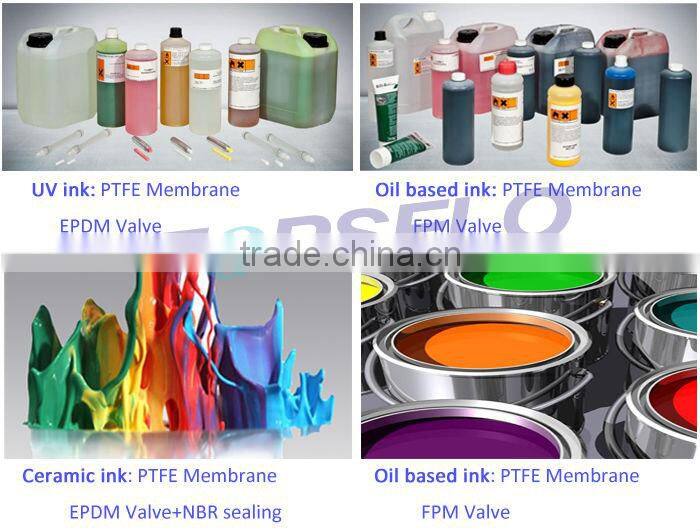

Ⅱ. Optional Materials Compatible with Various Types of Ink

The use of chemically resistant materials such as PTFE(TFM), EPDM or other material combinations for the parts which come in contact with the liquid allows almost all neutral or corrosive inks to be pumped.

 Other printer types:

        1.Wide Format Graphics and Industrial Printer

        2.Inkjet Digital Printing Machines for Textile industry

        3.Labelling machine printer

        4.CIJ small character printer

        ding system

        6.barcode printer etc.

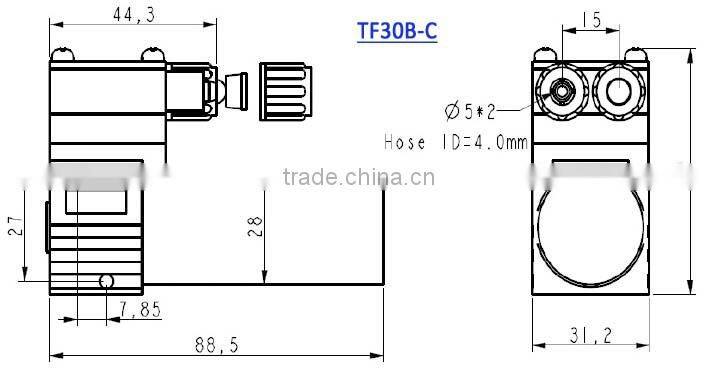

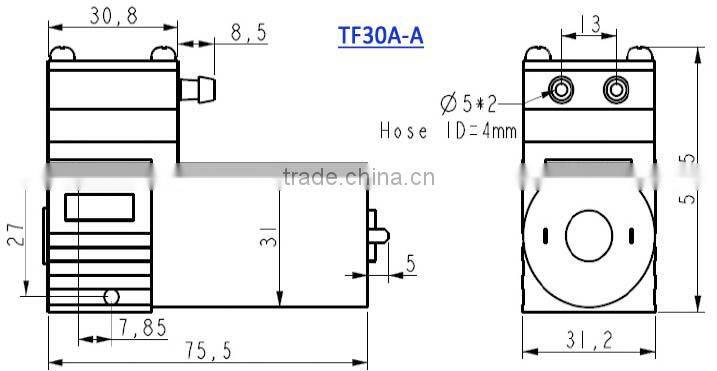

 Dimension(mm)     1 inch=25.4mm

Main Cooperative clients

Packaging

FQA

Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.

Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
   2.The batch order can be shipped to you in about 30-40days after order confirmation (by vacuum or by sea)

Q: What's your main products of your company?
A: We specialized in all kinds of micro pumps(micro BLDC centrifugal water pump,micro gear pump,high performance diaphragm vacuum/liquid pump )for over 10 years with excellent quality and competitive.

Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.

Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice

As a world famous micro pump manufacturer, the brand TOPSFLO is synonymous with outstanding quality and efficiency. We focus on the needs and demands of Original Equipment partners in various ink-printing machine application,and done a series field test together with many of our cooperation clients, Thus, with rich experience in this field, we confident TOPSFLO ink pumps will be your reliable choice!

For more detail, please feel free contact us !
