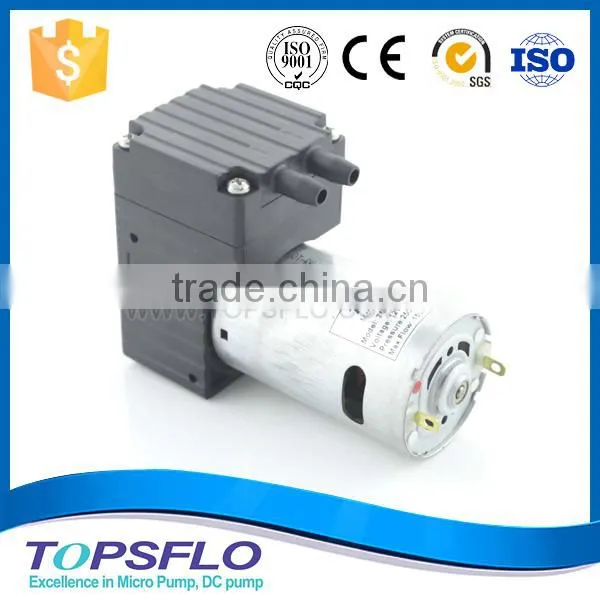

Experienced Small Vacuum pump China Supplier
Product Specification
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |

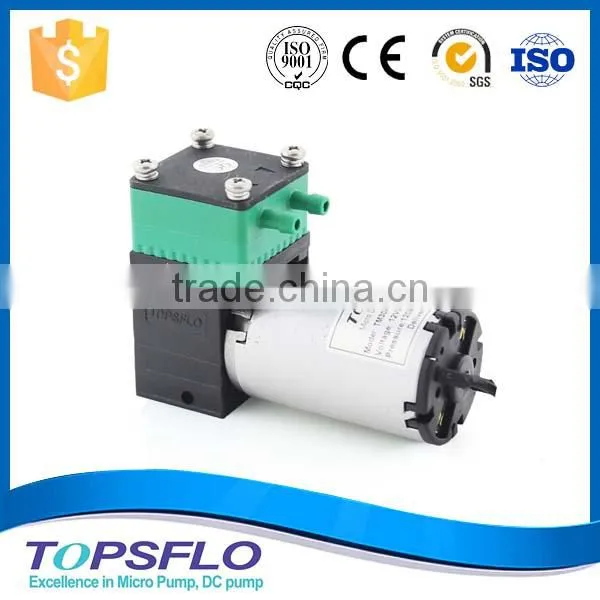

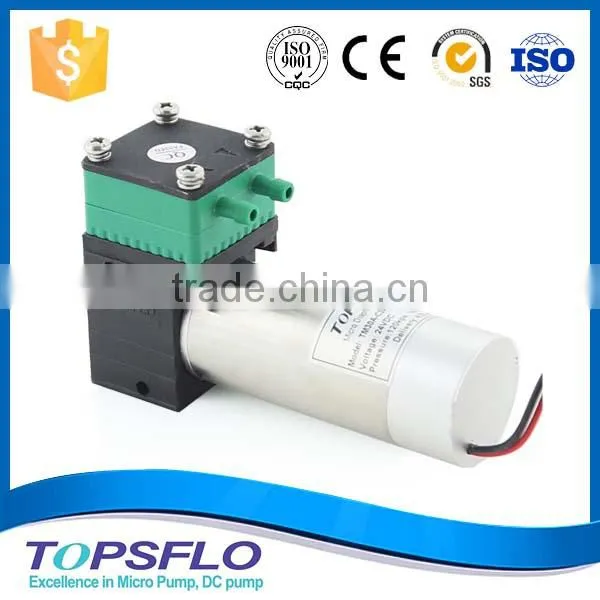

| TM30A-A | TM30A-A12- P12006 | TM30A-A12-V7006 | 6 /12 / 24 | 0.4/0.24/0.15 | 120 | -70 | 6 |
| " P " means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||

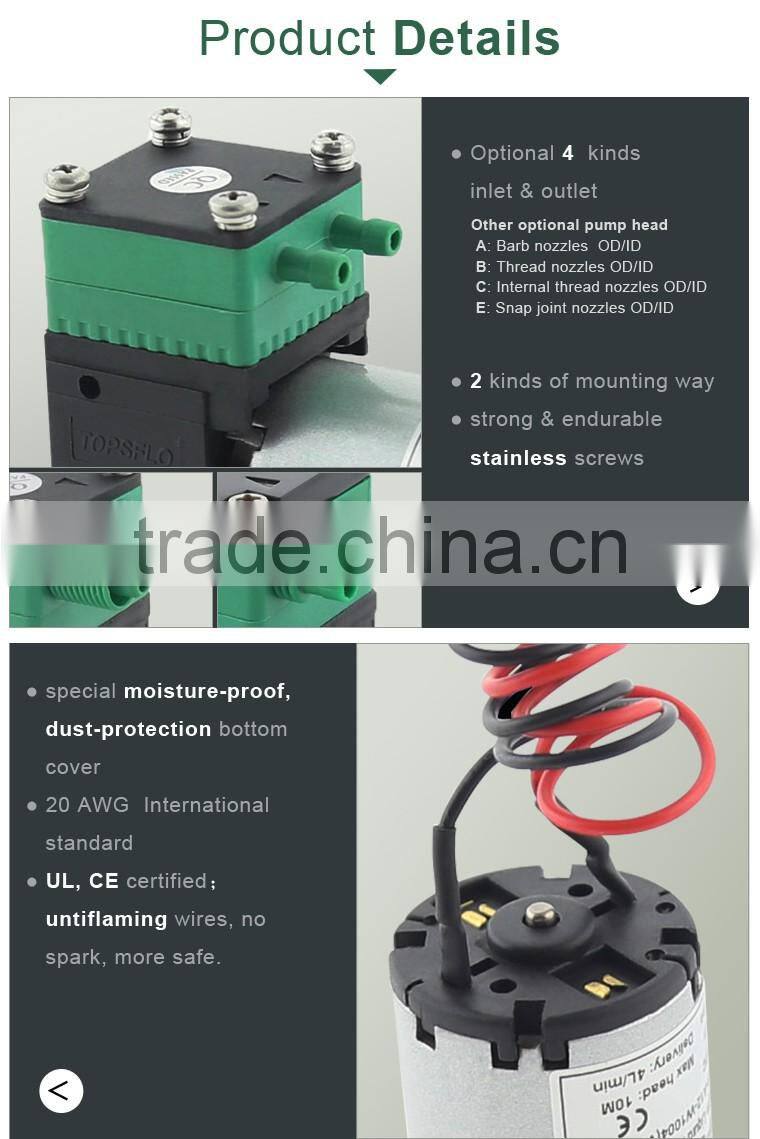

| Pump Weight:220g; Pump Size:80mm*31mm*58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | |||||||

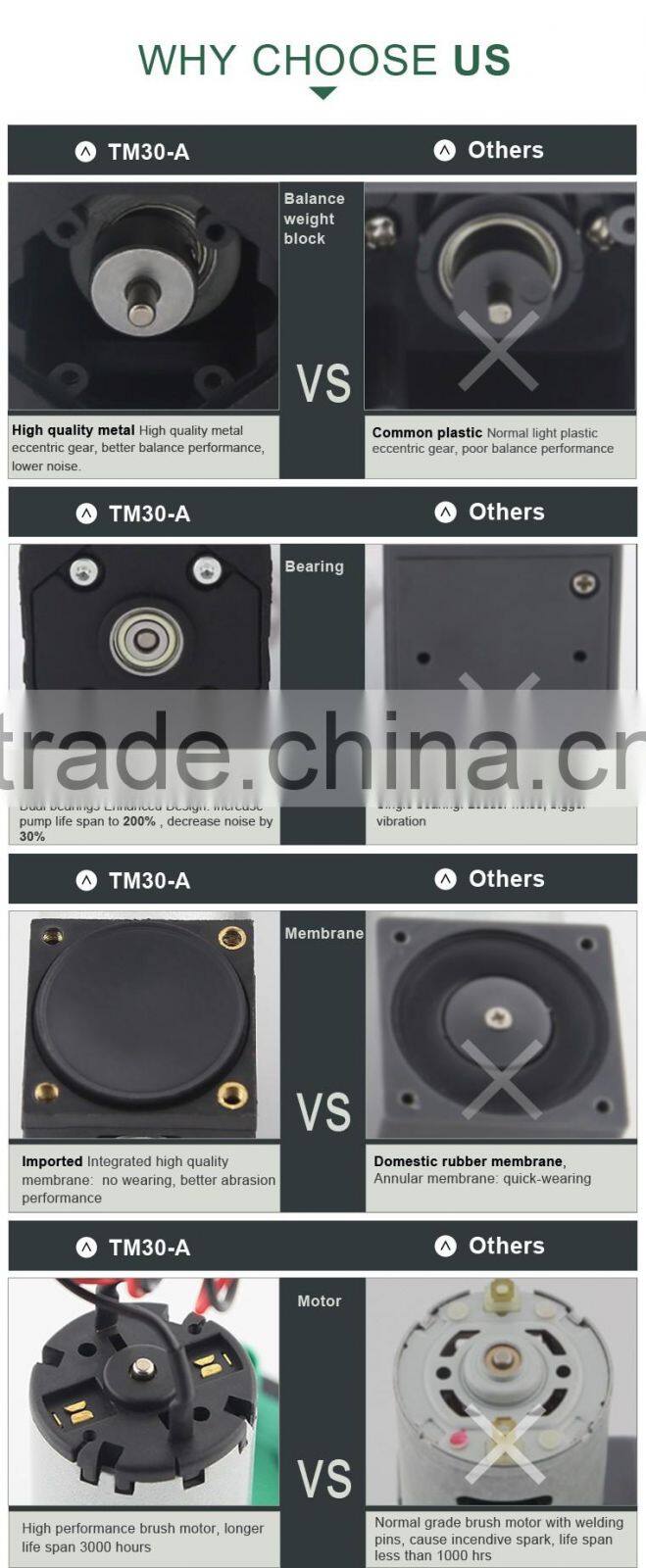

| Motor type and code:“A”:premium duty brush DC motor (reference lifetime 5,000hours),longer endurance lifetime than other normal DC membrane pump | |||||||
• Highest Performance/Size Ratio

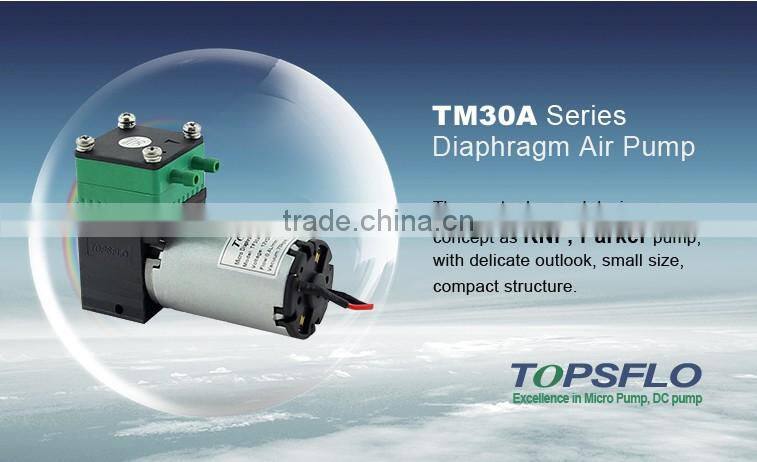

Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
• Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
• Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
• Uncontaminated flow
No contamination of the media due to oil-free operation
• Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
• High level of gas tightness
Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
• Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other material combinations for the parts which allows the corrosive gas to be pumped.
• Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..

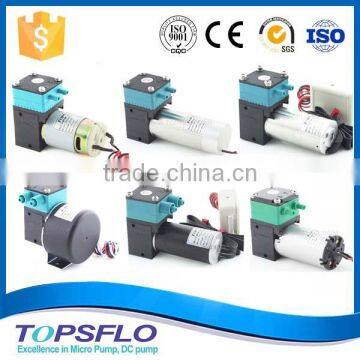

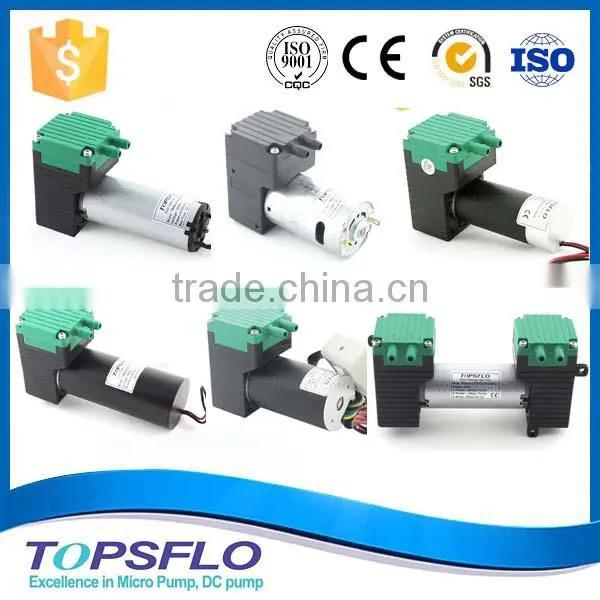

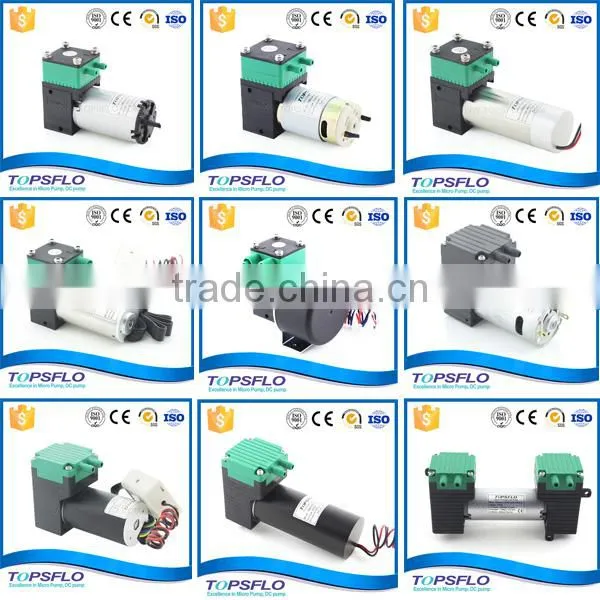

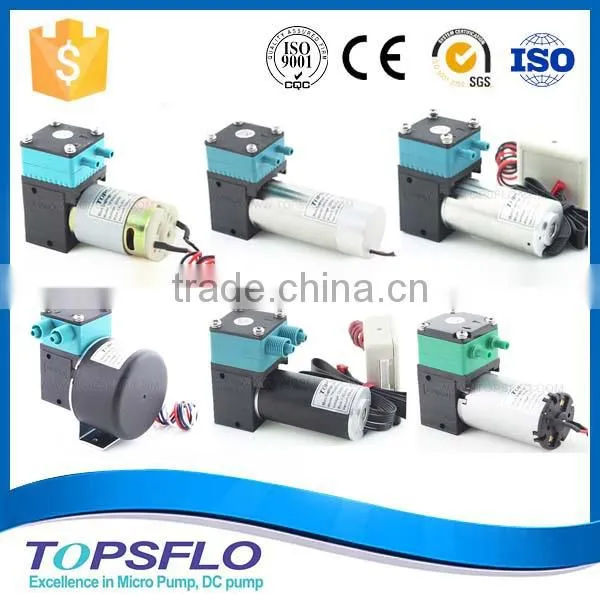

Small diaphragm air pump/ vacuum pump TM series
| Model | Product Name |
| TM30A-A | Brush small air pump/vacuum pump |
| TM30A-B | Brush small air pump/vacuum pump |
| TM30A-C | Brushless small air pump/vacuum pump |
| TM30A-D | Brushless small air pump/vacuum pump(PWM 0-5V speed control) |
| TM30B-A | Brush small air pump/vacuum pump |
| TM30B-C/D | Brushless small air pump/vacuum pump(PWM 0-5V speed control) |
| TM30B-H | Brushless small air pump/vacuum pump |
| TM40-A | High pressure /vacuum brush air pump |
| TM40-B | High pressure /vacuum brush air pump |
| TM40-C | High pressure /vacuum brushless air pump |
| TM40-E/F | High pressure /vacuum brushless air pump (PWM 0-5V speed control) |
| TMD40-F | High pressure /vacuum brushless air pump (PWM 0-5V speed control) |
♦ Small Diaphragm liquid pump/vacuum pump TF series
| Model | Product Name |
| TF30A-A | Brush mini vacuum pump/liquid pump |
| TF30A-B | Brush mini vacuum pump/liquid pump |
| TF30A-C/D | Brushless mini vacuum pump/liquid pump (PWM 0-5V speed control) |
| TF30B-A | Brush mini vacuum pump/liquid pump |
| TF30B-C/D | Brushless mini vacuum pump/liquid pump (PWM 0-5V speed control) |
| TF30B-H | Brushless mini vacuum pump/liquid pump |
| TF30D-C/D | Brushless mini vacuum pump/liquid pump (PWM 0-5V speed control) |
If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the plumbing configuration, and we will be happy to advise. We aim to ensure customers get what they need, and we won't try and sell you something that is not suited to your requirements!
