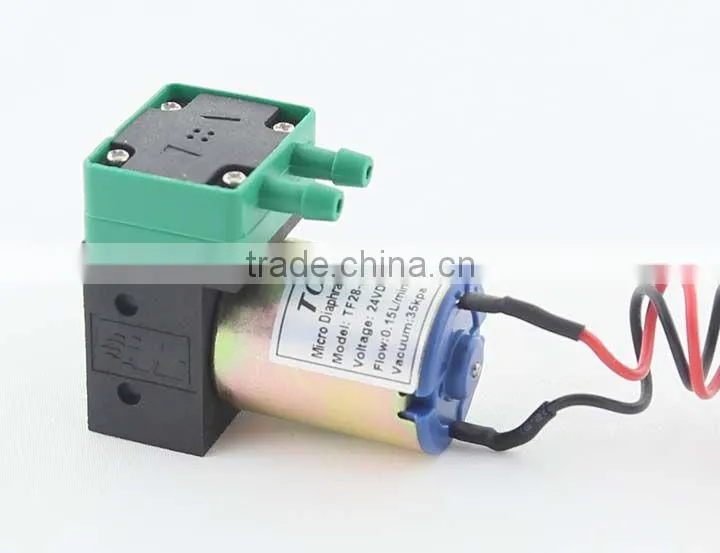

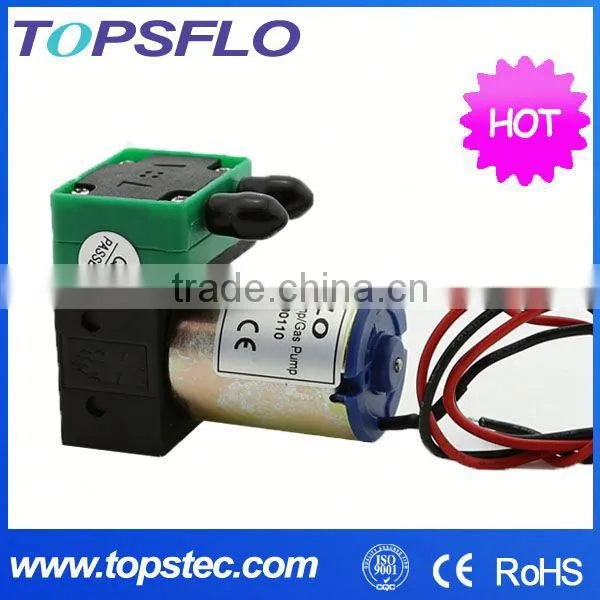

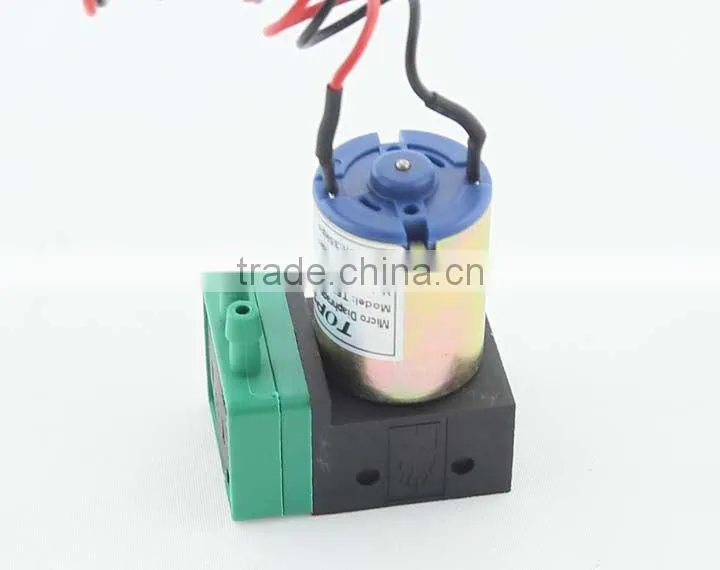

low noise dc 24v mini diaphragm vacuum,24v dc mini vacuum pump
| Model | Liquid Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Head | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | ( M ) | (KPa) | (L/min) | |
| TF28-B | TF28-B12-W1001 | TF28-B12-V3505 | 6 /12 / 24 | 0.078 | ≥10M | -35 | water : 0.15 gas : 0.5 |
| " W " means water/liquid pump, " / V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||
| Pump Weight:70g; Pump Size:53.5mm*28mm*40mm; Inlet&Outlet:OD 4mm/ID 2mm,hose suggestion:ID 3mm | |||||||
| Super silent noise | |||||||
| Motor type and code:“B”means economical brush DC motor (lifetime>1,000hours) | |||||||
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial liquid and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Printer ink machine
Fireplace
Respiration Monitors
Packaging
Company Information
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of micro pumps(micro BLDC centrifugal water pump,micro gear pump,high performance diaphragm air/liquid pump )for over 10 years with excellent quality and competitive.
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice
For more detail, pls feel free contact us !
