Economical electric diaphragm liquid/vacuum pump dc diaphragm pump 12v
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Brand Name: | TOPSFLO | Model Number: | TF30A | Theory: | Other, LIQUID VACUUM |
| Structure: | Diaphragm Pump | Usage: | Water | Power: | Electric |
| Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery | Pressure: | Low Pressure |
| Application: | Other, Gas transferring and evacuating |
Product Description

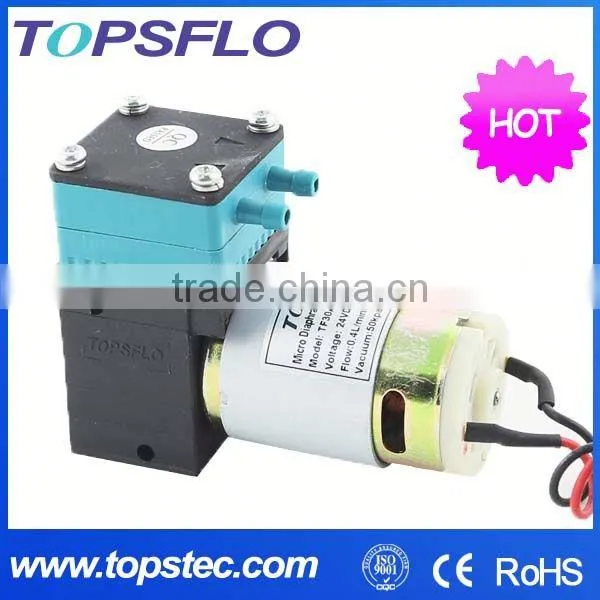

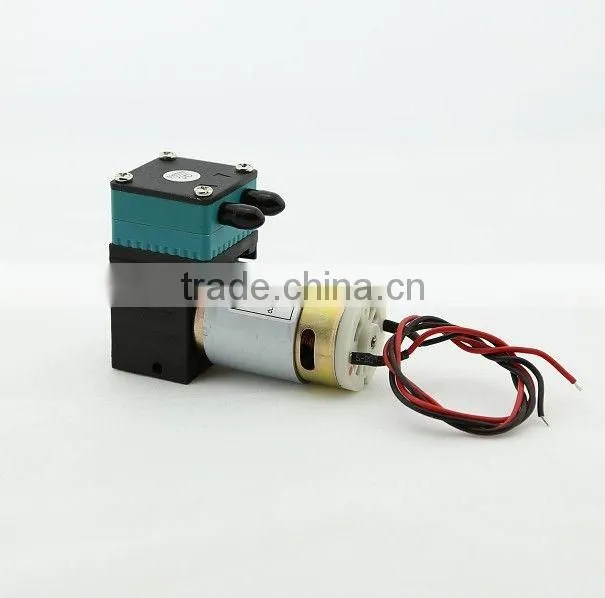

Economical electric diaphragm liquid/vacuum pump dc diaphragm pump 12v
Feature
Brush motor has been widely recognized economic price and reliability of voltage through different pumping speed control, usually 50% -100% range of adjustment | |
◊Oil-free | ◊ Compact size |
◊ Corrosionresistant | ◊ Long life |
◊ Maintenance Free | ◊ High Weight |
◊ Low noise level vibration | ◊ High efficiency |
◊ Can be mounted in any plane | ◊ DC an DCB models |
Applications
◊Gas detection devices | ◊ Sewage disposal |
◊Patient Monitoring | ◊Digital printing equipment |
◊ Blood Pressure Monitor | ◊Bil-chemical analyzer |
◊Gas massage products | ◊Electrolyte |
◊Lab equipment | ◊ Beauty equipment |
◊Microplate Washer | ◊ Chemistry analysis |
◊Air Sampler | ◊Industrial applications |
◊ Automatic Toumiquet |
|
Technical Date
Model | TF30A | ||
voltage(DCV) | 6V | 12V | 24V |
Pump head | nylon | nylon | nylon |
Diaphragms | EPDM | EPDM | EPDM |
Valves | EPDM | EPDM | EPDM |
Operating voltage range(v) | DC6-12 | DC6-12 | DC12-24 |
Starting time(s) | 0.02 | 0.02 | 0.02 |
I max. (A) | 0.4 | 0.24 | 0.15 |
Motor protection factor | IP00 | IP00 | IP00 |
Max.flow(ml/min) | 400-450 | 400-450 | 400-450 |
Max. Gas flow(l/min) | 4 | 4 | 4 |
Max vacuum( kpa) | -50 | -50 | -50 |
Max head(M) | 10M | 10M | 10M |
Ambient temperature(°C) | 0-40 | 0-40 | 0-40 |
Low Noise(dB) | <50 | <50 | <50 |
The interface of pipe(mm) | 6x4 | 6x4 | 6x4 |
Weight | 0.15 | 0.15 | 0.15 |
Lifetime (h) | 10001500 | 1000~1500 | 1000~1500 |
We are manufacturer and sincerely hope hear your enquiry and further suggestion which will give us an opportunity to service you well.
Thanks and best regards.
