Circulation DC brushless 12v 24v cooling capacity chiller pump
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Brand Name: | TOPSFLO | Model Number: | TL-C01 | Theory: | Centrifugal Pump |
Structure: | Single-stage Pump | Usage: | Water | Power: | Electric |
Standard or Nonstandard: | Other, Standard,customized | Fuel: | Other, DC power, Battery, Solar panel | Pressure: | Other, flow rate 16L,18L,22L.water head:6M,8M,11M |
Application: | Other, water circulating system; Electronic Shower / Instant water heater, Water circulation system Swim Pool Higher pressure machines |
Product Description

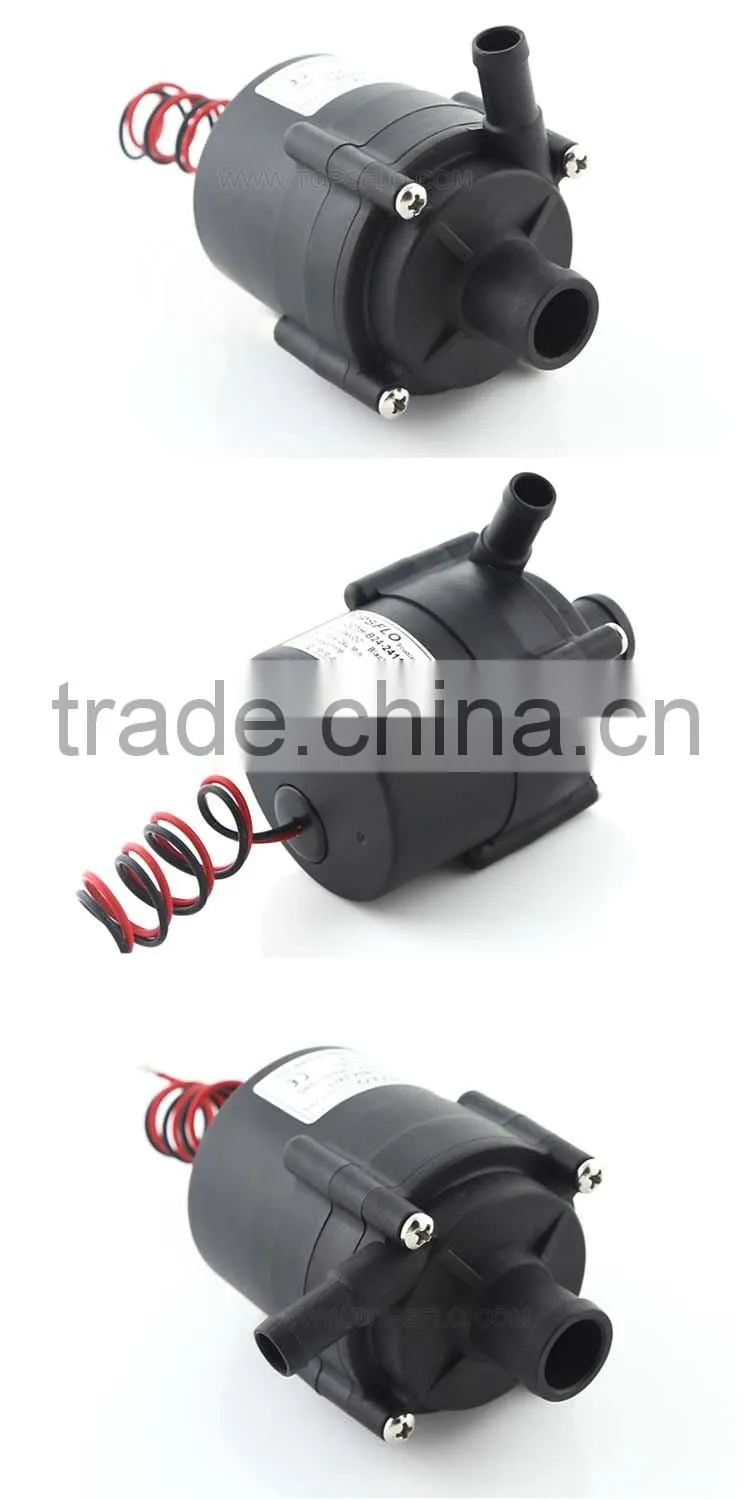

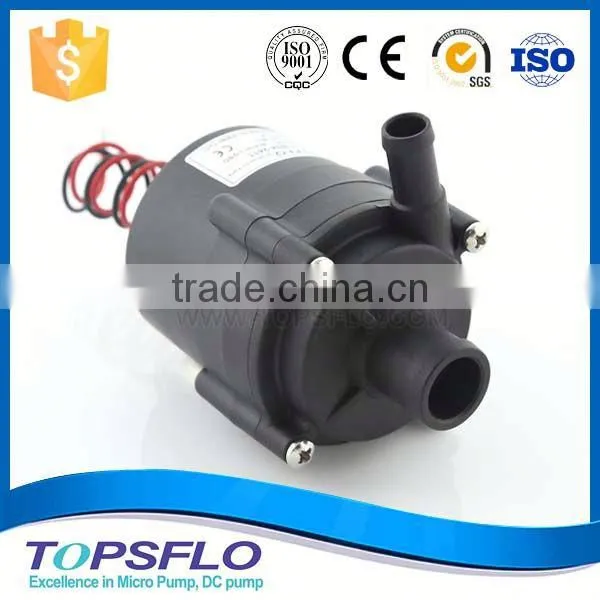

Circulation DC brushless 12v 24v cooling capacity chiller pump
1. Liquid transfer general purpose pumping 2. Hot water circulating system
3. Electronics Cooling Water Circulation Chiller Systems
4. Liquid filling and transfer in food, beverage processing, vending machines
5. Instant electric water heater, electric shower.
6. Circulating systems for homes, RV's and boats
7. Cleaning equipment, purification and water treatment.
8. Irrigation solar pump, swimming pool circulation
9. Electric cars: radiators, heaters 10. Automotive air conditioning
11. Computer CPU cooling circulation 12. Water heating mattress
Specification: |
Max Flow Rate | 18L/MIN 22L/MIN |
Max Static Lift | 8M ,11M |
Rated Voltage | 12V / 24V |
Impeller Type | Open impeller |
Motor Type | Three-phase brushless DC motor |
Food Grade(Y/N) | Y |
Liquid Temperature | 0-100°C |
Pump Theory | Centrifugal pump |
Ambient Temperature | -10-50°C |
Media | Pure Water |
Waterproof Class | IP42 |
Use Place | Indoor or Outdoor |
Working Voltage Range | 6~16V or 12~28V |
Power Consumption | 34W,48W |
Noise Class form 1M | 42dB /Max |
Ideal Life Time | 20000 Hours |
Working Mode | Continuous |

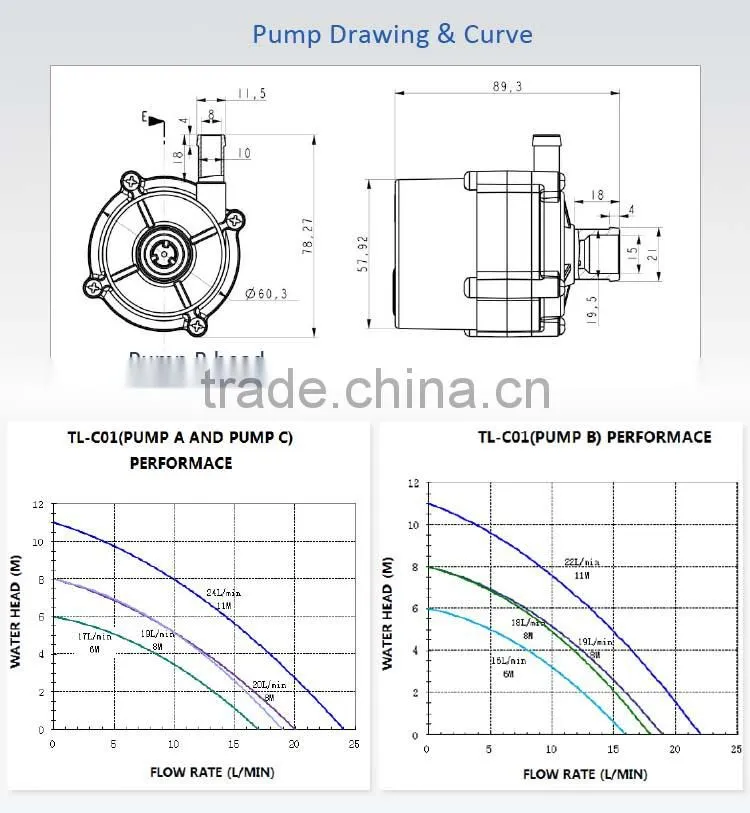

OD of Inlet | 21 mm |
OD of Outlet | 11.5mm |
Dimension | 89.3x60.34x57.92 mm |
Power Supply | DC power supply, battery, solar powered |
Flow Rate Regulation | (customized functions) 1.PWM, 0~5V speed control, 2.submersible lar panel driven directly 4.FG(RPM) signal wire |
Remarks | Can’t dry-running, not Self-priming |
The technical parameters above is only for your reference, for more details , please feel free to contact us. |

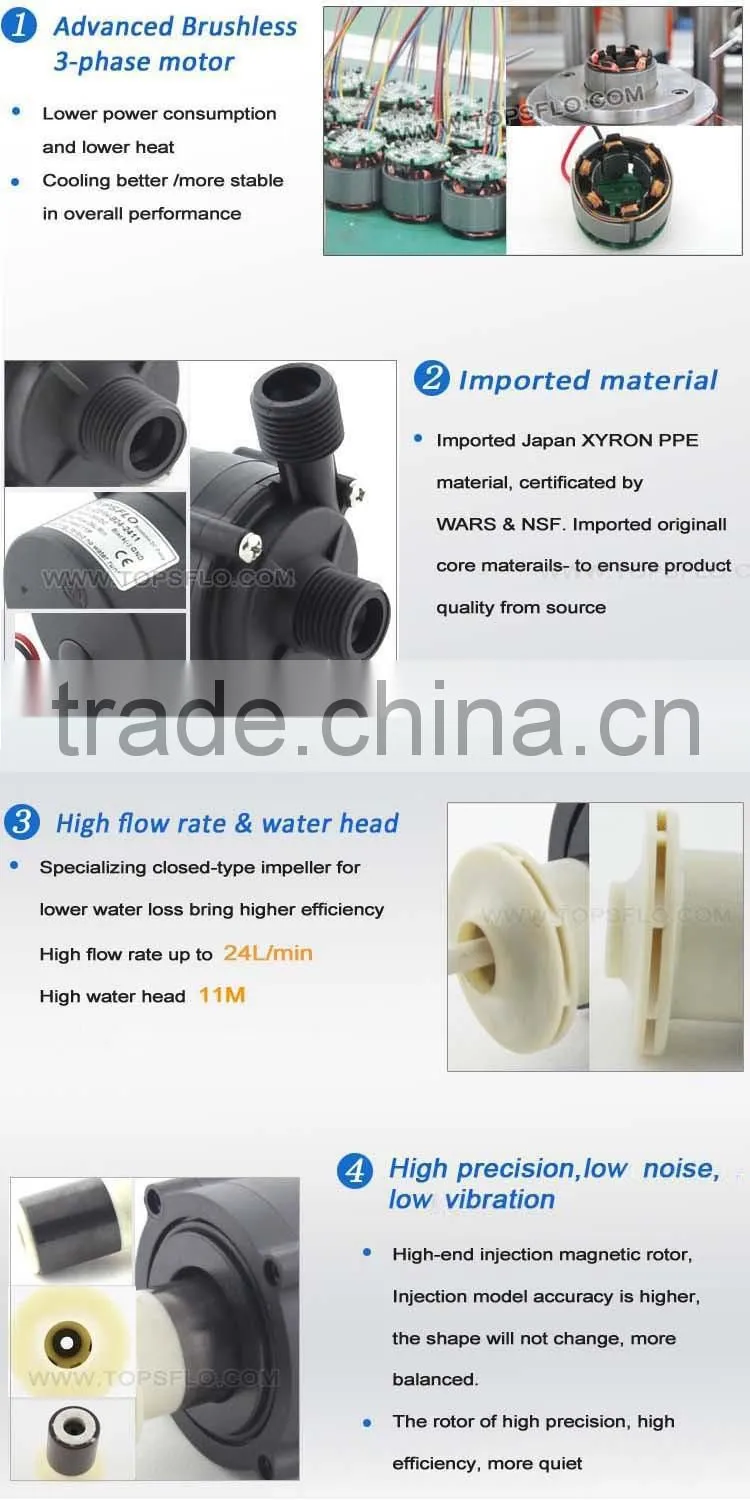

Product Feature: |
♦ Advanced magnetic driving technology for static-seal,without any leakage forever
♦ Heavy duty work,can sustain continuous 24hours work
♦ High efficiency ECM brushless DC motor with long lifetime 20,000hours
♦ 3-phase motor for lower power consumption and lower fever

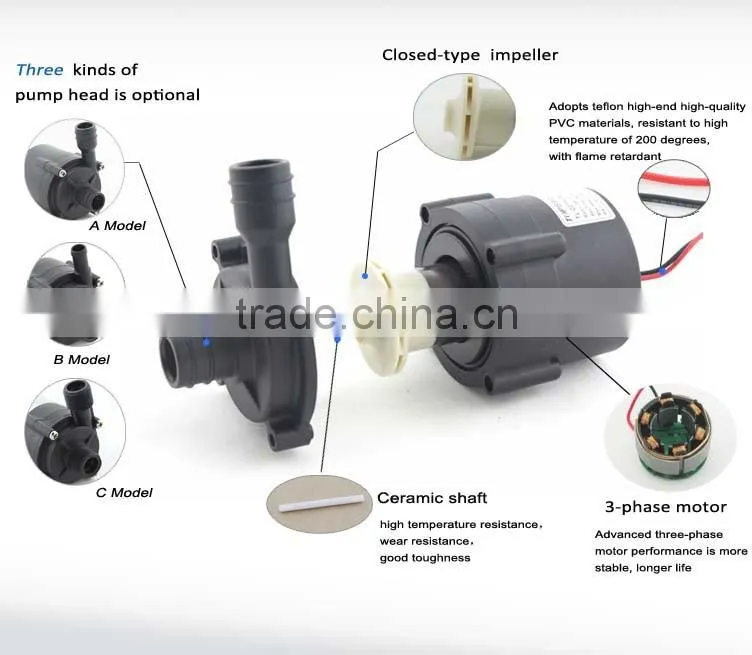

♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft
♦ Specializing closed-type impeller for lower water loss bring higher efficiency
♦ High precision one-time injection magnetic rotor for stable lower vibration
♦ High temperature materials for liquid temperature ≥90°C
♦ Low or no maintenance
♦ Food grade materials
♦Imported Japan XYRON PPE material, certificated by WARS & NSF.
More Brushless DC Micro Pump
Helpful Tips:
If you need more product information:
1, Please scan the above 2-D Barcodes
2,To view more videos please enter "TOPSFLO" on YouTube to find a video of our micro pump.
