milk processing plant

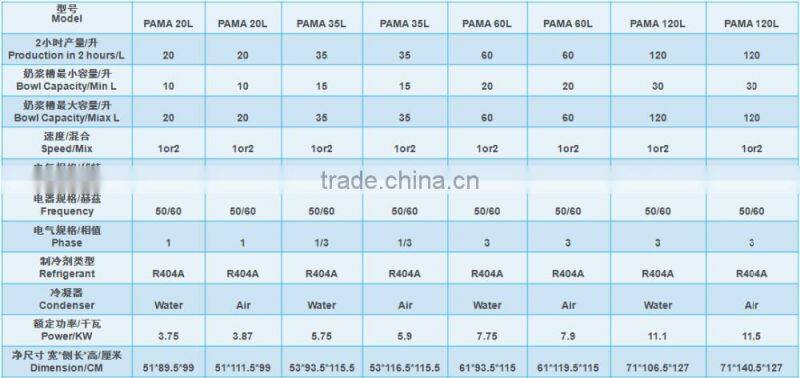

Specifications:
| Ice cream milk pasteurizers | ||||
| Model | PAMA 20L | PAMA 35L | PAMA 60L | PAMA 120L |
| Capacity | 20 ltr | 35 ltr | 60 ltr | 120 ltr |
| Mix added/batch(min) | 10 ltr | 15 ltr | 20 ltr | 30 ltr |
| Mix added/batch(max) | 20 ltr | 35 ltr | 60 ltr | 120 ltr |
| Process time/min | 8-10 | 8-10 | 9-12 | 10-15 |
| Speed / Mix | 2 | 2 | 2 | 2 |
| Electrical specification/volt | 220 | 220/380 | 220/380 | 220/380 |
| Electrical specification/hz | 50 or 60 | 50 or 60 | 50 or 60 | 50 or 60 |
| Electrical specification/ph | 1 | 1 or 3 | 3 | 3 |
| Refrigerant type | R404A | R404A | R404A | R404A |
| Compressor | Tecumseh | Tecumseh | Tecumseh | Tecumseh |
| Condenser | water / air | water / air | water / air | water / air |
| Rated power | 3800w / 3950w | 4350w / 4500w | 6150w / 6300w | 7950w / 8100w |
| Net weight | 309 lbs / 160 kg | 353 lbs / 170 kg | 530 lbs / 200 kg | 705 lbs / 280 kg |
| Gross weight | 397 lbs / 180kg | 441 lbs / 210kg | 628 lbs / 245kg | 816 lbs / 330kg |
|
Size W * D * H (with wheels) |
16.5 * 28.3 * 39.4 inch | 19.3 * 33.9 * 41.7 inch | 19.3 * 33.9 * 46.5 inch | 29.1 * 39 * 49.2 inch |
| 420 * 720 * 1000mm | 490 * 860 * 1180 mm | 490 * 860 * 1180mm | 740 * 990 * 1250mm | |
|
Packing size W * D * H |
20.9 * 35.4 * 48.8 inch | 23.6 * 37.8 * 49.6 inch | 23.6 * 37.8 * 54.3 inch | 33.1 * 43.3 * 57.1 inch |
| 530 * 900 * 1240mm | 600 * 960 * 1260mm | 600 * 960 * 1380mm | 840 * 1100 * 1450mm | |
Note:
The voltage and the frequency can be set up according to different countries’ standard.

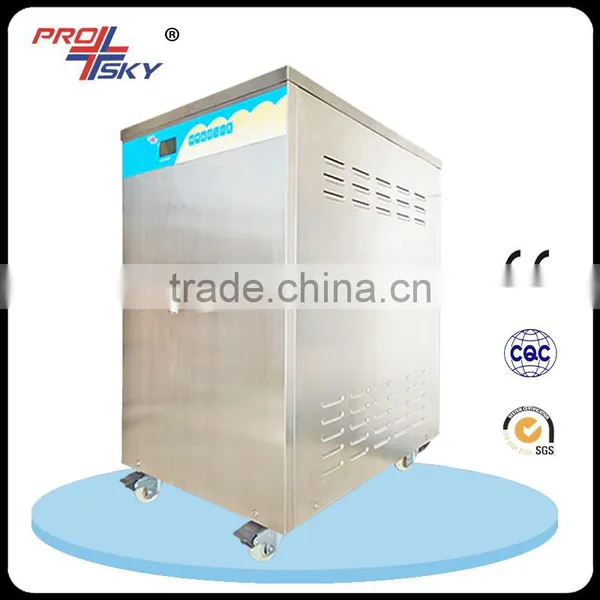

General introduction

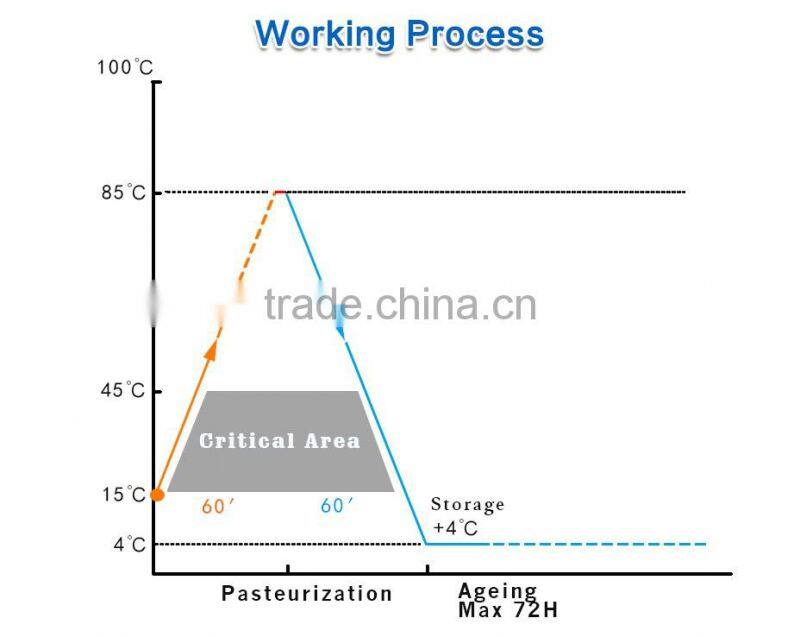

The pasteurizing machine is controlled fully by computer which can pasteurize automatically from the high temperature +85C or +65C according to different kinds of raw materials and can keep fresh for 72 hours. It assembles the technical technical grade frequency converter which can save the energy, start and stop very quietly and help to extend the working life of the compressor and churning motor. It is allocated with the French Tecumseh compressor cooling system and Denmark Danfoss expansion valve, etc.
The warranty period of the whole machine is 1 year.
Features Include:
1. The whole machine is controlled by the computer intelligent system with super huge LCD screen. The machine operating status is shown in the graphics whose interface can reflect the communication between the operator and the machine. The preference was protected by the password which can prevent the operation by mistake.
2. Output is adopted the low noise and undisturbed technology.

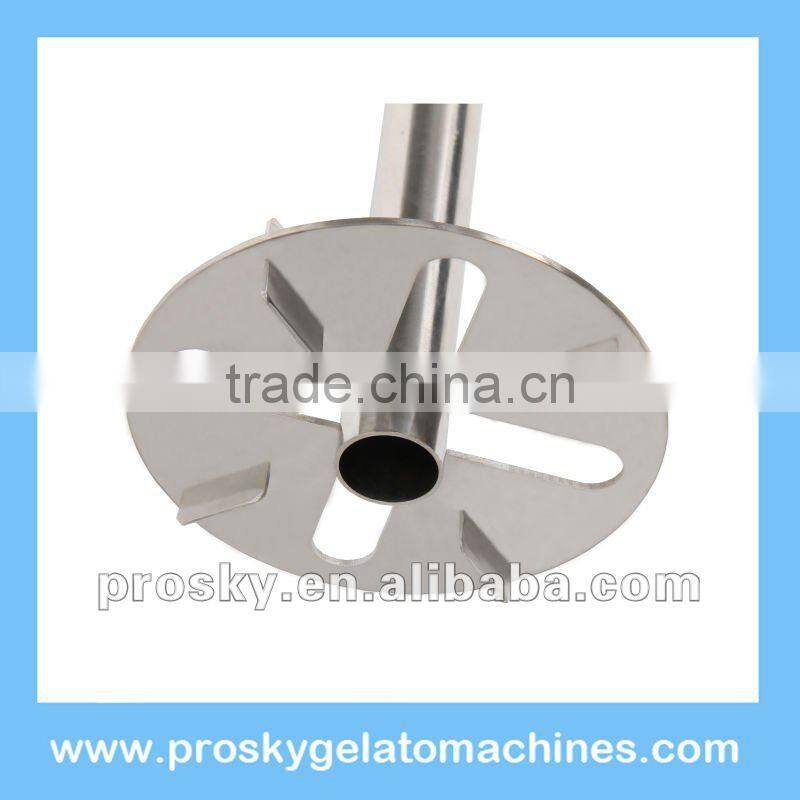

3. The practical and new type patented churning system improve emulsification of the base;

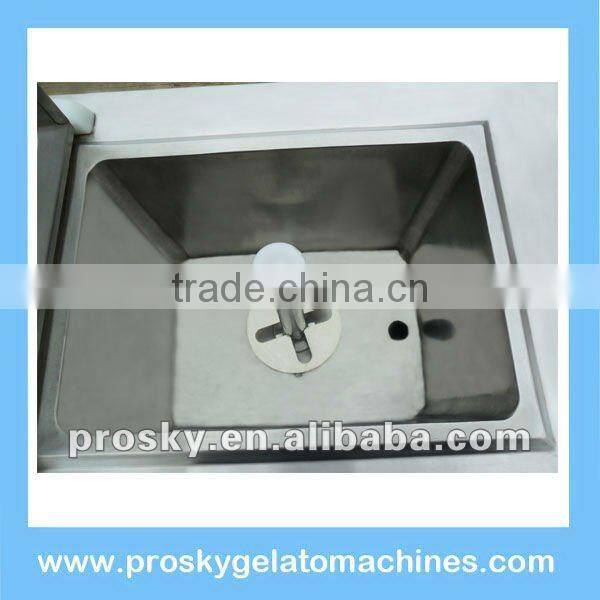

4. The rectangle design of the pot can save more space..
5. Closed cleaning water source help to work efficiently and sanitarily.
6.Adopting the UFI approved refrigerant R404A which is more environmental-friendly.
