Plastic Bag Water Filling Machine
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bags | Packaging Material | Glass, Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380v 220v | Power | 370 W,the whole line about 20KW | |
| Place of Origin | Jiangsu, China | Brand Name | Mars | |
| Model Number | DZN-1000 | Dimension(L*W*H) | 1000*800*2000mm | |
| Weight | 400KG | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

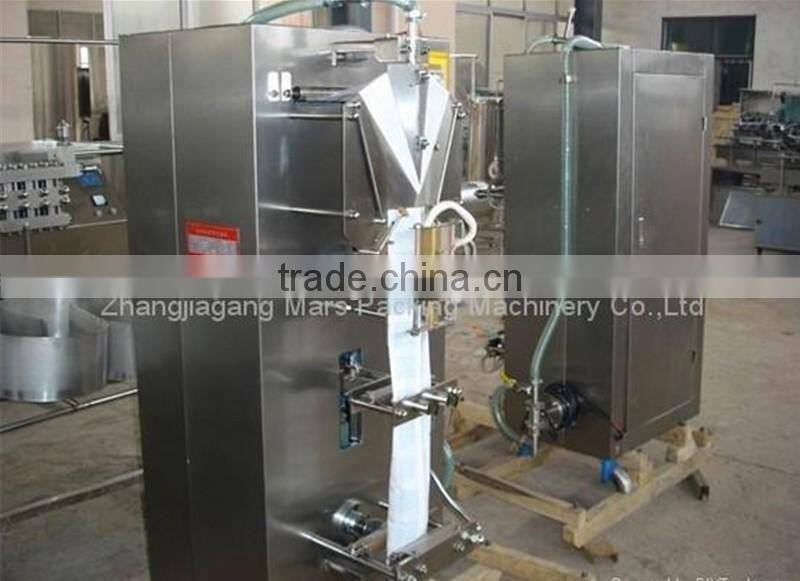

Plastic Bag Water Filling Machine
1) About sachet water production line

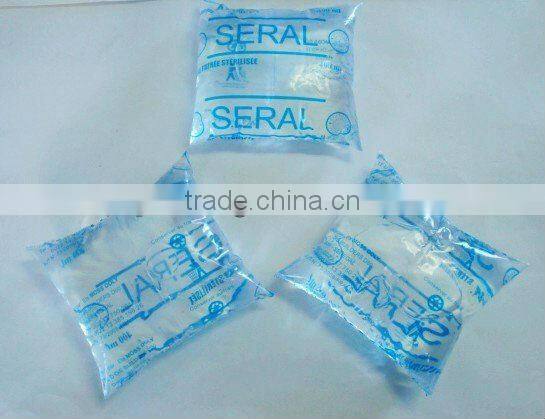

This machine can be widely used for packing various kinds of air-free liquid, especially for bag package of soy sauce, vinegar, fruit juice and other beverages (or iced beverage) , bean milk , milk , mineral water, bean curd and liquid chemical products.
2) Specification for Plastic Bag Water Filling Machine
| Production capacity | 1500-1800 Bags/H | |
| Filling range | 100-1000ml | |
| Voltage | AC220V / 380V 50Hz | |
| Paper-offering motor | 250W / 220V | |
| Power of hot sealing | Vertical sealing | 300W |
| Horizontal sealing | 500W | |
| Main motor power | 370W / 380V / 220V | |
| Overall dimension | 1000*800*2000mm | |
| Weight | 400kg | |
Components,
1.Central Plate of Former | 2.Folding Plate of Former |
3.Base Plate of Former | 4.Bag-pressure Wheel |
5.Copper Block for Thermal Vertical Sealing | 6.printer |
7.Central Tube | 8.Bag-Feeding handle |
9.Thermal Transverse Sealing | ure-Regulatino Screw for thermal |
ll. Bunker | 12.Control instrument panel |
13.Delivery tube | 14.Three-way direction change valve |
15.Up check valve | 16.Low check valve |
