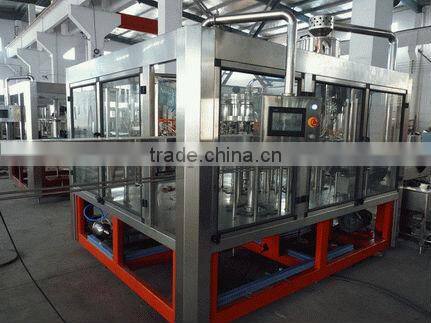

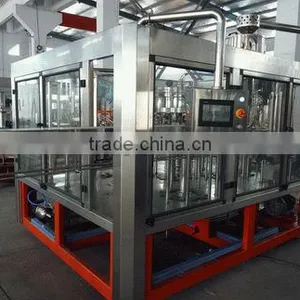

200ml Bottle Water Filling Machine
Water filler fill with 200ml-2000ml PET bottle
CGF24-24-8 Full Automatic 3-in-1 Mineral Water Filling Machine
3 in 1 water filling machine 1.3000-36000BPH for 500ml 2.High performance and best components used 3.Save
CGF24-24-8 Full Automatic 3-in-1 Mineral Water Filling Machine
CGF three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc. Production capacity: 3,000 - 40,000bottles/hour, Applicable bottle type: 150 --3,000ml.
Main features
1) This machine has a compact structure, perfect control system, easy to operate and highly automated.
2) The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3) By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4) The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5) This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6) Equipped with perfect clean management system to ensure the bottle clean.
7) Only by changing the star-wheel, can realize to fill the changed bottle shape.
8) The machine adopts perfect overload protective device can ensure the operator and machine safe.
9) This machine adopts frequency converter, which can adjust the
10) The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11) The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12) The electric components and pneumatic components are all introduced from world famous brand products.
CGF24248 Full Automatic 3-in-1 Mineral Water Filling Machine
Main Parameters of CGF Series PET Bottle Water Filling Machine:
| Model | Washing Heads | Filling Heads | Capping Heads | Production Capacity (B/h 500ml) | Main Motor Power (KW) |
| CGF18-18-6 | 18 | 18 | 6 | 5000-7000 | 3.5 |
| CGF24-24-8 | 24 | 24 | 8 | 6000-8000 | 3.8 |
| CGF32-32-10 | 32 | 32 | 10 | 8000-12000 | 5.5 |
| CGF40-40-10 | 40 | 40 | 10 | 12000-15000 | 7.5 |
| CGF50-50-12 | 50 | 50 | 12 | 15000-20000 | 12 |
CGF60-60- 60 60 15 20000-25000 13.5
15
CGF72-72-16 72 72 16 25000-30000 15
Product show
