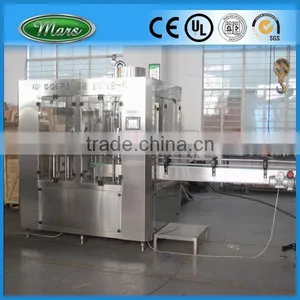

Filler In Bottling Plant

Filler In Bottling Plant photo-1
US$ 20,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Water
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Place of Origin Jiangsu, China
Brand Name Mars
Model Number CGF16-12-6
Dimension(L*W*H) 2100*1400*2500mm
Weight 2500Kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Filler In Bottling Plant



the machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.



Main Technical parameters

Model
CGF16126
CGF18186
CGF24248
CGF32328
CGF404010
CGF484812
CGF606015

Heads
of washing
,filling ,
sealing

16-12-6
18-18-6
24-24-8
32-32-8
40-40-10
48-48-12
60-60-15

Production
capacity
(bottle/hour)

2000-4000
5000-7000
8000-12000
12000-15000
16000-20000
20000-24000
25000-30000

Suitable bottle diameter(mm)

φ=50-100 H=170 330-1500ml

Spraying pressure

2~3

Motor power

Main
motor
1.5kw

Main motor
2.2kw
Main motor
3kw
Main motor
4kw
Main motor
7.5kw
Main motor
9.5kw
Main motor
12kw

Power of
outer
vacuum
pump

0.75
1.1
1.5
2.2
2.2
3
4

overall dimension
(LxWxH)

2100x
1400x
2500

2460x
1720x
2650

3100x
2100x
2650
3500x
2500x
2650
4600x
1800x
2650

5200x
4500x
3400

6500x
4500x
3400

Weight

2500
3500
4200
5500
6800
7600
9800

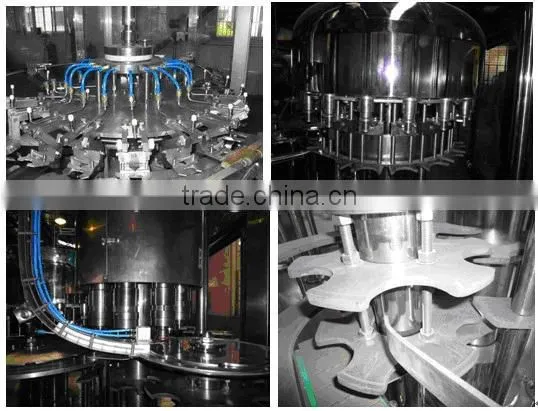

 Product show

Filler In Bottling Plant





Why do you choose Mars machinery?



1.Our factory

2. Your inquiry related to our product will be replied within 24hours

3. We have proffessional experienced team to answer all your inquiries

4. We offer good after-sale service

5. The warranty is one year







Any question about this machine, please contact us!  We are glad to be at your service!



Warmly welcome to visit our company!



Filler In Bottling PlantFiller In Bottling PlantFiller In Bottling PlantFiller In Bottling PlantFiller In Bottling Plant
