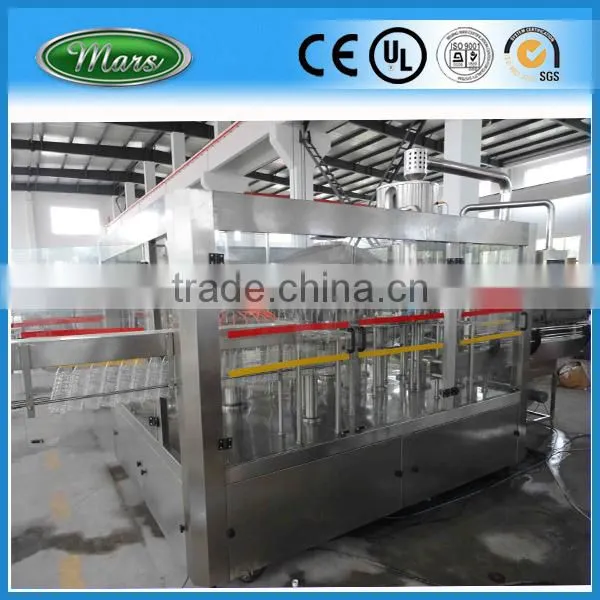

CGF24-24-8 Mineral Water Filling Machine
US$ 25,000 - 26,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Mineral water
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1500ml Water PlantUS$ 20,000 - 22,000MOQ: 1 Set -
2 Liter Drinking Water Filling MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
200ml Bottle Water Filling MachineUS$ 22,000 - 25,000MOQ: 1 Set
-
1.5 Liter Water Filling MachineUS$ 60,000 - 66,000MOQ: 1 Set
-
3 in 1 Rinser Filler Capper Water Filling MachineUS$ 25,000 - 26,000MOQ: 1 Set
Condition
New
Application
Beverage, Other, Beverage, Mineral water
Packaging Type
Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
6.57Kw
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
CGF24-24-8
Dimension(L*W*H)
2750*2180*2200mm
Weight
5500KGS
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
This series of mineral water filling machine are applied to the production of pure water, mineral water, with optional capacity from 3,000 to 30,000BPH. The washing, filling and capping will be finished just by this one machine.
It is very convenient to change bottle size by means of advanced bottle conveying technology-bottle neck clamping & bottle suspending technology.
Main Feature
- This water filling machine has a compact structure, perfect control system, easy to operate and highly automated.
- The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
- By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
- The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
- This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
- Equipped with perfect clean management system to ensure the bottle clean.
- Only by changing the star-wheel, can realize to fill the changed bottle shape.
- The machine adopts perfect overload protective device can ensure the operator and machine safe.
- This machine adopts adjustable frequency converter.
- The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
- The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
- The electric components and pneumatic components are all introduced from world famous brand products.
Technical parameter
Model: CGF24-24-8
Production capacity: 8,000-9,000B/H(500ml)
Polyester bottle specification: bottle diameter:φ50-φ120mm
Bottle height: 150-320mm
Suitable cap type: plastic screw cap
Filling precision: ≤±5mm (liquid level)
Filling pressure: <0.4Mpa
Water pressure of washing bottle: 0.18-0.25Mpa
Water consumption for washing bottle: 2500Kg/Hour
Spraying position: 6
Dripping bottle position: 3.5
Gas source pressure: 0.4Mpa
Gas consumption: 0.4m3/Min
Total power: 6.57Kw
Overall dimension: 2750×2180×2200mm
