Aluminum Foil Tray Production Line

Name: Aluminum Foil Tray Production Line
Brand: Mars
SKU: 141356190
Availability: InStock

US$ 46,000 - 47,000 MOQ: 1 Piece

Key Specifications

Condition:

New

CNC or Not:

CNC

Power Source:

Hydraulic

Zhangjiagang Mars Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Power Source Hydraulic

Place of Origin Jiangsu, China

Brand Name Mars

Model Number JF-40T

Voltage 380V

Power(W) 5.5Kw

Weight 4000Kg

Dimension(L*W*H) 1800*1300*2700mm

Certification CE

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

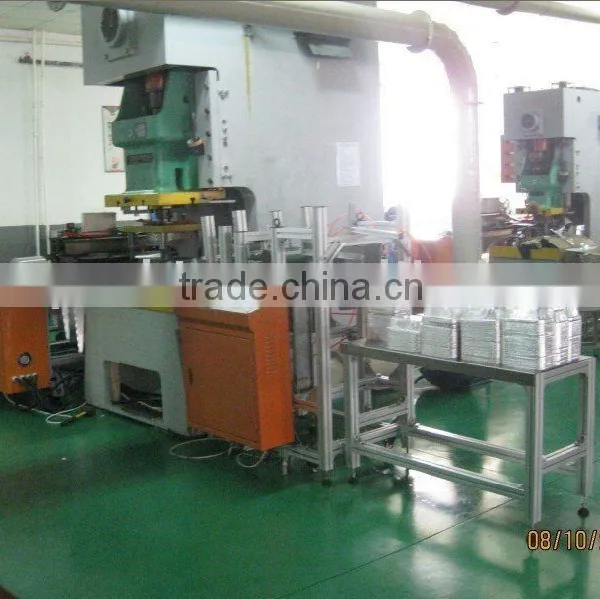

Aluminum foil tray production line:

Machine consists of:

1 Unit Press / Punching Machine

1 Unit Aluminum Foil Feeding Machine

1 Unit Container Automatic Stack Machine & Collecting Machine

1 Unit Automatic Scrap Collecting System

1 Unit Air Compressor System

1 Unit Aluminum Foil Test Roll

1 Unite Manual Operation Lifer-Loading/Unloading Material and Mould

1 Unit Digital PLC Computerized Panel Control

Moulds are not inclusive - offer separately pending the mould size and dimension.

1	Max.Pressure	400KN
2	Slide stroke	100-260mm
3	Number of strokes	50-70/Min
4	Loading mould height oke TimesStrokeriction clutch	270-400
5	Adjustable mould height	60mm
6	Dimensions of slide block bottom (LxW)	410*340mm
7	Size of the handle hole (Diameter x Depth)	60*60mm
8	Worktable dimensions (LxW)	1100680/1300800mm
9	Motor Power	5.5Kw
10	Weight	4000Kg
11	Overall Dimension	180013002700mm
