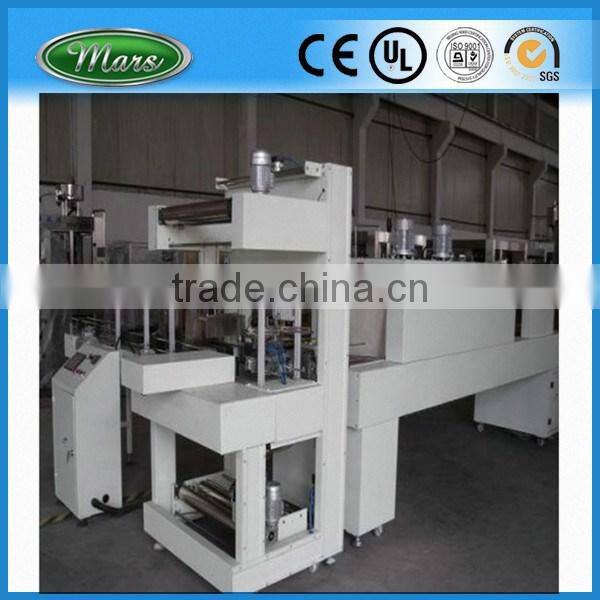

Hot Shrinking Film Can Packing Machine

Name: Hot Shrinking Film Can Packing Machine
Brand: Mars
SKU: 141356106
Availability: InStock

US$ 9,500 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Food, Beverage

Packaging Type:

Bottles

Zhangjiagang Mars Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Food, Beverage

Packaging Type Bottles

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 20Kw

Place of Origin Jiangsu, China

Brand Name Mars

Model Number SP-10

Dimension(L*W*H) 5500*3200*2100mm

Weight 1500Kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Automatic Film Shrink Packing Machine

Characteristic:

1. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc.

2. Adopt with PLC automatic program circulation control with stable and reliable performance.

3. 3 layers of heat insulation treatment with good insulting property, quick temperature rise and energy saving.

4.The enhanced cooling shaping passage can quickly turn the packing membrane into high strength status that is conveniently stored and transported.

5.It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine

Specification:

Dimension for the whole unit:	L5500mm×W3200mm×H2100mm
Thermal shrinkage passage dimension:	L1800mm×W650mm×H450mm
Max. package dimension:	L600mm×W400mm×H350mm
Transfer belt dimension:	800-1200mm
Packaging speed:	10-12Packages/Minute
Operating power supply/power:	380V, 19Kw
Sealing and cut time/temperature:	0.5-1.5S,140^oC-160^oC
Operating air pressure:	0.6-0.8Mpa
Air consumption:	0.5m³/Minute
