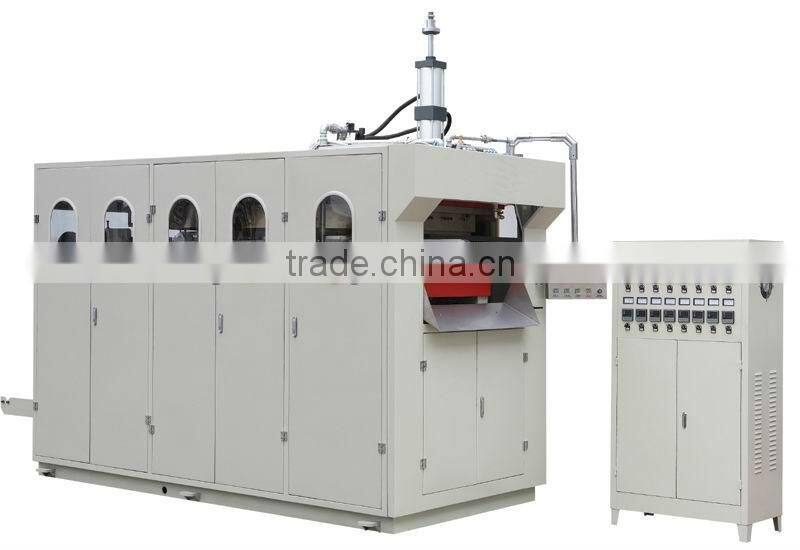

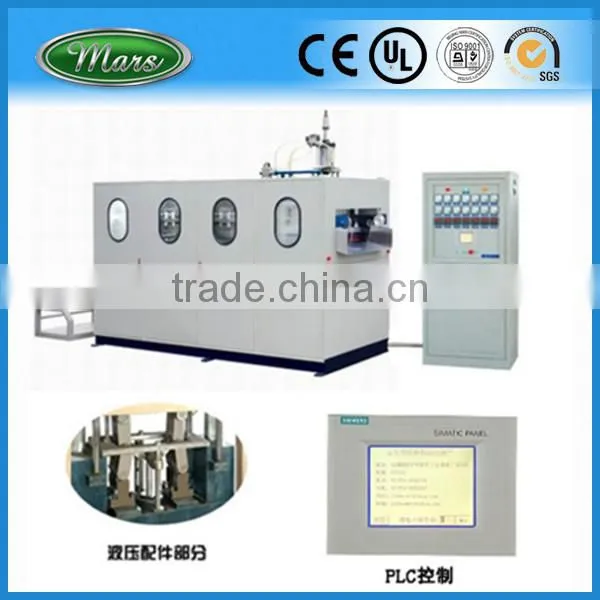

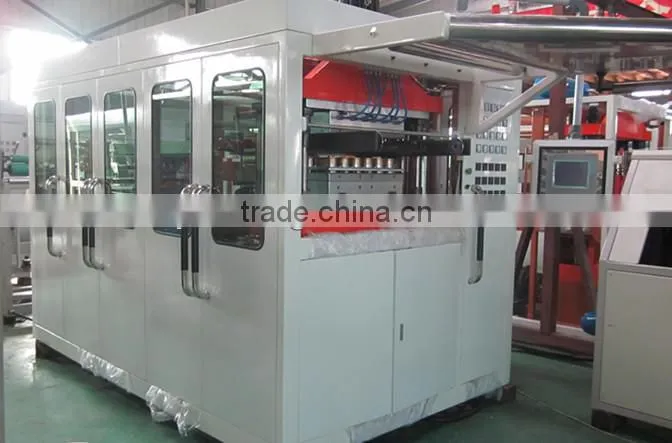

Plastic Cup Making Machine
Main Construction Features
The sheet feeding pin chain is controlled by servo motor, The feeding length is more precise and it can be adjusted in parameter setting through touch screen.
The stretching of plug inside of up mould is controlled by servomotor.
The operation is controlled by PLC with touch screen.
Adopt two pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.
Main technical parameters for Plastic Cup Making Machine Price:
1 |
Material |
PP,PS,PET,PVC,ABS,Degradable material |
2 |
Thickness of sheet |
0.3-2.0mm |
3 |
Width of sheet |
750mm |
4 |
Area of forming |
750×500mm |
5 |
Depth of forming |
≤160mm |
6 |
Working efficiency |
≤25/min |
7 |
Heating rated power |
110kw |
8 |
Main motor rated power |
15kw |
9 |
Sheet sending motor |
4kw |
10 |
Power supply |
380V/50HZ(three-phase four-wire) |
11 |
Air pressure |
0.6-0.8Mpa |
12 |
Air consumption |
4500~6000 L/min |
13 |
Water consumption |
40-60L/min |
14 |
Total weight |
6000kg |
Mainly Purchased Parts for Plastic Cup Making Machine Price
Name |
Brand or origin |
Remark |
Inverter |
INVT, China |
|
Intermediate relay |
Omron |
|
Single-phase voltage regulating module |
Beijing Lingtong |
|
Ceramic Heater |
China |
|
Heating element with thermocouple |
China |
|
Proximity Switch |
Omron |
|
Air switch |
Schneider |
|
Button |
Schneider |
|
Thermal relay |
Schneider |
|
Selector switch |
Schneider |
|
Temperature Controller |
Jiangsu Gaoqi |
|
Cylinder |
Fangda |
|
Tensile valve |
SMC |
|
Forming valves |
SMC |
|
Reducer for sheet sending |
Taiwan |
|
Human-computer interface |
Taiwan |
|
