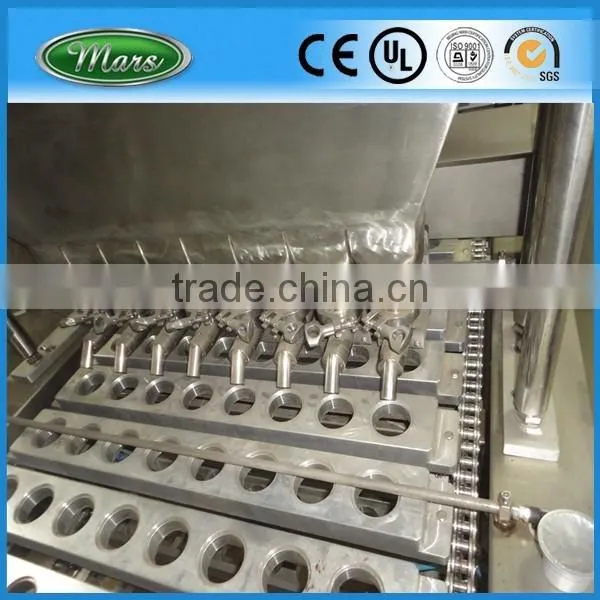

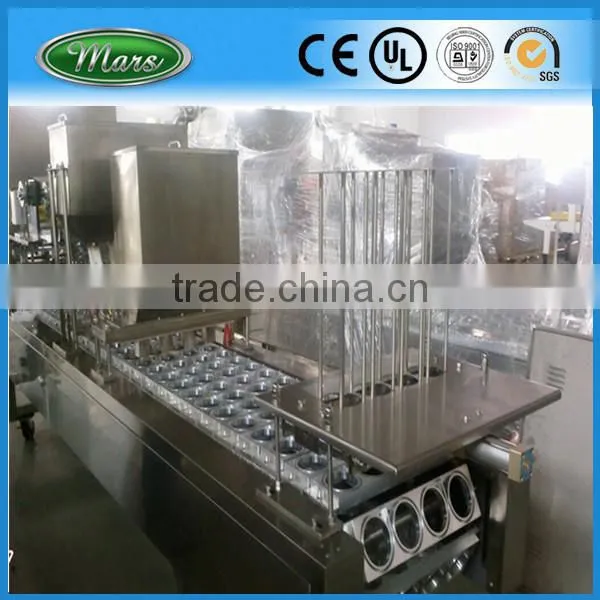

Machine Packing Coffee K Cup
This Filling machine special design for powder.
1. Filling materials:Powder,like Coffee powder, juice powder, etc.
2.Container: plastic capsules, small cups,etc.
1. Features for Machine Packing Coffee K Cup
2.Automatic feeding inner filter layer before filling powder(optional)
1.Automatic feeding coffee capsules/cups onto machine conveyor belt
3.Automatic sorting function for the out pack and inner filter layer(optional)
4.Automatic filling coffee powder
5.Press the powder to ensure into cup/capsule
6.Feeding the filter paper/layer cover the coffee powder(optional)
7.Automatic feed roll film lid and twice heat sealing then cutting
8.Automatic output final capsule/cup
9.Stable and reliable functions, security and alarming functions
10.Stepless speed control, can adjust filling time.
11.Piston valve filling head,auto-control the volume intank.
Main Technology Parameters for Machine Packing Coffee K Cup
| Model | BF-C10 | BF-C12 | BF-C14 | BF-C16 |
| Filling heads | 10 | 12 | 14 | 16 |
| Production capacity (Cups/min) | 100 | 120 | 140 | 160 |
| Filling volume(ml) | 5-50 | 5-50 | 5-50 | 5-50 |
| Filling accuracy | ±2% | ±2% | ±2% | ±2% |
| Power | 8Kw | 9Kw | 9.5Kw | 10Kw |
| Power supply | AC220V/380V | AC220V/380V | AC220V/380V | AC220V/380V |
| Temperature | 0-400 | 0-400 | 0-400 | 0-400 |
| Air consumption(m³/min) | 0.8 | 0.8 | 0.8 | 0.8 |
| Overall dimensions(L*W*H;mm) | 3500*850*1650 | 3700*900*1650 | 3800*1000*1650 | 3800*1100*1650 |
| Packing box dimensions(L*W*H;mm) | 3600*950*1800 | 3900*1000*1800 | 3900*1100*1800 | 3900*1200*1800 |
| Weight(Kg) | 1200 | 1400 | 1500 | 1600 |
| Model | BF-C2 | BF-C4 | BF-C6 | BF-C8 |
| Filling heads | 2 | 4 | 6 | 8 |
| Production capacity (Cups/min) | 20 | 40 | 60 | 80 |
| Filling volume(ml) | 5-50 | 5-50 | 5-50 | 5-50 |
| Filling accuracy | ±2% | ±2% | ±2% | ±2% |
| Power | 3Kw | 5Kw | 7Kw | 7Kw |
| Power supply | AC220V/380V | AC220V/380V | AC220V/380V | AC220V/380V |
| Temperature | 0-400 | 0-400 | 0-400 | 0-400 |
| Air consumption(m³/min) | 0.65 | 0.7 | 0.8 | 0.8 |
| Overall dimensions(L*W*H;mm) | 2500*750*1650 | 2800*800*1650 | 3000*900*1650 | 3300*800*1650 |
| Packing box dimensions(L*W*H;mm) | 2600*850*1800 | 2900*900*1800 | 3100*1000*1800 | 3400*900*1800 |
| Weight(Kg) | 400 | 600 | 700 | 1000 |
