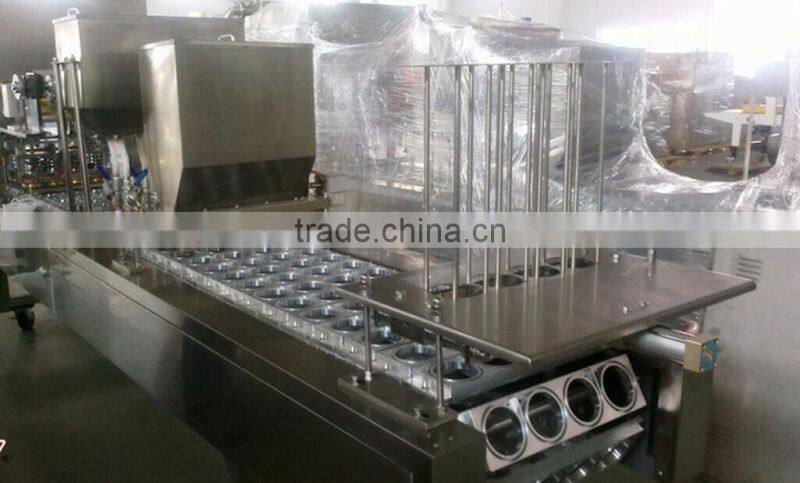

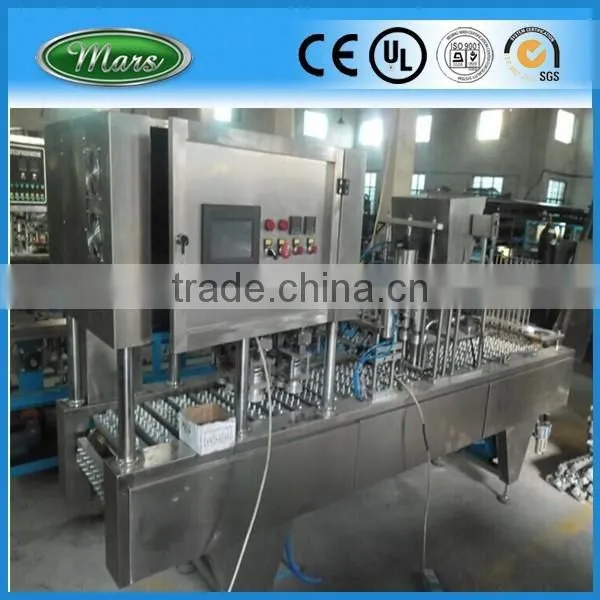

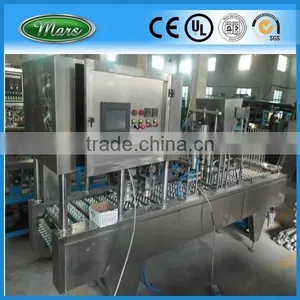

Automatic coffee capsule making machine,also called coffee capsule filling and sealing machine.

Brief introduction of  k cup filling Machine :

CP series coffee capsule/cup filling and sealing machine is used for coffee capsules/cups filling with coffee powders(or other kinds of powder products like tea powder , cocoa powder etc. )

It is our patent machine specially designed for fill small coffee capsule cups.

we have successful experience design and manufacture for all kinds of coffee capsules : very small cups, the special filling part for the fluffy coffee powder, and press function to ensure all fluffy powder into the cup/capsule container. also some complicated methods as for the plastic filter layer before fill the powder and even filter paper layer after fill powder , to cover the powder top.

we have over 15 years xperience in this machine and exported over 50 machines to USA, Israel , Middle East , South America etc.

Working process of k cup filling Machine :

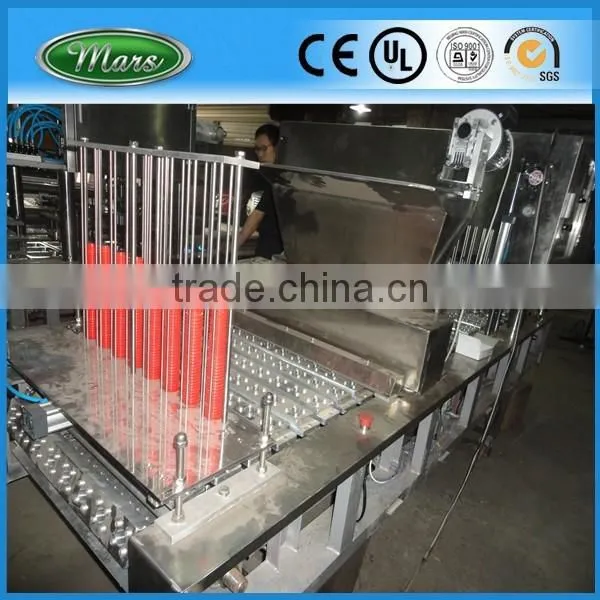

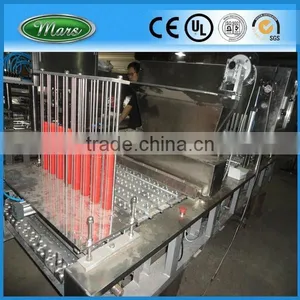

auto feed coffee capsules/cups onto machine

→ auto feed inner filter layer before fill powder

→ auto sorting function for the out pack and inner filter layer

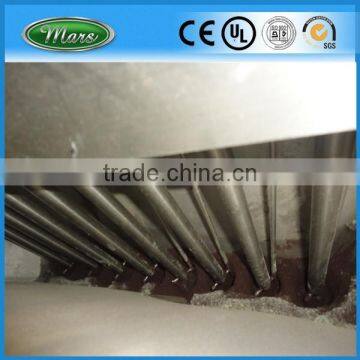

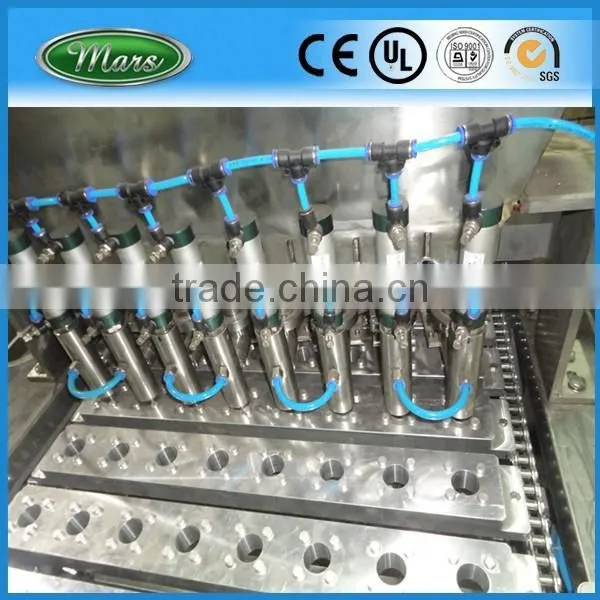

→ auto fill coffee powder as precise weight 3g, 5g, 10g etc → auto sealing

→ press the powder to ensure totally into cup/capsule

→ feed the filter paper/layer cover the coffee powder

→ auto feed foil and twice heat seal .

→ automatic output final capsule/cup

Technical parameters k cup filling Machine :

CAPCITY: 3500-3800pcs/hour

Filling volume: 0~350ml (depends on customer needs)

suggested seal by foil according to our experience

Voltage: 380V, 50Hz, 3phase(or 220 V)

Powder: 1.1kw-5kw

Air pressure: 0.5~0.75Mpa

Max air consumption: 0.45m3/m

Machine dimension: 4200x1000x1800mm

Weight: 900kg(depends on capacity speed of yours)
