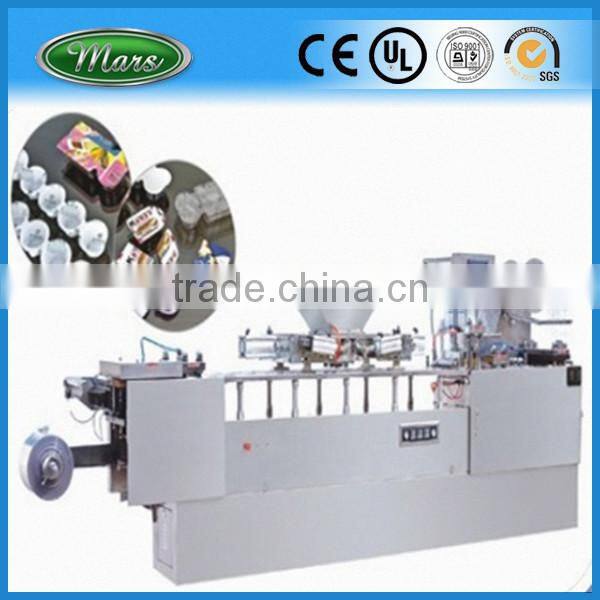

Aluminum Foil Blister Packing Machine/Blister Forming Filling Sealing Machine
Feature:
1.The machine is specially for food packaging such as chocolate, jam etc. From cup form,fill,seal,cut and product discharge automatically.
2 machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion.
3 Each box of section processed through professioral, equiipmert,to assure high precision and good exchangeability.
4 Forming, sealing, slitting etc.parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. Small oversize, save installation space.
5.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6.Stroke can be adjust freely, widely used, ease of operation, stable running.
7 .adapts up and down net pattern concavo-convex to conjugate,multi-step air cylinder, double-heat sealing. Quality sealing.
Main Technical Specification:
Cutting Frequency(times/min) |
10-30 times/min |
Max shaping areas and depth(mm) |
240X160X26 |
Stroke(mm) |
20-120(can be manufactured as user's requirements) |
Standard Sheet(mm) |
80X57(can be manufactured as user's requirements) |
Air Pressure(kw) |
0.4-0.6 |
Total power |
380V/220V 50Hz 6kw |
Pressure(kw) |
1.5 |
PVC hard pieces(mm) |
0.15-0.5X250 |
PTP Aluminum Foil(mm) |
0.02-0.035X250 |
Mould Cooling |
Tap water or Back water |
Overall Dimensions(nn) |
2710*720*1600 |
weight(kg) |
1600 |
Product show
