Home > Packaging & Printing > Packing Machinery > Filling Machine > Accumulating Bottles Table
US$ 2,000 - 2,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 0.75Kw
Place of Origin Jiangsu, China
Brand Name Mars
Model Number SPT-2
Dimension(L*W*H) 1000*1000*1100mm
Weight 100Kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

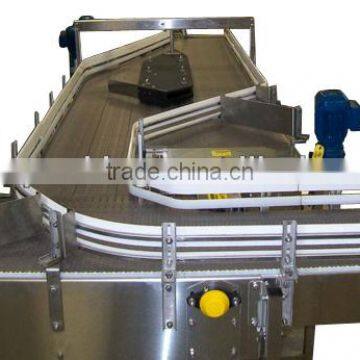

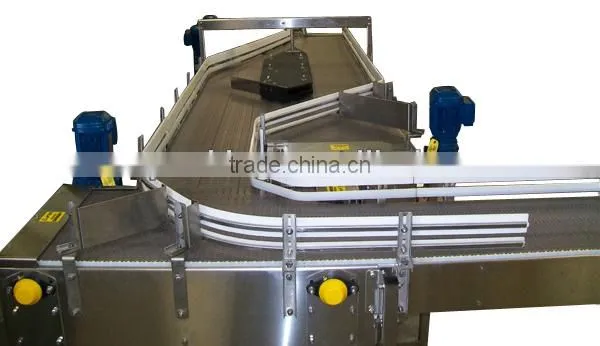

Accumulating bottle table

Accumulation tables are designed to load and or off load production onto a wider and slower moving area for mass accumulation. In the case of hot fill packaging, this allows the (typically glass) containers to be washed or cooled of en masse for further processing downstream or simply staged for pack off. These tables are made for the requirement and typically consist of multiple low friction or all stainless table-top chains. Unlike bidirectional tables used for intermittent collection, the chains on these accumulation tables move intermittently and only in one direction.



-Washdown grade motors and gear boxes, chain, and frame,
-Variable speed controller and emergency stop mounted in sealed, stainless, NEMA 4X enclosure,
-Heavy duty 12 gauge 8 high 304 stainless steel frame,
-Each chain is powered by a 1/2 hp 90vdc variable speed drive,
-Close tolerance UHMW wear strips, 3/8 thick (50% thicker than industry norm),
-High torque, lubrication free, direct drive,
-Sealed, lubrication free, composite driver bearings,
-Self articulating, 8" adjustable and lagged tripod support legs rated to 2700 lbs.
-Complete with all supporting rails and transition pieces.



Accumulating Bottles Table

Accumulating Bottles TableAccumulating Bottles TableAccumulating Bottles TableAccumulating Bottles TableAccumulating Bottles Table
